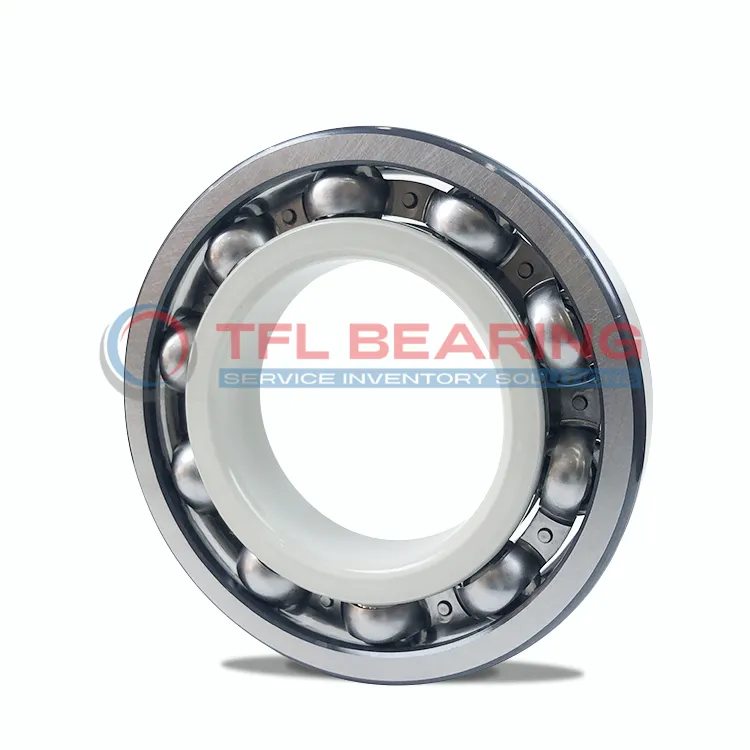

SKF INSOCOAT Bearings 6219/C3VL2071

SKF INSOCOAT Bearings 6219/C3VL2071

The SKF 6219/C3VL2071 is an INSOCOAT bearing with a 95mm bore and 170mm outer diameter, featuring an inner ring insulation coating. It handles dynamic loads up to 114 kN and spins smoothly at speeds up to 8000 RPM.

The insulating coating provides electrical resistance of 200 MΩ, protecting against current damage in electric motors. Its C3 radial clearance ensures reliable performance under varying temperatures.

With a breakdown voltage of up to 3000V, this bearing is ideal for electric motors or generators. The sheet metal cage offers durability while keeping weight manageable at 2.63kg.

Compliant with ROHS standards, it’s a safe choice for industrial applications where electrical insulation is needed. The 500µm coating thickness ensures long-term protection.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6219/C3VL2071
  • Product Category INSOCOAT Bearings
  • Insulating Coating Types Inner ring insulation coating
  • Coating Suffix VL2071
  • Manufacturers SKF
  • Bore Diameter 95.0 mm
  • Outside Diameter 170.0 mm
  • Width 32.0 mm
  • Net Weight 2.63 kg
  • Basic Dynamic Load Rating 114.0 kN
  • Basic Static Load Rating 81.5 kN
  • Reference Speed 8000.0 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 500 µm
  • Electrical Resistance 200 MΩ
  • Cage Material Sheet metal
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant
SKF INSOCOAT Bearings 6219/C3VL2071 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6219/C3VL2071 Bearing

6219/C3VL2071 Bearing features an inner ring insulation coating, making it ideal for applications requiring electrical insulation.
The coating provides a breakdown voltage of up to 3000 V, ensuring reliable performance in electrically demanding environments.

With a basic dynamic load rating of 114.0 kN, 6219/C3VL2071 Bearing handles heavy loads efficiently.
Its C3 radial internal clearance allows for thermal expansion, maintaining performance under varying temperatures.

The sheet metal cage ensures smooth operation at high speeds, up to 8000 r/min.
6219/C3VL2071 Bearing’s electrical resistance of 200 MΩ prevents current passage, enhancing safety.

Designed for durability, 6219/C3VL2071 Bearing’s insulation coating has a thickness of 500 µm.
This robust construction ensures long service life even in challenging conditions.

Application

Industrial Uses of 6219/C3VL2071 Bearing
The 6219/C3VL2071 Bearing is commonly used in electric motors and generators, where its inner ring insulation coating prevents electrical arcing. This makes it a reliable choice for industries dealing with high-voltage equipment.

In automation systems, 6219/C3VL2071 Bearing ensures smooth operation in robotic arms and conveyor belts. Its C3 radial clearance allows for better thermal expansion handling, ideal for variable-speed applications.

For wind turbines, 6219/C3VL2071 Bearing’s high dynamic load rating supports consistent performance under heavy rotational forces. The sheet metal cage adds durability, making it suitable for long-term use in harsh environments.

Where Is 6219/C3VL2071 Bearing Used?
You’ll often find 6219/C3VL2071 Bearing in industrial pumps, where its insulation coating protects against stray currents. The 500 µm layer thickness ensures long-lasting electrical resistance.

In railway applications, 6219/C3VL2071 Bearing handles high speeds and heavy loads with ease. Its C3 clearance and robust design make it a practical fit for traction motors and other critical components.

Built for Heavy-Duty Use: 6219/C3VL2071 Bearing
The 6219/C3VL2071 Bearing excels in mining equipment, where its high static load rating ensures stability under extreme conditions. The VL2071 coating suffix guarantees consistent insulation performance.

For HVAC systems, 6219/C3VL2071 Bearing’s low maintenance needs and reliable operation make it a popular choice. Its 200 MΩ electrical resistance prevents damage from electrical currents, extending service life.
