SKF INSOCOAT Bearings 6224M/C4VL2071

SKF INSOCOAT Bearings 6224M/C4VL2071

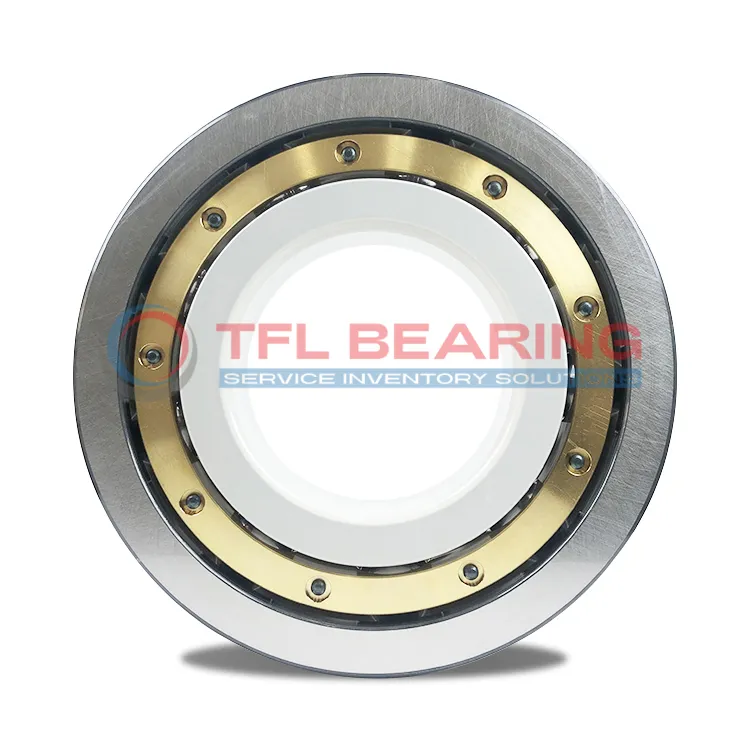

The SKF INSOCOAT bearing 6224M/C4VL2071 is a robust unit measuring 120mm by 215mm by 40mm, featuring an inner ring insulation coating for electrical protection. It handles dynamic loads up to 146 kN and spins smoothly at speeds up to 6300 RPM.

The brass cage ensures durability, while the C4 radial clearance allows for thermal expansion in demanding conditions. Its insulating coating prevents electrical arcing, with a breakdown voltage of 1000-3000V.

This model is ideal for electric motors or generators where electrical insulation is crucial. Weighing 6.4kg, it’s a solid choice for industrial applications. Compliant with RoHS standards for safe use.

The coating provides reliable resistance (50-200 MΩ), making it suitable for environments with stray currents. Its balanced design ensures long service life under heavy loads.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6224M/C4VL2071
  • Product Category INSOCOAT Bearings
  • Insulating Coating Types Inner ring insulation coating
  • Coating Suffix VL2071
  • Manufacturers SKF
  • Bore Diameter 120.0 mm
  • Outside Diameter 215.0 mm
  • Width 40.0 mm
  • Net Weight 6.4kg
  • Basic Dynamic Load Rating 146.0 kN
  • Basic Static Load Rating 118.0 kN
  • Reference Speed 6300.0 r/min
  • Breakdown Voltage (DC) 1000 ~3000 V
  • Layer Thickness 100~500 µm
  • Electrical Resistance 50~200 MΩ
  • Cage Material Brass cage
  • Radial Internal Clearance C4
  • ROHS Compliant
  • REACH Compliant

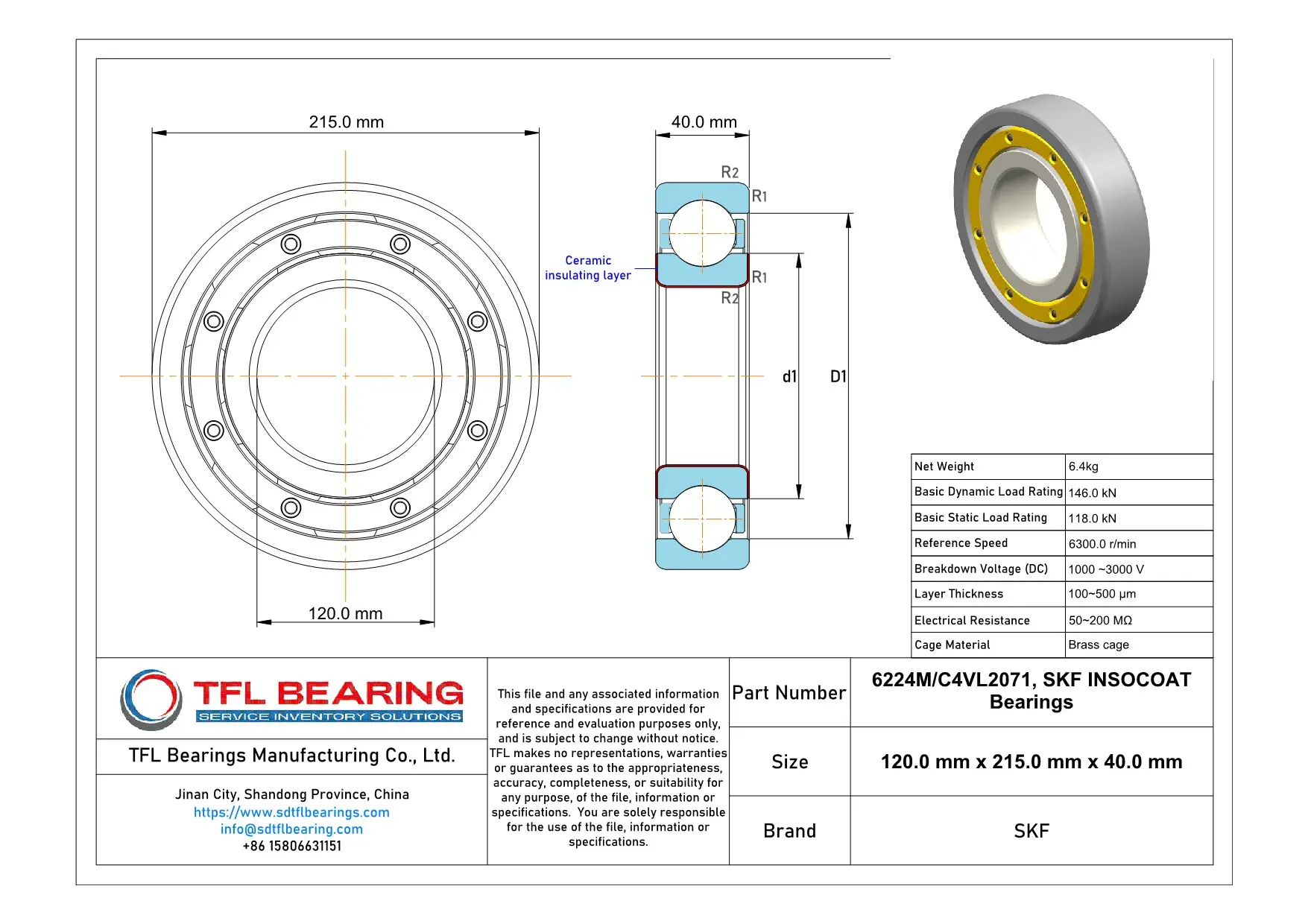

SKF INSOCOAT Bearings 6224M/C4VL2071 dimension drawing
Download DWG Download PDF

Features

How Is 6224M/C4VL2071 Bearing Engineered for Reliability?

6224M/C4VL2071 Bearing features an inner ring insulation coating, protecting against electrical damage in high-voltage environments.
The brass cage ensures smooth operation and reduces friction, even at high speeds up to 6,300 r/min.
With a basic dynamic load rating of 146 kN, it handles heavy loads reliably.
Its C4 radial internal clearance allows for thermal expansion, making it suitable for varied operating conditions.

Application

Industrial Uses of 6224M/C4VL2071 Bearing
The 6224M/C4VL2071 Bearing is commonly used in electric motors and generators, where its inner ring insulation coating prevents electrical erosion.
This makes it a reliable choice for industries dealing with high-voltage equipment.

Where Is 6224M/C4VL2071 Bearing Used?
You’ll often find 6224M/C4VL2071 Bearing in wind turbines, where its brass cage and C4 clearance handle variable loads efficiently.
Its high breakdown voltage also ensures safety in electrically demanding environments.

Perfect Fit for Automation: 6224M/C4VL2071 Bearing
In automated production lines, 6224M/C4VL2071 Bearing supports robotic arms with smooth, uninterrupted operation.
The coating’s electrical resistance minimises downtime caused by current leakage.

Medical vs Industrial: Where 6224M/C4VL2071 Bearing Excels
While 6224M/C4VL2071 Bearing isn’t typically used in medical devices, it shines in industrial settings like conveyor systems.
Its durability and insulation properties make it ideal for harsh factory conditions.

Essential Roles of 6224M/C4VL2071 Bearing
For heavy machinery requiring consistent performance, 6224M/C4VL2071 Bearing offers excellent load capacity and speed ratings.
The combination of chrome steel and brass cage ensures long service life even under stress.
