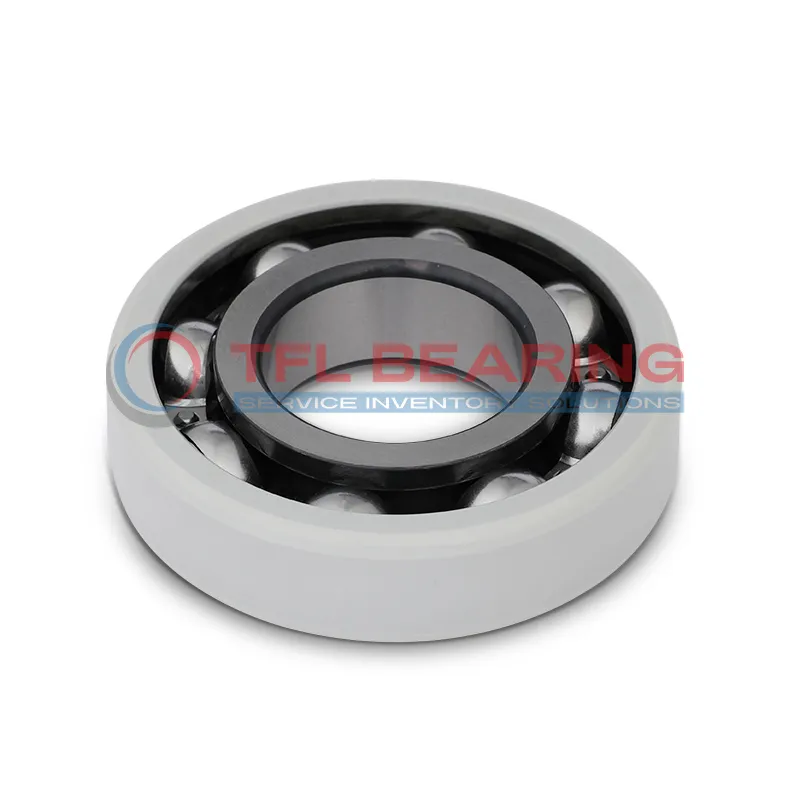

SKF INSOCOAT Bearings 6217/C3VL0241

SKF INSOCOAT Bearings 6217/C3VL0241

The SKF INSOCOAT bearing 6217/C3VL0241 measures 85mm in bore diameter, 150mm outside, and 28mm wide, with a robust insulation coating on the outer ring. It handles dynamic loads up to 87.1 kN and spins smoothly at speeds up to 9000 RPM.

Its insulating layer prevents electrical damage, with a breakdown voltage of 3000V and resistance of 200 MΩ, ideal for electric motors. The C3 clearance allows for thermal expansion, while the sheet metal cage ensures durability.

This bearing suits applications like generators or industrial drives where electrical insulation is crucial. Weighing 1.74kg, it’s a reliable choice for high-performance environments. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6217/C3VL0241
  • Product Category INSOCOAT Bearings
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix VL0241
  • Manufacturers SKF
  • Bore Diameter 85.0 mm
  • Outside Diameter 150.0 mm
  • Width 28.0 mm
  • Net Weight 1.74 kg
  • Basic Dynamic Load Rating 87.1 kN
  • Basic Static Load Rating 64.0 kN
  • Reference Speed 9000.0 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 500 µm
  • Electrical Resistance 200 MΩ
  • Cage Material Sheet metal
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant
SKF INSOCOAT Bearings 6217/C3VL0241 dimension drawing
Download DWG Download PDF

Features

What Makes 6217/C3VL0241 Bearing Suitable for High-Temperature Applications?

6217/C3VL0241 Bearing features an insulating coating on the outer ring, providing protection against electrical currents.
This design ensures reliable operation in high-temperature environments, maintaining performance under stress.

The sheet metal cage keeps the components aligned, reducing friction and wear.
With a breakdown voltage of up to 3000 V, it is ideal for applications requiring electrical insulation.

6217/C3VL0241 Bearing has a dynamic load rating of 87.1 kN, offering durability in demanding conditions.
Its C3 radial internal clearance allows for thermal expansion, ensuring smooth operation.

The bearing’s reference speed of 9000 r/min makes it suitable for high-speed applications.
Its electrical resistance of 200 MΩ further enhances its reliability in electrically challenging environments.

Application

Industrial Uses of 6217/C3VL0241 Bearing
The 6217/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage. Its C3 clearance ensures reliable performance in high-temperature industrial environments.

What Makes 6217/C3VL0241 Bearing a Preferred Choice?
With a breakdown voltage of up to 3000 V, 6217/C3VL0241 Bearing is ideal for wind turbines and other renewable energy applications. The sheet metal cage offers durability while maintaining smooth rotation.

Perfect Fit for Automation: 6217/C3VL0241 Bearing
In robotic systems, 6217/C3VL0241 Bearing handles moderate radial loads with ease, thanks to its balanced design. The 28 mm width makes it suitable for compact spaces in automated machinery.

Medical vs Industrial: Where 6217/C3VL0241 Bearing Excels
While not typically used in medical devices, 6217/C3VL0241 Bearing shines in industrial settings like conveyor systems. Its insulation coating protects against stray currents in sensitive equipment.

Essential Roles of 6217/C3VL0241 Bearing
For household appliances like washing machines, 6217/C3VL0241 Bearing provides quiet operation and long service life. The 150 mm outer diameter offers stability for rotating components.
