FAG Current-Insulated Single Row Cylindrical Roller Bearing NU1017-XL-M1-F1-J20AA-C3

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU1017-XL-M1-F1-J20AA-C3

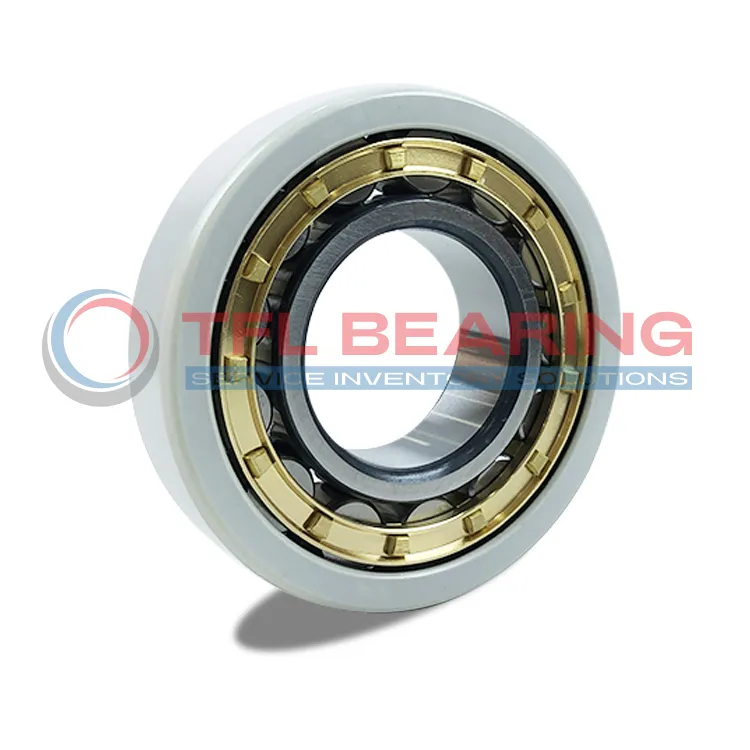

The FAG NU1017-XL-M1-F1-J20AA-C3 is a current-insulated cylindrical roller bearing with dimensions of 85mm bore, 130mm outer diameter, and 22mm width. Its outer ring features a ceramic coating for electrical insulation, preventing current damage.

This bearing handles dynamic loads up to 93 kN and static loads of 103 kN, with a reference speed of 4750 RPM. The brass cage ensures durability and smooth operation under demanding conditions.

The J20AA coating provides insulation with a breakdown voltage of up to 1000V, making it ideal for electric motors or generators. Its C3 radial clearance allows for thermal expansion in high-temperature environments.

Weighing 1.05kg, it’s suitable for industrial applications where electrical insulation is crucial. Compliant with RoHS and REACH standards for safe use across various sectors.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU1017-XL-M1-F1-J20AA-C3
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 85.0 mm
  • Outside Diameter 130.0 mm
  • Width 22.0 mm
  • Net Weight 1.05 kg
  • Basic Dynamic Load Rating 93 kN
  • Basic Static Load Rating 103 kN
  • Reference Speed 4750r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material M - Brass Cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

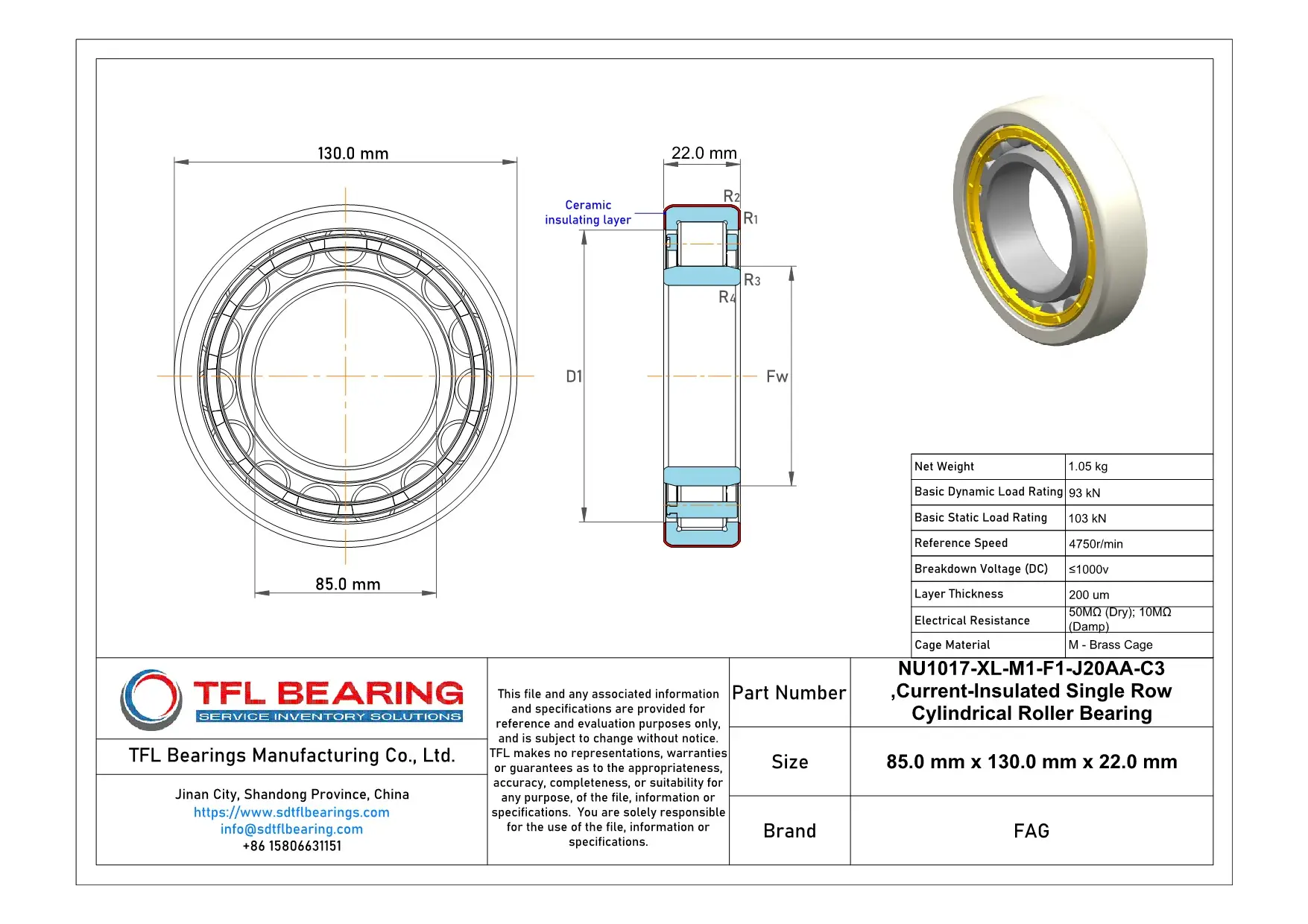

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU1017-XL-M1-F1-J20AA-C3 dimension drawing
Download DWG Download PDF

Features

How Does NU1017-XL-M1-F1-J20AA-C3 Bearing Resist Electrical Current?

NU1017-XL-M1-F1-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
The coating offers a breakdown voltage of up to 1000V, making it suitable for applications with electrical interference.

Its brass cage ensures smooth operation and reduces friction, even under high loads.
With a dynamic load rating of 93 kN, NU1017-XL-M1-F1-J20AA-C3 Bearing delivers reliable performance in demanding conditions.

The bearing maintains electrical resistance of 50MΩ when dry and 10MΩ in damp environments.
This makes NU1017-XL-M1-F1-J20AA-C3 Bearing a durable choice for industrial applications.

Application

Industrial Uses of NU1017-XL-M1-F1-J20AA-C3 Bearing
NU1017-XL-M1-F1-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical arcing. The brass cage ensures smooth operation even under high rotational speeds.

What Makes NU1017-XL-M1-F1-J20AA-C3 Bearing a Preferred Choice?
In wind turbines, NU1017-XL-M1-F1-J20AA-C3 Bearing handles radial loads efficiently while its ceramic coating protects against stray currents. Its C3 clearance allows for thermal expansion in demanding environments.

Built for Heavy-Duty Use: NU1017-XL-M1-F1-J20AA-C3 Bearing
NU1017-XL-M1-F1-J20AA-C3 Bearing works well in industrial gearboxes, where its high dynamic load rating ensures longevity. The ceramic outer ring coating also resists wear in harsh conditions.

Automotive vs Aerospace: Applications of NU1017-XL-M1-F1-J20AA-C3 Bearing
In automotive applications, NU1017-XL-M1-F1-J20AA-C3 Bearing supports alternators and starter motors with reliable insulation. For aerospace, its lightweight design and high-speed capability make it suitable for auxiliary power units.

Perfect Fit for Automation: NU1017-XL-M1-F1-J20AA-C3 Bearing
NU1017-XL-M1-F1-J20AA-C3 Bearing is ideal for robotic arms in automated production lines, where precision and electrical insulation are key. The brass cage reduces friction, enhancing performance in repetitive motions.
