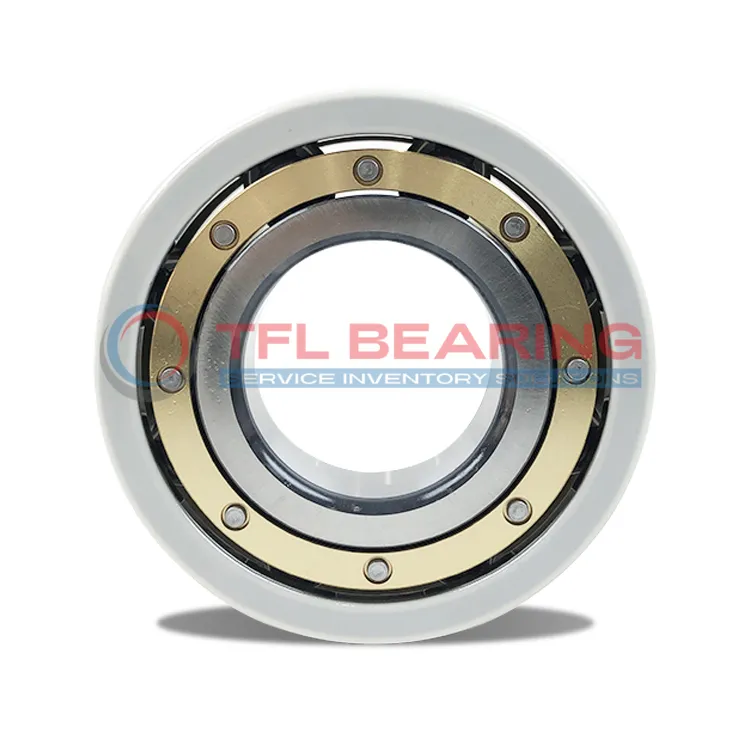

SKF INSOCOAT Bearings 6212M/C4VL0241

SKF INSOCOAT Bearings 6212M/C4VL0241

The SKF 6212M/C4VL0241 is an INSOCOAT bearing with a 60mm bore and 110mm outer diameter, featuring a protective insulation coating on the outer ring. It handles dynamic loads up to 57kN and spins smoothly at speeds up to 13000 RPM.

Its brass cage ensures durability, while the C4 radial clearance allows for thermal expansion in demanding conditions. The insulation coating prevents electrical arcing, with a breakdown voltage of up to 3000V.

This bearing is ideal for electric motors or generators where electrical insulation is needed. Its compact 22mm width and 0.954kg weight make it easy to fit into various setups.

Compliant with ROHS standards, it’s a reliable choice for industrial applications requiring both mechanical and electrical performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6212M/C4VL0241
  • Product Category INSOCOAT Bearings
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix VL0241
  • Manufacturers SKF
  • Bore Diameter 60.0 mm
  • Outside Diameter 110.0 mm
  • Width 22.0 mm
  • Net Weight 0.954 kg
  • Basic Dynamic Load Rating 57.0 kN
  • Basic Static Load Rating 36.5 kN
  • Reference Speed 13000 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 500 µm
  • Electrical Resistance 200 MΩ
  • Cage Material Brass cage
  • Radial Internal Clearance C4
  • ROHS Compliant
  • REACH Compliant
SKF INSOCOAT Bearings 6212M/C4VL0241 dimension drawing
Download DWG Download PDF

Features

Why Choose 6212M/C4VL0241 Bearing for Precision Tasks?

6212M/C4VL0241 Bearing features an insulation coating on the outer ring, protecting against electrical currents.
Its brass cage ensures smooth operation, even at high speeds up to 13,000 r/min.
The bearing’s basic dynamic load rating of 57.0 kN makes it suitable for demanding applications.
With a breakdown voltage of ≤3000 V, it is ideal for environments with electrical interference.

Application

Industrial Uses of 6212M/C4VL0241 Bearing
This bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents. The brass cage ensures smooth operation even at high speeds.

Where Is 6212M/C4VL0241 Bearing Used?
You’ll find it in industrial fans and pumps, where the C4 clearance helps handle thermal expansion. Its high breakdown voltage makes it reliable in electrically harsh environments.

Perfect Fit for Automation: 6212M/C4VL0241 Bearing
In robotic systems, this bearing’s stability and insulation are key for precision movements. The 13000 r/min speed rating suits high-performance applications.

Medical vs Industrial: Where 6212M/C4VL0241 Bearing Excels
While not typically used in medical devices, it shines in industrial settings like conveyor systems. The coating resists electrical arcing, prolonging service life.

How Does 6212M/C4VL0241 Bearing Support High-Speed Operations?
Its balanced design and brass cage reduce friction, ideal for spindle applications. The 57 kN dynamic load rating handles demanding conditions with ease.
