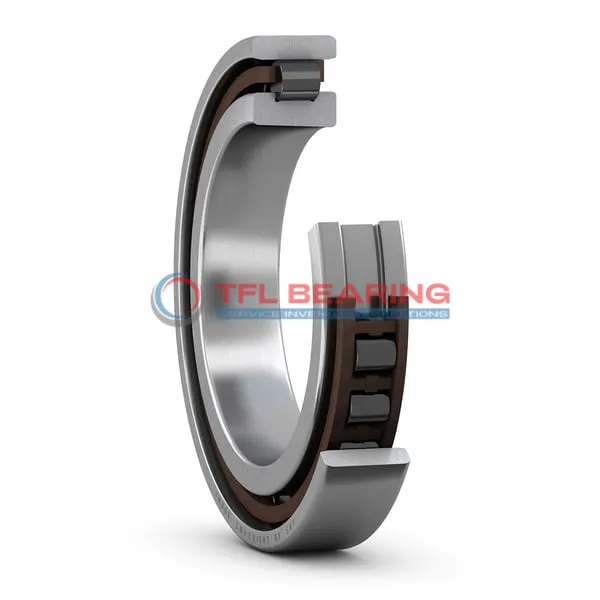

Single Row Super-Precision Cylindrical Roller Bearings N 1009 KPHA/SP

Single Row Super-Precision Cylindrical Roller Bearings N 1009 KPHA/SP

The N 1009 KPHA/SP is a single-row cylindrical roller bearing with a 45mm bore and 75mm outer diameter, crafted from high-quality chrome steel. It handles combined loads up to 6075 lbf and reaches speeds of 34000 RPM, making it suitable for demanding applications.

Its PEEK cage, centred on the outer ring, ensures smooth operation and durability. The open design allows for easy lubrication with grease or oil, and it performs well in temperatures from -30°C to 110°C.

With a tapered bore for secure fitting, this bearing is interchangeable with SKF models, offering flexibility for replacements. Ideal for precision machinery like spindles or high-speed tools where accuracy and reliability are key.

Weighing just 0.24kg, it’s a lightweight yet robust choice for industrial use. Compliant with RoHS and REACH standards, it meets stringent safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number N 1009 KPHA/SP
  • Size 45 mm x 75 mm x 16 mm
  • Brand TFL
  • Interchangeable Brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 45 mm
  • Bore Dia Tolerance 0 to +0.012mm
  • Outer Dia 75 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Shoulder Dia Of Inner Ring 56.3 mm
  • Raceway Diameter Outer Ring 67.5 mm
  • Chamfer Dimension Outer Ring(r1,2)(min.) 1 mm
  • Chamfer Dimension Inner Ring(r3,4)(min.) 0.6 mm
  • Permissible Axial Displacement(max.) 2 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PEEK cage, outer ring centred
  • Dynamic Radial Load 6075 lbf
  • Static Radial Load 6750 lbf
  • Max Speed 34000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.24 kg

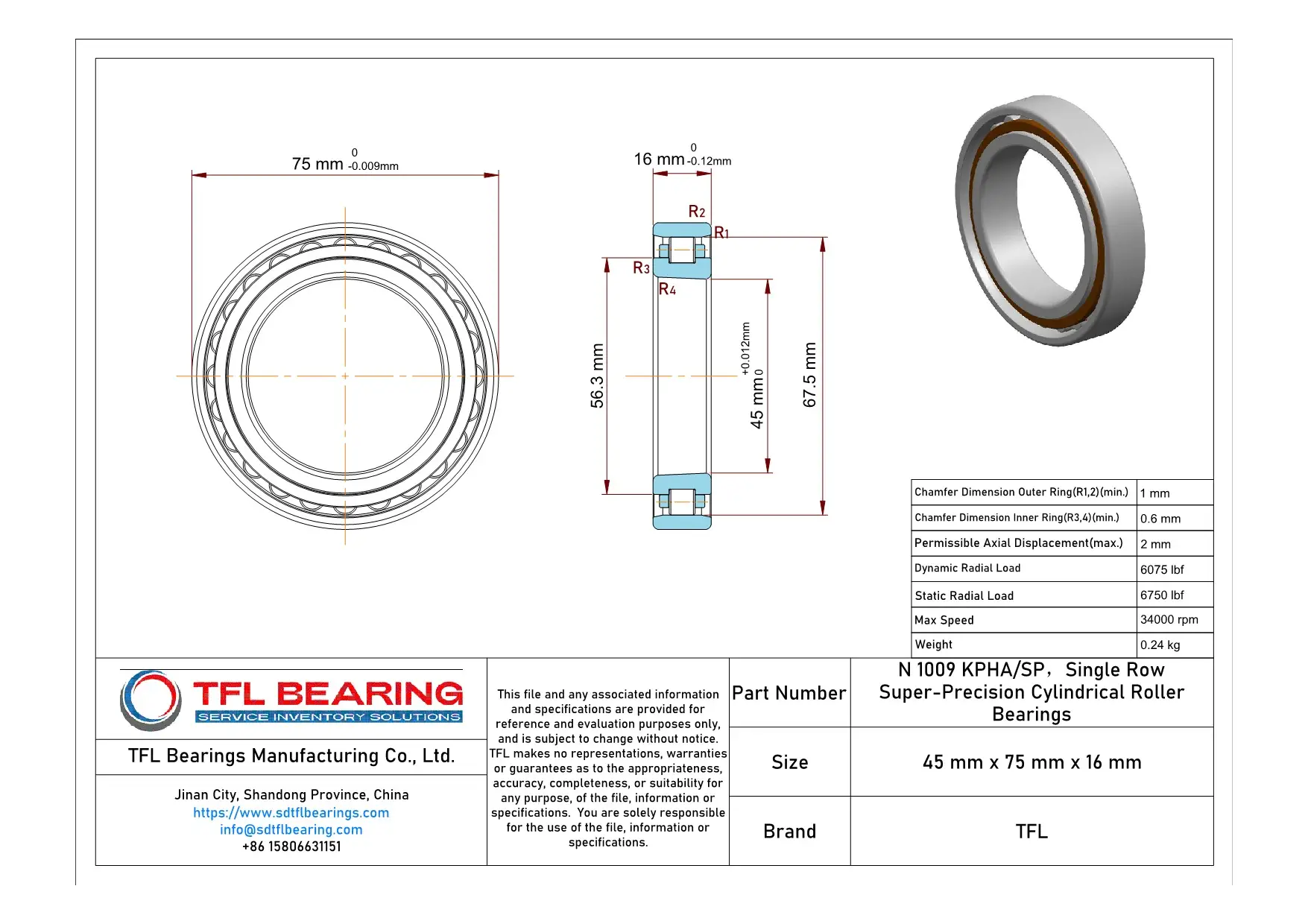

Single Row Super-Precision Cylindrical Roller Bearings N 1009 KPHA/SP dimension drawing
