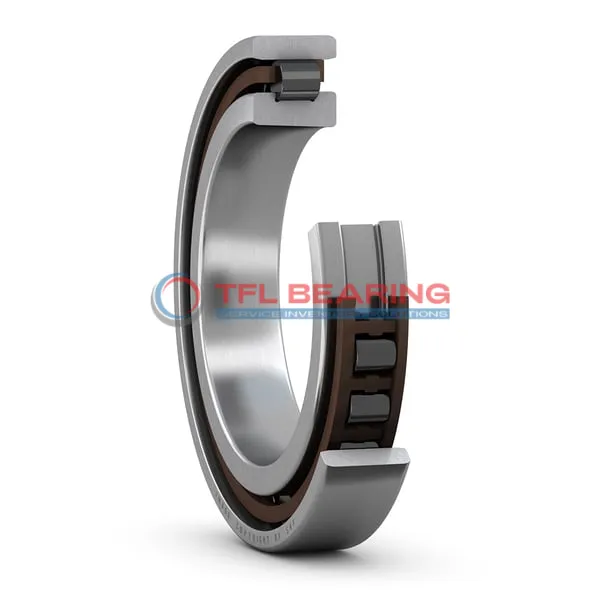

Single Row Super-Precision Cylindrical Roller Bearings N 1013 KTNHA/HC5SP

Single Row Super-Precision Cylindrical Roller Bearings N 1013 KTNHA/HC5SP

The N 1013 KTNHA/HC5SP is a single-row cylindrical roller bearing with a 65mm tapered bore and 100mm outer diameter, crafted from high-quality chrome steel. It handles combined loads up to 9900 lbf and reaches speeds of 22000 RPM, making it suitable for demanding applications.

Its PEEK cage and silicon nitride rollers ensure smooth operation and durability, even under high stress. The open design allows for easy lubrication with grease or oil, and it performs well in temperatures from -30°C to 110°C.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for precision machinery like spindles or high-speed tools where accuracy and performance are key.

Weighing just 0.39kg, it’s lightweight yet robust, and complies with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number N 1013 KTNHA/HC5SP
  • Size 65 mm x 100 mm x 18 mm
  • Brand TFL
  • Interchangeable Brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 65 mm
  • Bore Dia Tolerance 0 to +0.015mm
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.010mm to 0
  • Width 18 mm
  • Width Tolerance -0.15mm to 0
  • Shoulder Dia Of Inner Ring 78.2 mm
  • Raceway Diameter Outer Ring 91 mm
  • Chamfer Dimension Outer Ring(r1,2)(min.) 1.1 mm
  • Chamfer Dimension Inner Ring(r3,4)(min.) 0.6 mm
  • Permissible Axial Displacement(max.) 2.5 mm
  • Ring Material Chrome Steel
  • Roller Material Si3N4
  • Cage Material PEEK cage, outer ring centred
  • Dynamic Radial Load 9900 lbf
  • Static Radial Load 12600 lbf
  • Max Speed 22000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.39 kg

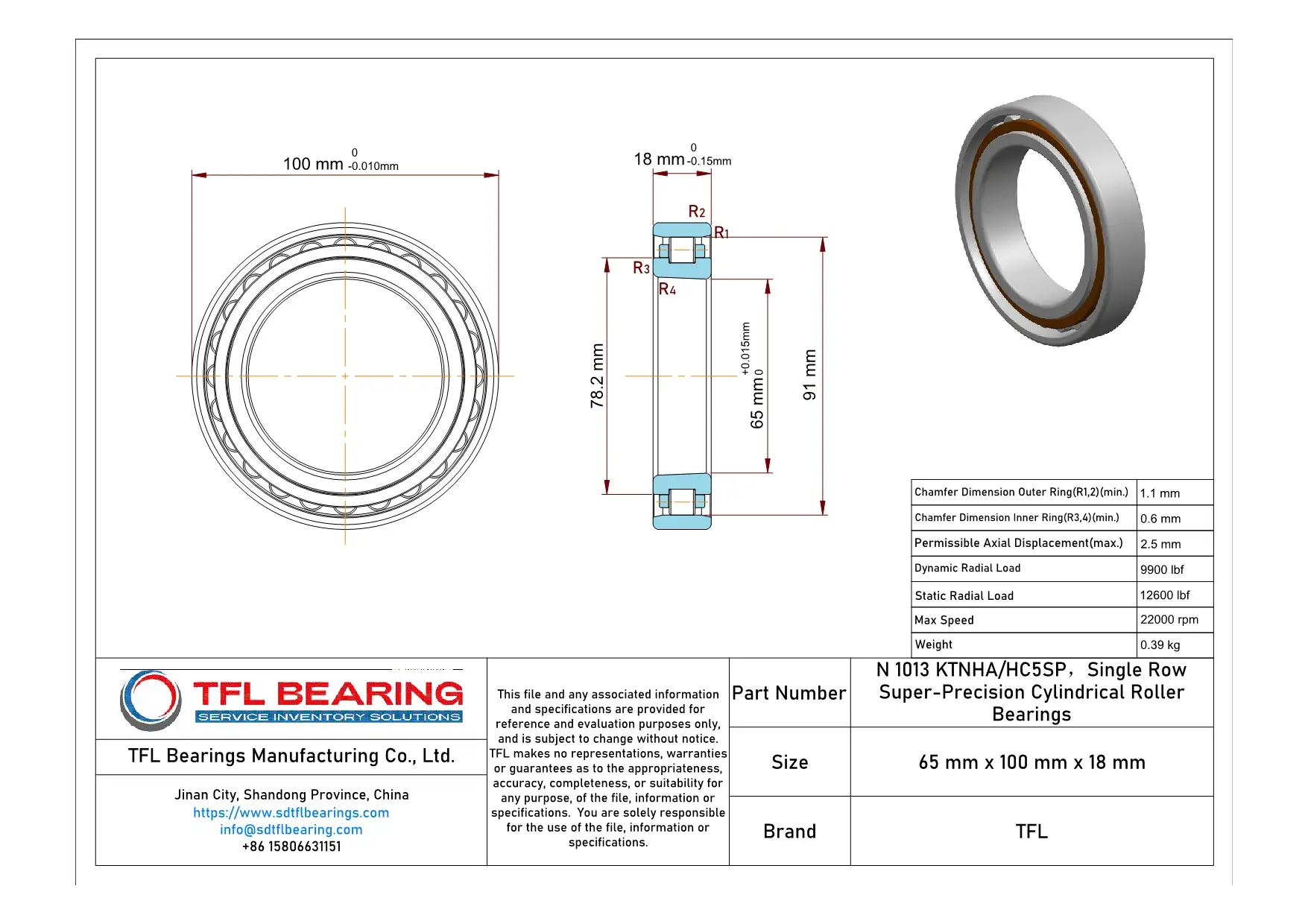

Single Row Super-Precision Cylindrical Roller Bearings N 1013 KTNHA/HC5SP dimension drawing
Download DWG Download PDF

Features

Performance Features of N 1013 KTNHA/HC5SP Bearing

N 1013 KTNHA/HC5SP Bearing is built with chrome steel rings and Si3N4 rollers, offering high precision and durability.
Its dynamic radial load capacity of 9900 lbf ensures reliable performance under combined loads.

The PEEK cage, centred on the outer ring, maintains roller alignment for smooth operation.
With a maximum speed of 22,000 rpm, it excels in high-speed applications.

N 1013 KTNHA/HC5SP Bearing operates efficiently in temperatures from -30° to 110°C.
Its tapered bore design simplifies installation and enhances stability.

The open seal type allows for easy lubrication with grease or oil.
This design reduces maintenance needs while ensuring long service life.

Application

Industrial Uses of N 1013 KTNHA/HC5SP Bearing
N 1013 KTNHA/HC5SP Bearing is commonly used in high-speed machine tools, where its cylindrical roller design ensures precise radial load handling. The PEEK cage and Si3N4 rollers reduce friction, making it ideal for demanding industrial environments.

In automotive applications, N 1013 KTNHA/HC5SP Bearing supports gearbox systems, providing smooth operation under combined loads. Its tapered bore design allows for easy installation and secure fit in various vehicle models.

For medical imaging devices, N 1013 KTNHA/HC5SP Bearing’s chrome steel construction offers reliable performance in high-precision scenarios. The open seal type facilitates maintenance, ensuring long-term durability in critical equipment.

In robotics, N 1013 KTNHA/HC5SP Bearing enhances the performance of robotic arms, thanks to its high-speed capability and low friction. The lightweight design also contributes to energy efficiency in automated systems.

For consumer electronics like printers, N 1013 KTNHA/HC5SP Bearing ensures quiet and smooth operation. Its compact size and high load capacity make it a versatile choice for small yet demanding applications.
