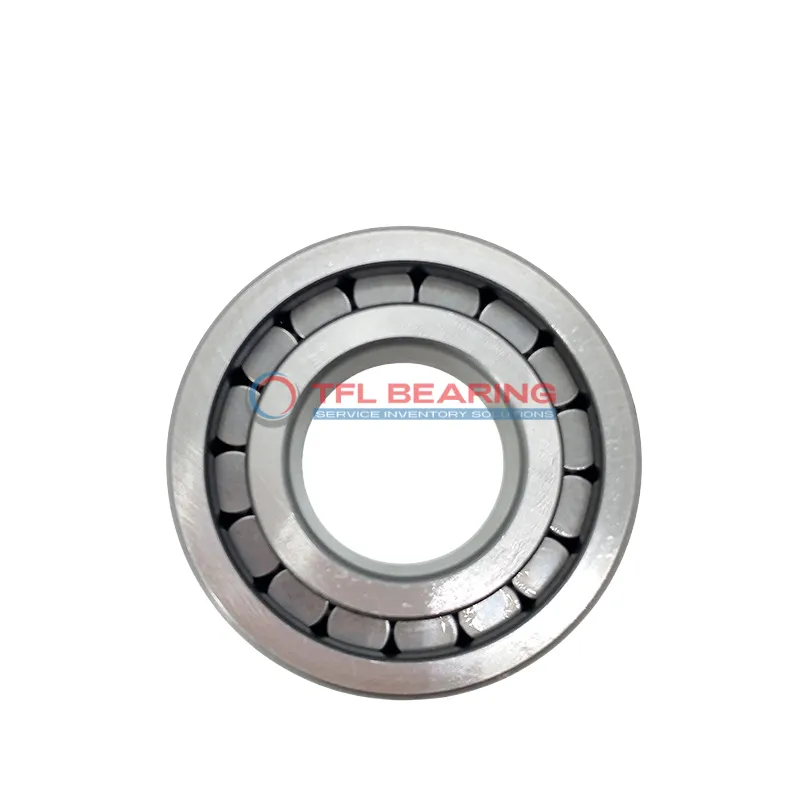

Single Row Full Complement Cylindrical Roller Bearings NCF 3008 CV

Single Row Full Complement Cylindrical Roller Bearings NCF 3008 CV

The NCF 3008 CV is a single row cylindrical roller bearing with a 40mm bore and 68mm outer diameter, crafted from sturdy chrome steel. It supports combined loads up to 12870 lbf and runs smoothly at speeds up to 6000 RPM.

Its full complement design eliminates the need for a cage, offering higher load capacity and durability. The open seal allows easy lubrication with grease or oil, suitable for temperatures from -30°C to 110°C.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for heavy-duty applications like gearboxes or industrial machinery where high radial loads are common.

Weighing 0.31kg, it balances strength and compactness. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 3008 CV
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 68 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 21 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 50 mm
  • Shoulder Dia Outer Ring 58 mm
  • Raceway Diameter Outer Ring 61.74 mm
  • Chamfer Dimension r1,2(min.) 1 mm
  • Chamfer Dimension r3,4(min.) 0.3 mm
  • Permissible Axial Displacement(max.) 2 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 12870 lbf
  • Static Radial Load 15638 lbf
  • Max Speed 6000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.31 kg
Single Row Full Complement Cylindrical Roller Bearings NCF 3008 CV dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 3008 CV Bearing

NCF 3008 CV Bearing is built with a full complement of chrome steel rollers, offering high load capacity without a cage.
This design enhances its dynamic radial load capacity up to 12870 lbf, making it suitable for heavy-duty applications.

The single-row cylindrical construction ensures smooth operation under combined loads, both radial and axial.
With a maximum speed of 6000 rpm, it maintains efficiency without compromising durability.

NCF 3008 CV Bearing operates reliably in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise tolerances and chrome steel materials ensure long service life even in demanding conditions.
Its robust construction makes it a dependable choice for industrial machinery.

Application

Industrial Uses of NCF 3008 CV Bearing
NCF 3008 CV Bearing is commonly used in heavy machinery like conveyor systems and gearboxes, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

Where Is NCF 3008 CV Bearing Used?
In automotive applications, NCF 3008 CV Bearing fits well in transmissions and wheel hubs, thanks to its combined load capacity. The chrome steel construction ensures durability even under constant stress and high speeds.

Built for Heavy-Duty Use: NCF 3008 CV Bearing
NCF 3008 CV Bearing excels in industrial fans and pumps, where its full complement rollers provide stability. The metric dimensions make it a versatile choice for various European and Asian equipment standards.

Automotive vs Aerospace: Applications of NCF 3008 CV Bearing
In automotive systems, NCF 3008 CV Bearing supports high-load components like differentials. For aerospace, its precision and temperature tolerance make it suitable for auxiliary machinery, though not for primary flight systems.

Practical Applications of NCF 3008 CV Bearing
NCF 3008 CV Bearing is ideal for printing presses and packaging machines, where smooth operation is key. The absence of a cage allows for higher load capacity, making it reliable in continuous-use scenarios.
