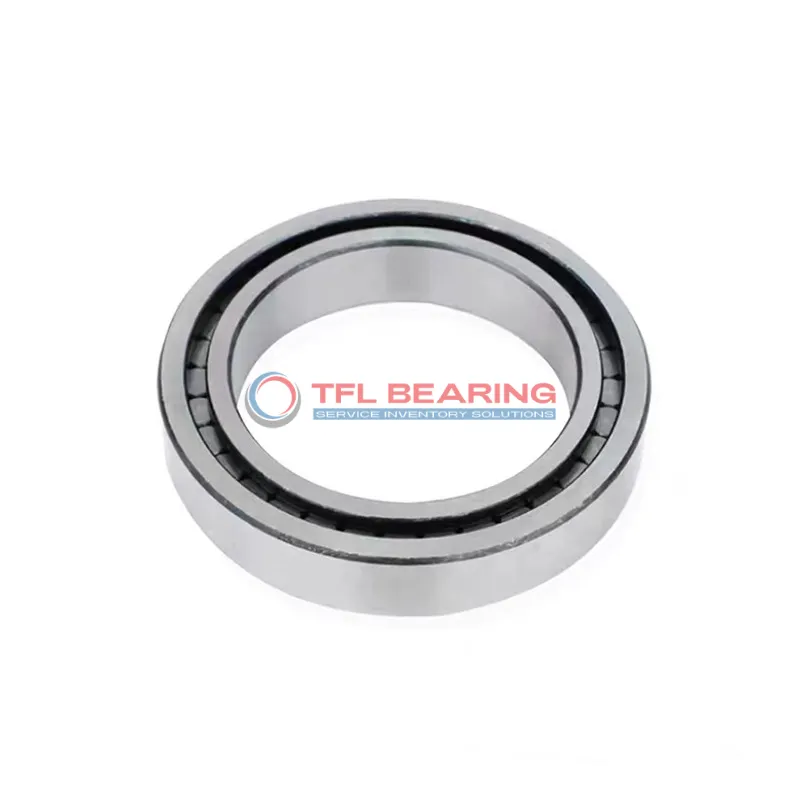

Single Row Full Complement Cylindrical Roller Bearings NCF 2915 CV

Single Row Full Complement Cylindrical Roller Bearings NCF 2915 CV

The NCF 2915 CV is a single-row cylindrical roller bearing with a 75mm bore and 105mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 17820 lbf and runs smoothly at speeds up to 4000 RPM.

Its full complement design, without a cage, maximises roller count for higher load capacity. The open seal type allows easy lubrication with grease or oil, suitable for temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy-duty applications like gearboxes or industrial machinery where radial and axial loads are present.

Weighing 0.52kg, it balances durability with manageable size. Compliant with RoHS and REACH standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 2915 CV
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 105 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.15mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 86 mm
  • Shoulder Dia Outer Ring 93 mm
  • Raceway Diameter Outer Ring 97.5 mm
  • Chamfer Dimension r1,2(min.) 1 mm
  • Chamfer Dimension r3,4(min.) 0.6 mm
  • Permissible Axial Displacement(max.) 1 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 17820 lbf
  • Static Radial Load 28125 lbf
  • Max Speed 4000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.52 kg
Single Row Full Complement Cylindrical Roller Bearings NCF 2915 CV dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 2915 CV Bearing

NCF 2915 CV Bearing is built with a full complement of chrome steel rollers, offering high load capacity without a cage.
This design ensures maximum roller count, enhancing its dynamic radial load capacity up to 17820 lbf.

The single-row cylindrical construction allows for combined load handling, making it versatile for various applications.
With a maximum speed of 4000 rpm, it balances performance and durability.

NCF 2915 CV Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design simplifies lubrication with grease or oil, reducing maintenance needs.

The precise tolerances and chrome steel materials ensure long service life.
NCF 2915 CV Bearing is ideal for heavy-duty applications requiring reliability and strength.

Application

Industrial Uses of NCF 2915 CV Bearing
NCF 2915 CV Bearing is commonly used in heavy machinery like industrial gearboxes and power transmission systems, where its full complement design handles high radial loads efficiently.
The open seal type allows for easy lubrication, making it suitable for environments where frequent maintenance is required.

Where Is NCF 2915 CV Bearing Used?
You’ll find NCF 2915 CV Bearing in automotive applications such as differential systems, where its combined load capacity ensures smooth performance.
Its metric sizing makes it a versatile choice for various vehicle designs, particularly in European and Asian markets.

Built for Heavy-Duty Use: NCF 2915 CV Bearing
NCF 2915 CV Bearing excels in construction equipment like cranes and excavators, thanks to its robust chrome steel construction.
The absence of a cage allows for more rollers, enhancing its load-bearing capacity in demanding conditions.

Automotive vs Aerospace: Applications of NCF 2915 CV Bearing
In automotive settings, NCF 2915 CV Bearing supports high-speed components like drivetrains, while in aerospace, its precision suits auxiliary systems.
The temperature range of -30° to 110 °C ensures reliability across diverse operating conditions.

Practical Applications of NCF 2915 CV Bearing
NCF 2915 CV Bearing is ideal for conveyor systems in manufacturing plants, where its durability reduces downtime.
The grease or oil lubrication options provide flexibility depending on the operational environment.
