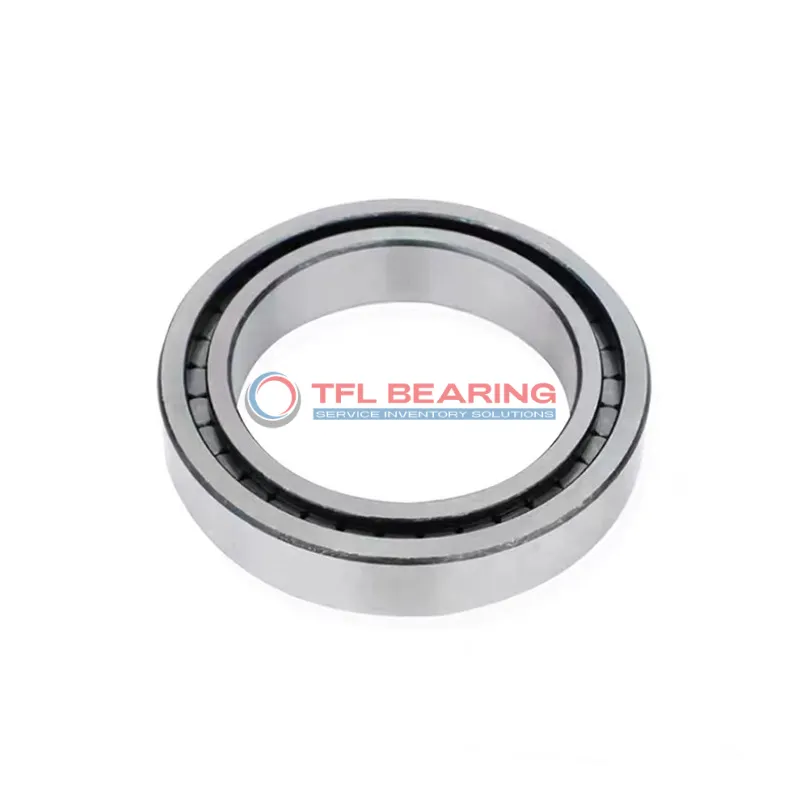

Single Row Full Complement Cylindrical Roller Bearings NCF 2914 CV

Single Row Full Complement Cylindrical Roller Bearings NCF 2914 CV

The NCF 2914 CV is a single-row cylindrical roller bearing with a 70mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 17212 lbf and operates smoothly at speeds up to 4000 RPM.

Its full complement design, without a cage, maximises load capacity while maintaining durability. The open seal type allows for easy lubrication with grease or oil.

This bearing suits applications with high radial loads and limited axial displacement, such as gearboxes or industrial machinery. It works well in temperatures from -30°C to 110°C.

Weighing 0.49kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 2914 CV
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.15mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 80.5 mm
  • Shoulder Dia Outer Ring 88.5 mm
  • Raceway Diameter Outer Ring 92.5 mm
  • Chamfer Dimension r1,2(min.) 1 mm
  • Chamfer Dimension r3,4(min.) 0.6 mm
  • Permissible Axial Displacement(max.) 1 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 17212 lbf
  • Static Radial Load 26100 lbf
  • Max Speed 4000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.49 kg
Single Row Full Complement Cylindrical Roller Bearings NCF 2914 CV dimension drawing
Download DWG Download PDF

Features

How Does NCF 2914 CV Bearing Handle Combined Loads?

NCF 2914 CV Bearing features a full complement of cylindrical rollers, providing high radial load capacity up to 17212 lbf.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.
The open design allows for easy lubrication with grease or oil, maintaining smooth operation.
With a maximum speed of 4000 rpm, it balances performance and reliability in various conditions.

Structural Advantages of NCF 2914 CV Bearing

NCF 2914 CV Bearing’s single row full complement design maximizes load distribution across all rollers.
The chrome steel rollers and rings enhance strength, supporting static radial loads up to 26100 lbf.
Its precise dimensions, including a 70 mm bore and 100 mm outer diameter, ensure a perfect fit.
The absence of a cage allows for more rollers, increasing load capacity without sacrificing performance.

Why Choose NCF 2914 CV Bearing for High-Speed Applications?

NCF 2914 CV Bearing operates smoothly at speeds up to 4000 rpm, thanks to its balanced design.
The chrome steel materials reduce friction, ensuring efficient performance under combined loads.
Its open construction facilitates easy maintenance with grease or oil lubrication.
The bearing’s temperature range of -30° to 110 °C makes it suitable for various environments.

Application

Industrial Uses of NCF 2914 CV Bearing
NCF 2914 CV Bearing is commonly used in heavy machinery like industrial gearboxes and power transmission systems, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, extending service life in demanding conditions.

In automotive applications, NCF 2914 CV Bearing fits well in wheel hubs and drivetrain components, thanks to its combined load capacity. The chrome steel construction ensures durability even under continuous stress.

For automation equipment, NCF 2914 CV Bearing provides reliable performance in robotic arms and conveyor systems. Its metric sizing makes it compatible with a variety of European and Asian machinery standards.

Medical imaging devices benefit from NCF 2914 CV Bearing’s precision and smooth operation. The absence of a cage reduces friction, making it suitable for high-speed rotations in sensitive equipment.

In household appliances like washing machines, NCF 2914 CV Bearing offers quiet and stable performance. Its grease or oil lubrication options adapt well to different environmental conditions.
