Single Row Full Complement Cylindrical Roller Bearings NCF 29/750 V

Single Row Full Complement Cylindrical Roller Bearings NCF 29/750 V

The NCF 29/750 V is a large single-row cylindrical roller bearing with a 750mm bore and 1000mm outer diameter, built for heavy loads. Made from chrome steel, it handles radial loads up to 1003500 lbf and axial displacement up to 11mm.

Its full complement design means no cage is needed, allowing more rollers for higher load capacity. The open seal type makes lubrication with grease or oil straightforward.

This bearing suits applications like industrial gearboxes or large machinery where combined loads are common. It operates well in temperatures from -30°C to 110°C.

Weighing 313kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 29/750 V
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 750 mm
  • Bore Dia Tolerance -0.075mm to 0
  • Outer Dia 1000 mm
  • Outer Dia Tolerance -0.10mm to 0
  • Width 145 mm
  • Width Tolerance -0.75mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 832 mm
  • Shoulder Dia Outer Ring 918 mm
  • Raceway Diameter Outer Ring 938 mm
  • Chamfer Dimension r1,2(min.) 6 mm
  • Permissible Axial Displacement(max.) 11 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 1003500 lbf
  • Static Radial Load 2385000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 313 kg

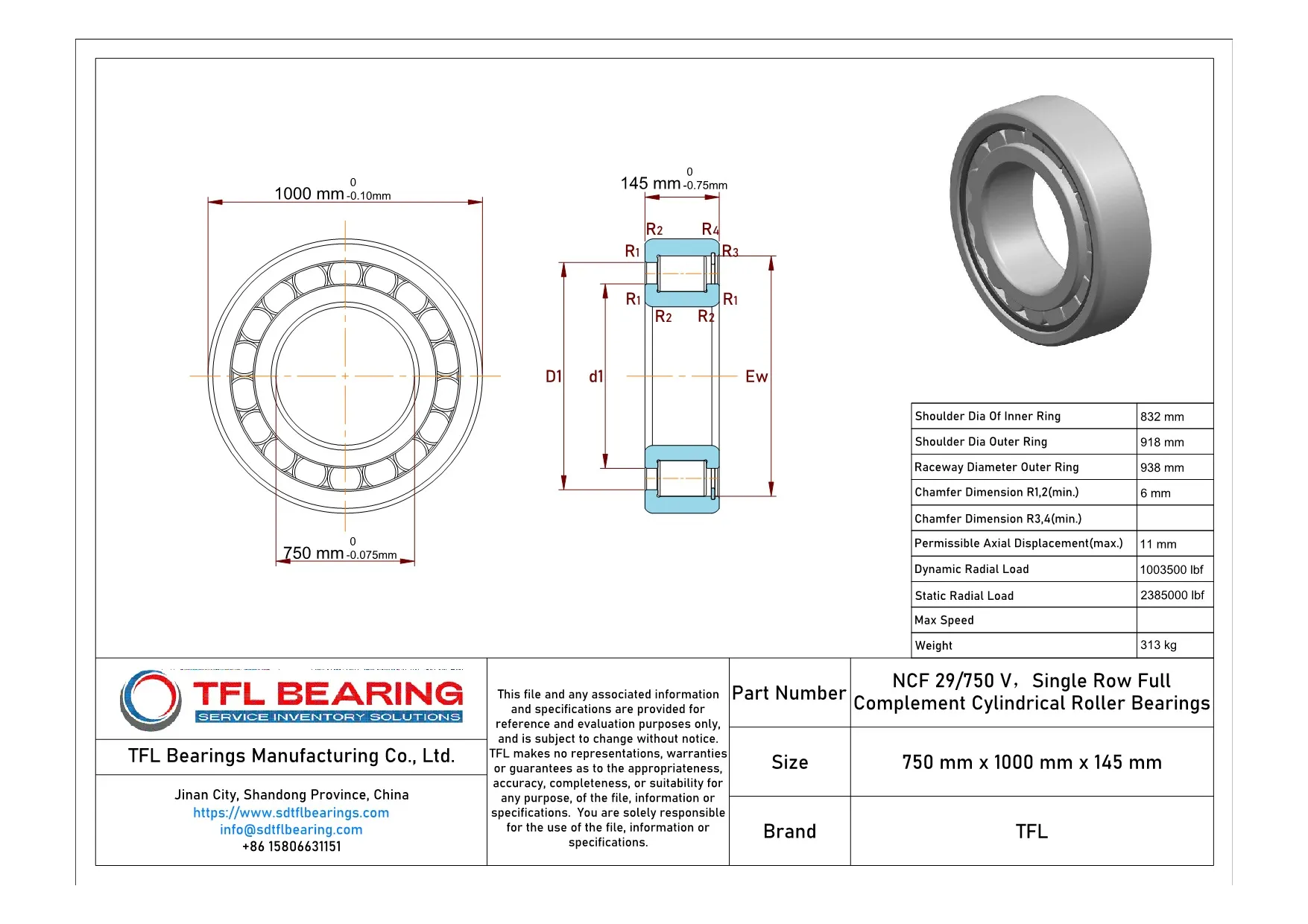

Single Row Full Complement Cylindrical Roller Bearings NCF 29/750 V dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 29/750 V Bearing

NCF 29/750 V Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 1,003,500 lbf, making it suitable for heavy-duty industrial applications.

The full complement of rollers enhances load distribution, improving durability and performance.
With a width of 145 mm, it provides stability in demanding operational conditions.

NCF 29/750 V Bearing operates effectively in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, ensuring smooth operation.

The bearing’s large bore diameter of 750 mm accommodates substantial shafts.
Precision tolerances on bore and outer diameters ensure a secure fit and reliable performance.

Application

Industrial Uses of NCF 29/750 V Bearing
NCF 29/750 V Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its full complement design handles high radial loads efficiently. The open seal type simplifies lubrication, ensuring long service life in demanding conditions.

Where Is NCF 29/750 V Bearing Used?
In wind turbine systems, NCF 29/750 V Bearing supports the main shaft, thanks to its robust chrome steel construction. Its large bore size and metric dimensions make it ideal for renewable energy applications.

Built for Heavy-Duty Use: NCF 29/750 V Bearing
NCF 29/750 V Bearing excels in mining equipment, where its combined load capacity handles both radial and axial forces. The absence of a cage allows for maximum roller count, enhancing load distribution.

Automotive vs Aerospace: Applications of NCF 29/750 V Bearing
While NCF 29/750 V Bearing is too large for most automotive uses, it’s well-suited for aerospace ground support equipment. Its grease or oil lubrication options adapt to various operational environments.

Key Fields for NCF 29/750 V Bearing
NCF 29/750 V Bearing is a reliable choice for steel production lines, particularly in roller tables and conveyors. The wide temperature range ensures performance even in extreme industrial settings.
