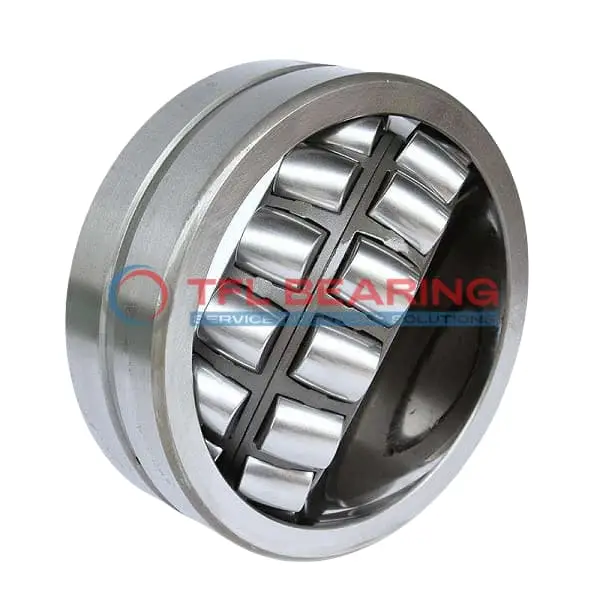

22208 CCK C3 Double Row Spherical Roller Bearing

22208 CCK C3 Double Row Spherical Roller Bearing

The 22208 CCK C3 is a double-row spherical roller bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 22144 lbf and spins smoothly at speeds up to 11000 RPM.

Its open design and lubrication groove make maintenance straightforward, while the steel cage ensures durability. The bearing operates well in temperatures from -30°C to 200°C, suitable for demanding environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy machinery or industrial equipment where high radial and axial loads are present.

Weighing 0.53kg, it balances strength and manageability. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22208 CCK C3
  • Brand TFL
  • Interchangeable SKF
  • Size 40 x 80 x 23 mm
  • Bore Dia 40 mm
  • Bore Dia Tolerance +0.025mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 23 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 49.6 mm
  • Shoulder/Recess Dia Of Outer Ring 69.4 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22144 lbf
  • Static Radial Load 20233 lbf
  • Max Speed 11000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 0.53 kg
  • Price （US$） 23.76

Features

Performance Features of 22208 CCK C3 Bearing

22208 CCK C3 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 22144 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 11000 rpm, it delivers reliable performance in high-speed environments.

22208 CCK C3 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
The steel cage maintains roller alignment, reducing wear and extending the bearing’s lifespan.

Its C3 radial clearance allows for thermal expansion, ensuring consistent performance.
The lubrication groove and holes facilitate easy maintenance, keeping the bearing running smoothly.

Application

Industrial Uses of 22208 CCK C3 Bearing
The 22208 CCK C3 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads efficiently. Its spherical rollers adapt to misalignment, making it reliable in rugged industrial environments.

Where Is 22208 CCK C3 Bearing Used?
You’ll often find 22208 CCK C3 Bearing in conveyor systems and gearboxes, where its high dynamic radial load capacity ensures long service life. The C3 radial clearance allows for thermal expansion in high-speed applications.

Built for Heavy-Duty Use: 22208 CCK C3 Bearing
22208 CCK C3 Bearing excels in mining equipment, thanks to its chrome steel construction and robust design. The tapered bore ensures a secure fit, even under intense vibration and shock loads.

Automotive vs Aerospace: Applications of 22208 CCK C3 Bearing
In automotive drivetrains, 22208 CCK C3 Bearing supports heavy loads, while in aerospace, its temperature resistance suits auxiliary systems. The steel cage provides durability in both demanding environments.

Perfect Fit for Automation: 22208 CCK C3 Bearing
22208 CCK C3 Bearing is ideal for robotic arms and automated assembly lines, where precision and load capacity matter. Its open design simplifies lubrication, ensuring smooth operation in continuous-use scenarios.
