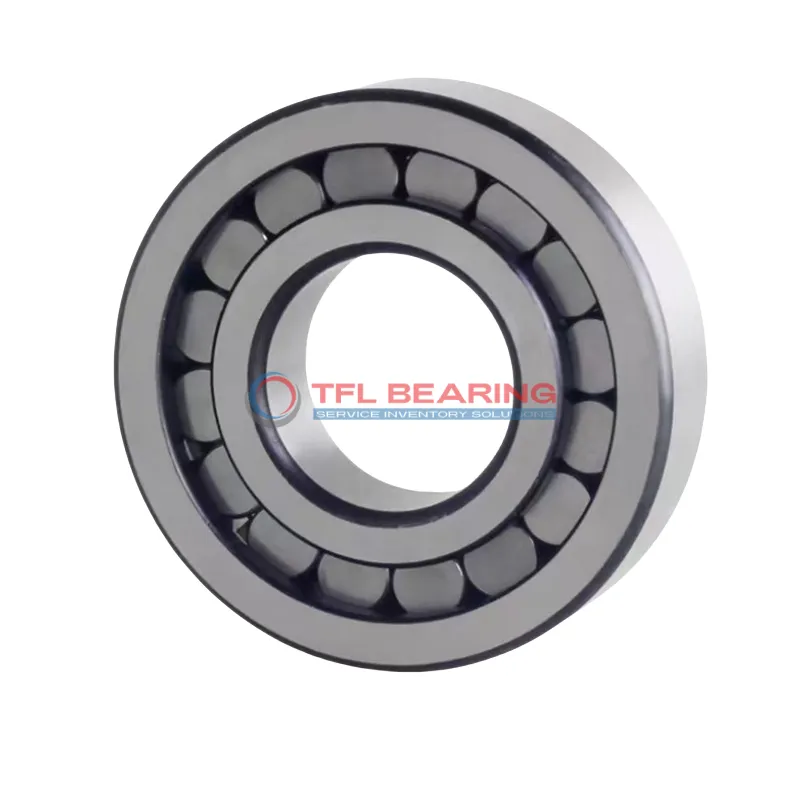

Single Row Full Complement Cylindrical Roller Bearings NCF 1876 V

Single Row Full Complement Cylindrical Roller Bearings NCF 1876 V

The NCF 1876 V is a single row full complement cylindrical roller bearing with a 380mm bore and 480mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 141075 lbf and runs smoothly at speeds up to 1000 RPM.

Its full complement design maximises load capacity, while the open structure allows easy lubrication with grease or oil. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial gearboxes or large machinery where high radial loads are present.

Weighing 19.5kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 1876 V
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 380 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 480 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 46 mm
  • Width Tolerance -0.40mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 416 mm
  • Shoulder Dia Outer Ring 448 mm
  • Raceway Diameter Outer Ring 458 mm
  • Chamfer Dimension r1,2(min.) 2.1 mm
  • Permissible Axial Displacement(max.) 3.5 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 141075 lbf
  • Static Radial Load 290250 lbf
  • Max Speed 1000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 19.5 kg
Single Row Full Complement Cylindrical Roller Bearings NCF 1876 V dimension drawing
Download DWG Download PDF

Features

How Does NCF 1876 V Bearing Handle Combined Loads?

NCF 1876 V Bearing features a full complement of chrome steel rollers, providing high load capacity for combined radial and axial loads.
Its dynamic radial load rating of 141075 lbf ensures reliable performance in heavy-duty applications.
The open design allows for easy lubrication with grease or oil, enhancing operational efficiency.
With a maximum speed of 1000 rpm, it balances durability and performance in demanding conditions.

Application

Industrial Uses of NCF 1876 V Bearing
NCF 1876 V Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.

Where Is NCF 1876 V Bearing Used?
You’ll often find NCF 1876 V Bearing in construction equipment like cranes and excavators, where its combined load capacity supports both radial and axial forces. Its chrome steel construction ensures durability even in harsh outdoor environments.

Built for Heavy-Duty Use: NCF 1876 V Bearing
NCF 1876 V Bearing excels in applications like wind turbine gearboxes, where its high dynamic radial load rating ensures reliable performance. The absence of a cage allows for more rollers, enhancing load distribution and stability.

Automotive vs Aerospace: Applications of NCF 1876 V Bearing
In automotive settings, NCF 1876 V Bearing is used in large truck transmissions, while in aerospace, it supports ground-based equipment like landing gear test rigs. Its metric sizing makes it versatile for various industrial standards.

Key Fields for NCF 1876 V Bearing
NCF 1876 V Bearing is ideal for mining equipment, such as crushers and conveyors, where its robust design withstands extreme loads. The grease or oil lubrication options adapt to different operational needs, ensuring smooth performance.
