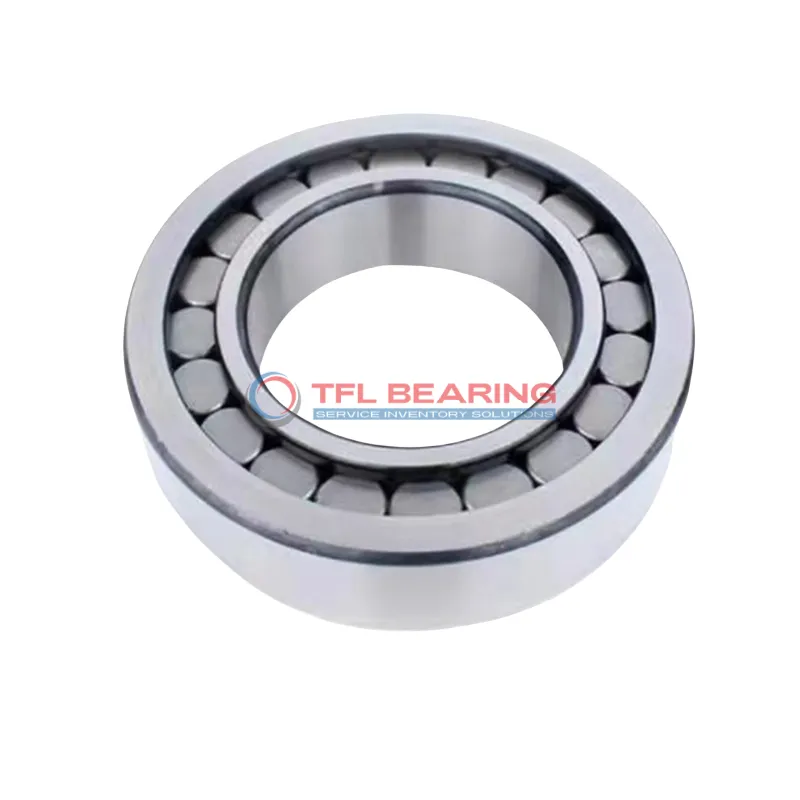

Single Row Full Complement Cylindrical Roller Bearings NCF 18/600 V

Single Row Full Complement Cylindrical Roller Bearings NCF 18/600 V

The NCF 18/600 V is a single-row cylindrical roller bearing with a large 600mm bore and 730mm outer diameter, built for heavy-duty applications. Made from chrome steel, it handles combined loads with a dynamic radial capacity of 236250 lbf.

Its full complement design eliminates the cage, allowing more rollers for higher load capacity. The open seal type simplifies lubrication, whether using grease or oil.

This bearing suits industrial machinery like large gearboxes or presses where high radial loads are common. It operates smoothly in temperatures from -30°C to 110°C.

Weighing 51.5kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 18/600 V
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 600 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 730 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 60 mm
  • Width Tolerance -0.50mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 644 mm
  • Shoulder Dia Outer Ring 684 mm
  • Raceway Diameter Outer Ring 696 mm
  • Chamfer Dimension r1,2(min.) 3 mm
  • Permissible Axial Displacement(max.) 7 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 236250 lbf
  • Static Radial Load 573750 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 51.5 kg

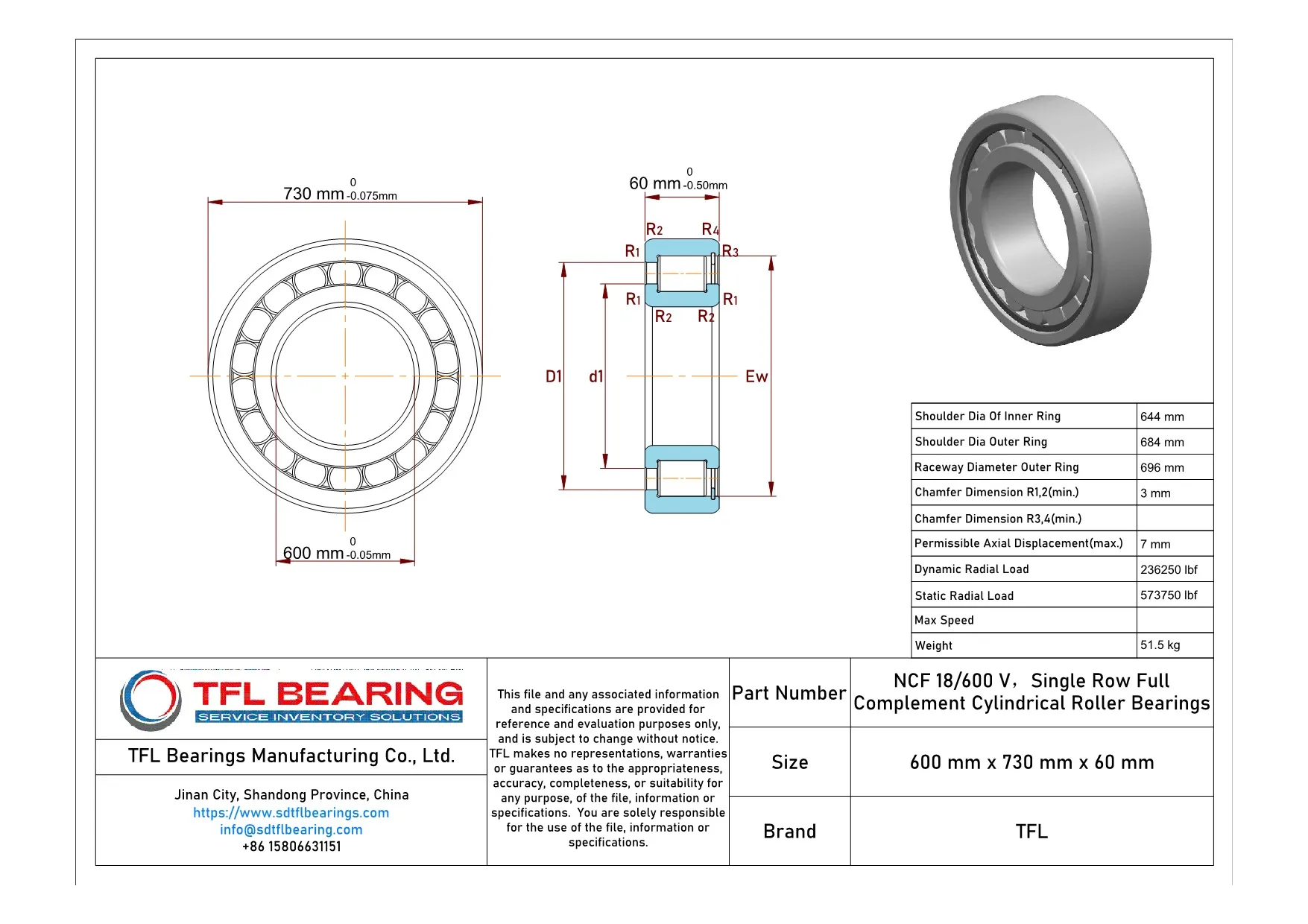

Single Row Full Complement Cylindrical Roller Bearings NCF 18/600 V dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 18/600 V Bearing

NCF 18/600 V Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 236250 lbf, making it suitable for heavy-duty applications.

The full complement of rollers enhances load distribution, improving durability and performance.
With a width of 60 mm, it provides stability in various industrial settings.

NCF 18/600 V Bearing operates effectively in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, ensuring smooth operation.

The chamfer dimensions of 3 mm facilitate easier installation and alignment.
This bearing is designed to handle significant axial displacement, up to 7 mm, without compromising performance.

Application

Industrial Uses of NCF 18/600 V Bearing
NCF 18/600 V Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.

Where Is NCF 18/600 V Bearing Used?
You’ll often find NCF 18/600 V Bearing in wind turbines and mining equipment, where its robust construction withstands extreme loads and harsh environments. The chrome steel rollers provide reliable performance even under continuous operation.

Built for Heavy-Duty Use: NCF 18/600 V Bearing
NCF 18/600 V Bearing excels in applications like steel processing plants, where its combined load capacity and durability are essential. The absence of a cage allows for maximum roller count, enhancing load distribution and stability.

Automotive vs Aerospace: Applications of NCF 18/600 V Bearing
In automotive applications, NCF 18/600 V Bearing supports large drivetrain components, while in aerospace, it’s used in ground support equipment. Its metric sizing and high load capacity make it versatile across industries.

Key Fields for NCF 18/600 V Bearing
NCF 18/600 V Bearing is ideal for paper manufacturing machinery, where its ability to handle heavy radial loads ensures smooth operation. The grease or oil lubrication options adapt to various operational needs.
