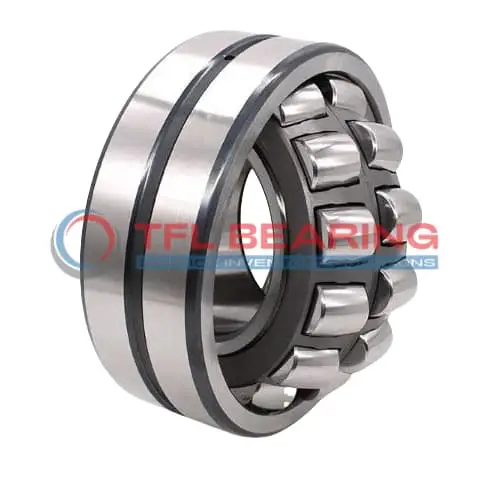

24034 CCK30/C4W33 Double Row Spherical Roller Bearing

24034 CCK30/C4W33 Double Row Spherical Roller Bearing

The 24034 CCK30/C4W33 is a double-row spherical roller bearing with a 170mm bore and 260mm outer diameter, crafted from robust chrome steel. It manages combined loads up to 216491 lbf and operates smoothly at speeds up to 2400 RPM.

Its open design and lubrication groove make maintenance straightforward, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.

Weighing 17kg, it’s built for strength and longevity. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24034 CCK30/C4W33
  • Brand TFL
  • Interchangeable SKF
  • Size 170 x 260 x 90 mm
  • Bore Dia 170 mm
  • Bore Dia Tolerance +0.025mm to 0
  • Outer Dia 260 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 90 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 188 mm
  • Shoulder/Recess Dia Of Outer Ring 226 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:30
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 216491 lbf
  • Static Radial Load 328221 lbf
  • Max Speed 2400 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C4
  • RoHs Compliant
  • REACH Compliant
  • Weight 17 kg
  • Price （US$） US$603.25

Features

Performance Features of 24034 CCK30/C4W33 Bearing

24034 CCK30/C4W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 216491 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 2400 rpm, it delivers reliable performance in various industrial settings.

24034 CCK30/C4W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
The tapered bore design simplifies installation and enhances stability during operation.

The steel cage maintains roller alignment, reducing friction and extending bearing life.
Lubrication grooves and holes ensure proper lubrication, minimising maintenance requirements.

Application

Industrial Uses of 24034 CCK30/C4W33 Bearing
The 24034 CCK30/C4W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. Its tapered bore ensures a secure fit, reducing slippage during high-load operations.

In mining equipment, 24034 CCK30/C4W33 Bearing’s robust construction withstands harsh conditions, such as dust and extreme temperatures. The C4 radial clearance allows for thermal expansion, making it reliable in fluctuating environments.

For paper mills, 24034 CCK30/C4W33 Bearing supports rollers that require smooth rotation under heavy loads. The chrome steel rollers and cage provide durability, ensuring long service life even in demanding applications.

Where Is 24034 CCK30/C4W33 Bearing Used?
You’ll often find 24034 CCK30/C4W33 Bearing in wind turbines, where its spherical rollers accommodate misalignment caused by tower flexing. The open design simplifies lubrication, which is crucial for maintenance in remote locations.

In steel plants, 24034 CCK30/C4W33 Bearing is ideal for rolling mills due to its high dynamic load capacity. The steel cage and rollers resist wear, even under continuous heavy loads and high temperatures.

Built for Heavy-Duty Use: 24034 CCK30/C4W33 Bearing
24034 CCK30/C4W33 Bearing excels in construction equipment like cranes and excavators, where its combined load handling is essential. The metric sizing ensures compatibility with a wide range of industrial machinery.

For marine applications, 24034 CCK30/C4W33 Bearing’s temperature range suits both cold and warm environments. Its lubrication grooves help maintain performance in corrosive conditions, such as saltwater exposure.

Automotive vs Aerospace: Applications of 24034 CCK30/C4W33 Bearing
In large trucks, 24034 CCK30/C4W33 Bearing supports drivetrain components, handling heavy loads with ease. Its tapered bore design simplifies installation, reducing downtime during maintenance.

For aerospace ground equipment, 24034 CCK30/C4W33 Bearing’s precision ensures smooth operation in cargo loaders and tugs. The high-speed capability makes it suitable for auxiliary machinery requiring reliable performance.
