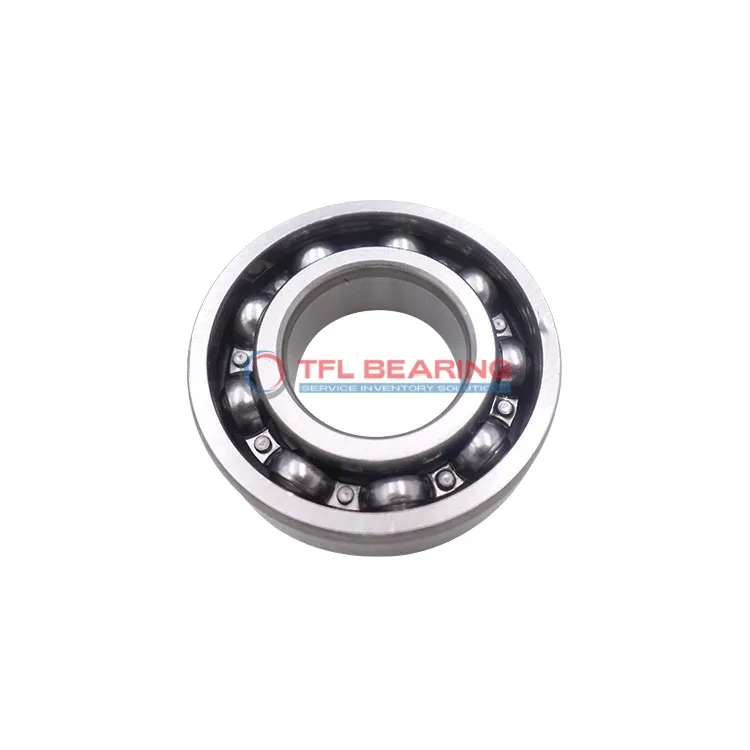

Single Row Deep Groove Ball Bearings RMS 6

Single Row Deep Groove Ball Bearings RMS 6

The RMS 6 is a compact single row deep groove ball bearing, measuring 0.75″ in bore and 2″ in outer diameter. Made from chrome steel with a stainless steel cage, it’s built to handle radial loads up to 3574 lbf.

With an open design, it allows for easy lubrication and maintenance. The bearing operates smoothly at speeds up to 19,000 RPM and works in temperatures from -30°C to 120°C.

Its precision P6 tolerance ensures reliable performance, while the CN radial clearance offers a good balance between speed and load capacity. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for applications like electric motors or small machinery where space is limited but performance is key. Weighing just 0.16kg, it’s lightweight yet durable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RMS 6
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 0.75"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 2"
  • Outer Dia Tolerance -0.00078" to -0.00031"
  • Width 0.68748"
  • Width Tolerance -0.005" to 0"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 3574 lbf
  • Static Radial Load 1754 lbf
  • Max Speed 19000 rpm
  • Weight 0.16 kg
  • price（$） 7.299
Single Row Deep Groove Ball Bearings RMS 6 dimension drawing
Download DWG Download PDF

Features

Why Choose RMS 6 Bearing for Precision Tasks?

RMS 6 Bearing features a single row deep groove design, ideal for handling radial loads with precision.
Its chrome steel rings and balls ensure durability, while the stainless steel cage maintains alignment.

With a dynamic radial load capacity of 3574 lbf, RMS 6 Bearing performs reliably in various applications.
The P6 tolerance class guarantees consistent accuracy, making it suitable for high-precision tasks.

RMS 6 Bearing operates smoothly within a temperature range of -30° to 120°C, ensuring versatility.
Its open design allows for easy lubrication, reducing maintenance needs over time.

Application

Industrial Uses of RMS 6 Bearing
RMS 6 Bearing is commonly used in industrial machinery, such as pumps and electric motors, where its single-row design handles radial loads efficiently. The chrome steel construction ensures durability in demanding environments.

What Makes RMS 6 Bearing a Preferred Choice?
In automotive applications, RMS 6 Bearing fits well in components like alternators and fans, thanks to its inch sizing and reliable performance. Its open design allows for easy lubrication, extending service life.

Perfect Fit for Automation: RMS 6 Bearing
RMS 6 Bearing works smoothly in automated systems, including conveyor belts and robotic arms, where precision and low friction are key. The stainless steel cage adds extra resistance to wear.

Medical vs Industrial: Where RMS 6 Bearing Excels
While RMS 6 Bearing is versatile in industrial settings, it also suits medical devices like lab equipment, where its consistent performance is valued. The temperature range makes it adaptable to various conditions.
