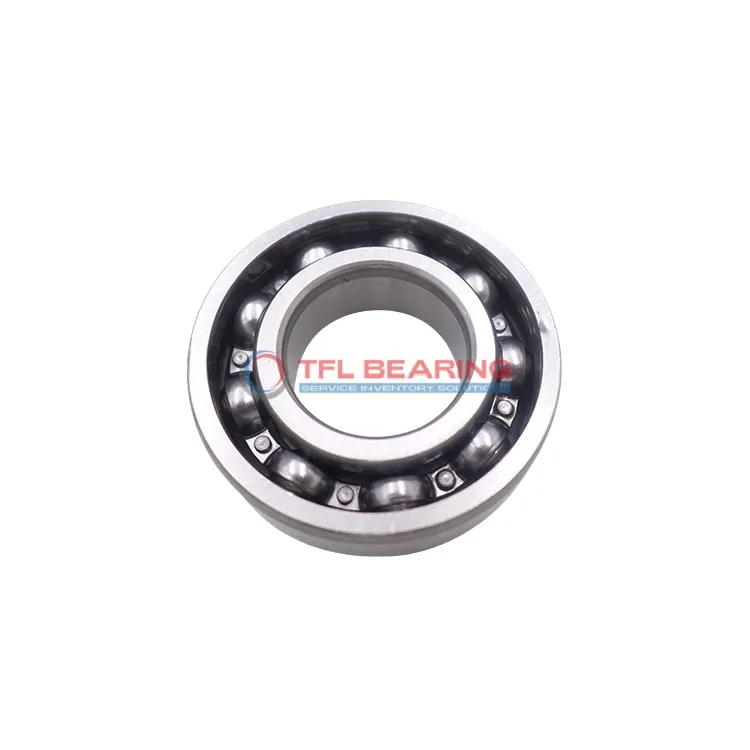

Single Row Deep Groove Ball Bearings RLS 5

Single Row Deep Groove Ball Bearings RLS 5

The RLS 5 is a single-row deep groove ball bearing with a 0.625″ bore and 1.56252″ outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2149 lbf and spins smoothly at speeds up to 24,000 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing operates reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Perfect for applications like electric motors or small machinery where radial loads are common.

Weighing just 0.066kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RLS 5
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 0.625"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 1.56252"
  • Outer Dia Tolerance -0.00078" to -0.00031"
  • Width 0.43748"
  • Width Tolerance -0.005" to 0"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 2149 lbf
  • Static Radial Load 1068 lbf
  • Max Speed 24000 rpm
  • Weight 0.066 kg
  • price（$） 4.401
Single Row Deep Groove Ball Bearings RLS 5 dimension drawing
Download DWG Download PDF

Features

How Does RLS 5 Bearing Reduce Friction?

RLS 5 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
Its chrome steel rings and balls minimise friction, ensuring efficient operation even at high speeds.

The stainless steel cage maintains ball alignment, reducing wear and extending the bearing’s lifespan.
With a maximum speed of 24,000 rpm, RLS 5 Bearing balances performance and durability effortlessly.

Its precision P6 tolerance class ensures consistent performance in various applications.
The open seal design allows for easy maintenance while maintaining reliable operation.

Application

Industrial Uses of RLS 5 Bearing
RLS 5 Bearing is commonly used in conveyor systems and small machinery, where its single-row design handles radial loads efficiently. The open seal type makes it easy to clean and relubricate for extended service life.

In automotive applications, RLS 5 Bearing fits well in electric motors and pumps, thanks to its inch sizing and chrome steel construction. It’s a reliable choice for components that need smooth rotation under moderate loads.

For home appliances like fans or power tools, RLS 5 Bearing offers quiet operation and durability. Its stainless steel cage helps reduce wear, even with frequent use.

Automation equipment benefits from RLS 5 Bearing’s precision, particularly in robotic arms and small actuators. The P6 tolerance ensures consistent performance in repetitive motions.

Medical devices such as lab instruments often use RLS 5 Bearing for its reliable radial load capacity. The temperature range suits both indoor and industrial environments.
