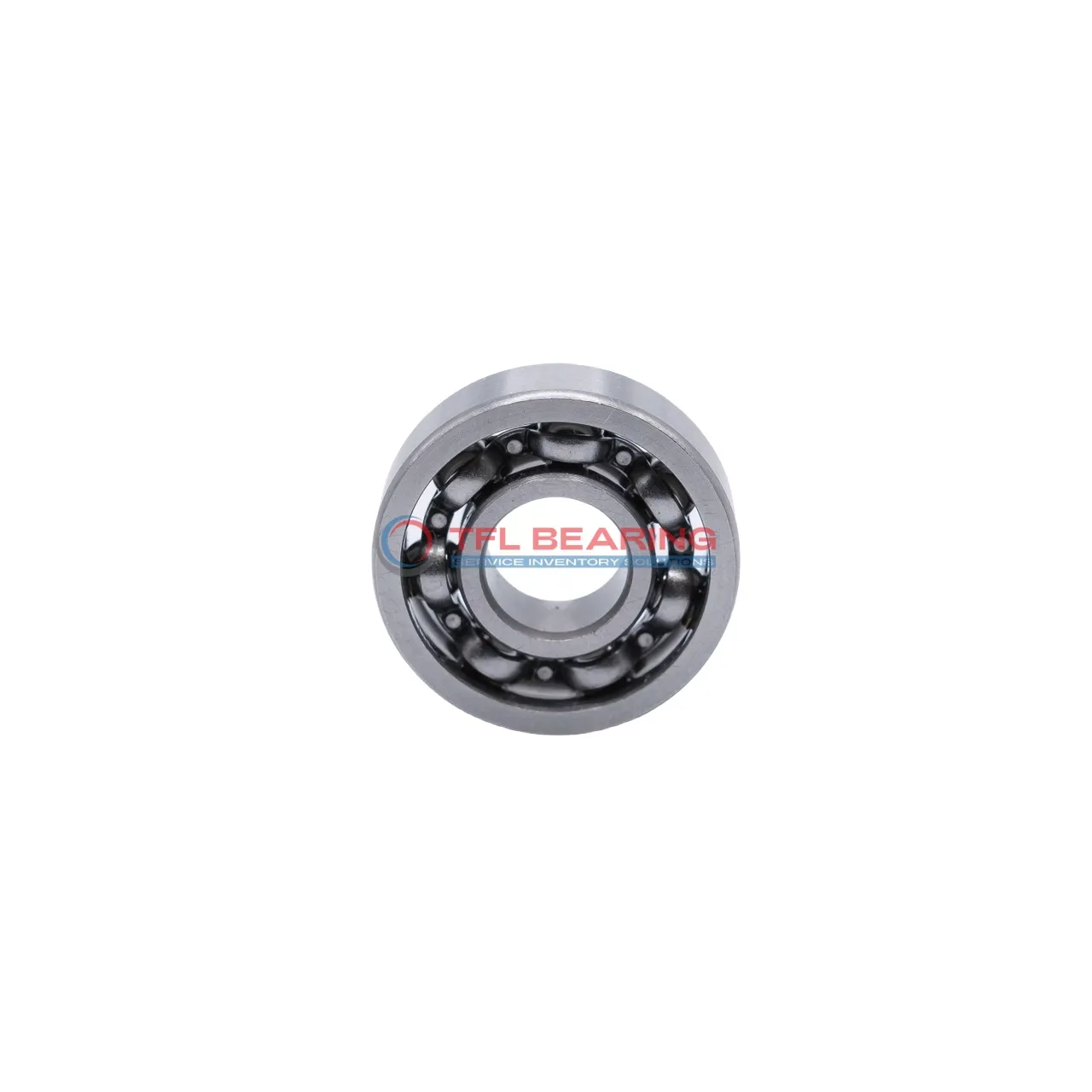

Single Row Deep Groove Ball Bearings RLS 22

Single Row Deep Groove Ball Bearings RLS 22

The RLS 22 is a single-row deep groove ball bearing with a 2.75″ bore and 5.25″ outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 14905 lbf and operates smoothly at speeds up to 6700 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like electric motors or pumps where radial loads are prevalent.

Weighing 1.38kg, it’s a robust choice for industrial use. Compliant with RoHS and REACH standards, it ensures safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RLS 22
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 2.75"
  • Bore Dia Tolerance -0.00031" to 0.00019"
  • Outer Dia 5.25"
  • Outer Dia Tolerance -0.00181" to -0.00129"
  • Width 0.93752"
  • Width Tolerance -0.005" to 0"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 14905 lbf
  • Static Radial Load 11016 lbf
  • Max Speed 6700 rpm
  • Weight 1.38 kg
Single Row Deep Groove Ball Bearings RLS 22 dimension drawing
Download DWG Download PDF

Features

Performance Features of RLS 22 Bearing

RLS 22 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 14905 lbf.
Its single-row deep groove design ensures smooth operation and efficient load distribution.
The stainless steel cage maintains ball alignment, reducing friction and extending bearing life.
With a maximum speed of 6,700 rpm, it delivers reliable performance in various applications.

Application

Industrial Uses of RLS 22 Bearing
RLS 22 Bearing is commonly used in industrial machinery like pumps and compressors, where its deep groove design handles radial loads efficiently. The chrome steel construction ensures durability in demanding environments.

In automotive applications, RLS 22 Bearing fits well in wheel hubs and transmissions, providing smooth rotation under heavy loads. Its inch sizing makes it a versatile choice for various vehicle models.

For automation systems, RLS 22 Bearing’s open design allows easy lubrication, ideal for robotic arms and conveyor belts. The stainless steel cage adds longevity, even in high-speed operations.

Where Is RLS 22 Bearing Used?
You’ll find RLS 22 Bearing in household appliances like washing machines, where its reliability keeps things running quietly. The P6 tolerance class ensures precise performance over time.

In medical devices, RLS 22 Bearing’s temperature resistance makes it suitable for lab equipment. Its static radial load capacity ensures stability in critical applications.
