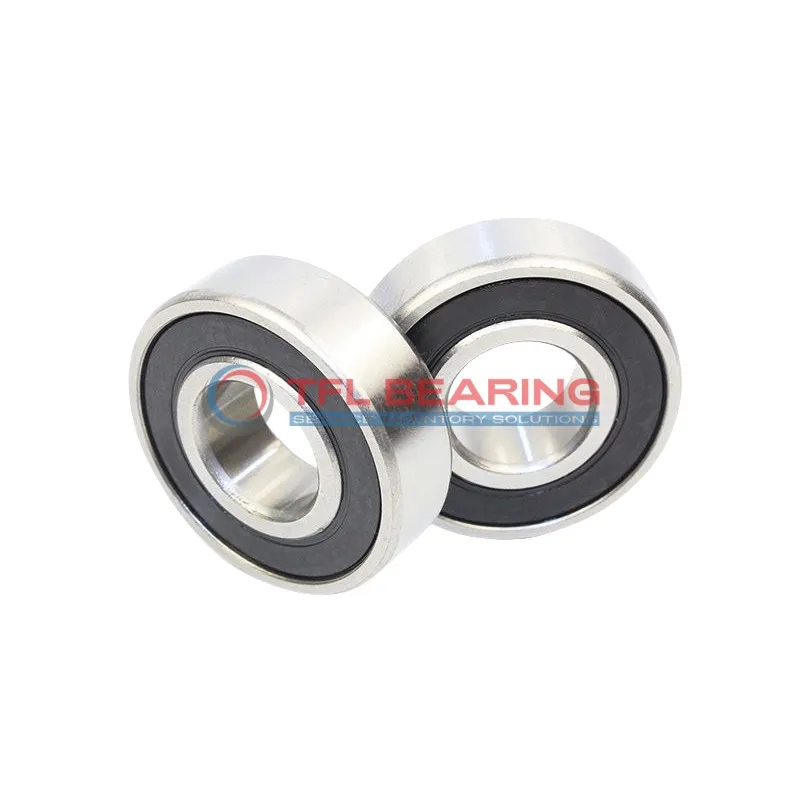

Single Row Deep Groove Ball Bearings RLS 5-2RS1/W64

Single Row Deep Groove Ball Bearings RLS 5-2RS1/W64

The RLS 5-2RS1/W64 is a compact single-row deep groove ball bearing, measuring 0.625″ in bore diameter and 1.56252″ in outer diameter. Made from chrome steel, it offers reliable performance for radial loads up to 2149 lbf.

Its sealed design keeps out contaminants, while the solid oil lubrication ensures smooth operation at speeds up to 24,000 RPM. The bearing works in temperatures from -30°C to 120°C.

With ABEC 1 tolerance and ISO P0 standards, it provides consistent performance. Ideal for small machinery or electric motors where space is limited.

Weighing just 0.066kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RLS 5-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 0.625"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 1.56252"
  • Outer Dia Tolerance -0.00078" to -0.00031"
  • Width 0.43748"
  • Width Tolerance -0.005" to 0"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2149 lbf
  • Static Radial Load 1068 lbf
  • Max Speed 24000 rpm
  • Weight 0.066 kg
  • price（$） 9.162
Single Row Deep Groove Ball Bearings RLS 5-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of RLS 5-2RS1/W64 Bearing

RLS 5-2RS1/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 2149 lbf, ensuring reliable performance in various applications.
The sealed design and solid oil lubrication reduce maintenance needs while extending service life.
With a maximum speed of 24,000 rpm, it balances efficiency and durability.

Application

Industrial Uses of RLS 5-2RS1/W64 Bearing
RLS 5-2RS1/W64 Bearing is commonly used in conveyor systems, where its sealed design keeps out dust and debris. The solid oil lubrication ensures long-lasting performance even in demanding environments.

In automotive applications, RLS 5-2RS1/W64 Bearing fits well in electric motors and pumps, thanks to its radial load capacity. The inch sizing makes it a versatile choice for various vehicle models.

For home appliances like washing machines, RLS 5-2RS1/W64 Bearing provides quiet and smooth operation. Its chrome steel construction offers durability for everyday use.

In robotics, RLS 5-2RS1/W64 Bearing is ideal for small joints and actuators due to its compact size. The ABEC 1 tolerance ensures reliable precision in automated systems.
