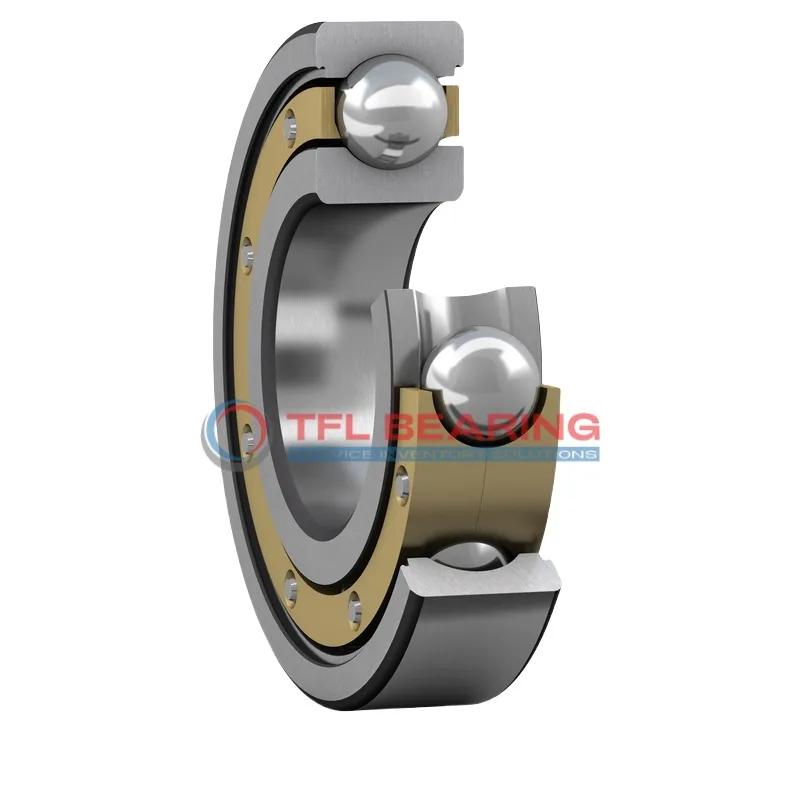

Single Row Angular Contact Ball Bearings (General) 71984 AGAM

Brand: TFL Bearing Interchangeable: SKF 71984 AGAM 420 mm × 560 mm × 65 mm Metric Open
Part number: 71984 AGAM
Single Row Angular Contact Ball Bearings (General) 71984 AGAM
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia420 mm
Bore Dia Tolerance-0.035mm to 0
Outer Dia560 mm
Outer Dia Tolerance-0.038mm to 0
Width65 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)467.2 mm
External Diameter On Inner Ring (Small Side Face)449.84 mm
Internal Diameter On Outer Ring515.35 mm
Chamfer Dimension4 mm
Performance
Dynamic Radial Load92,250 lbf
Static Radial Load172,125 lbf
Temperature Range-30° to 110 °C
Max Speed1,200 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle30°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)174 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight42 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 71984 AGAM is a single-row angular contact ball bearing with a 420mm bore and 560mm outer diameter, built from sturdy chrome steel. It manages radial loads up to 92250 lbf and operates smoothly at speeds up to 1200 RPM.

Its 30° contact angle helps handle combined loads, while the brass cage ensures durability and quiet performance. The open design allows for easy lubrication and maintenance.

This bearing suits applications with angular loads, such as industrial gearboxes or heavy machinery. It works reliably in temperatures from -30°C to 110°C.

Weighing 42kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for easy replacement.

Features

How Is 71984 AGAM Bearing Engineered for Reliability?

71984 AGAM Bearing features a 30° contact angle, designed to handle both radial and axial loads efficiently.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.

With a dynamic radial load capacity of 92,250 lbf, it performs reliably under heavy loads.
The P6 tolerance class guarantees precision, making it suitable for high-accuracy applications.

71984 AGAM Bearing operates smoothly within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication, ensuring long service life with minimal maintenance.

Application

Industrial Uses of 71984 AGAM Bearing
71984 AGAM Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its angular contact design handles combined radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

In wind turbine applications, 71984 AGAM Bearing supports the main shaft, providing stability and durability in challenging environments. Its P6 tolerance class guarantees precision, which is essential for consistent energy generation.

For machine tools, 71984 AGAM Bearing’s 30° contact angle offers excellent performance in spindle assemblies, reducing vibration and improving accuracy. The chrome steel construction enhances its lifespan in demanding operational conditions.

Automotive vs Aerospace: Applications of 71984 AGAM Bearing
In automotive systems, 71984 AGAM Bearing is found in large transmission units, where its load capacity ensures reliable power transfer. The metric sizing makes it compatible with various heavy vehicle designs.

Aerospace applications benefit from 71984 AGAM Bearing’s precision in landing gear mechanisms, where its ability to handle dynamic loads is crucial. The lubricated design further ensures smooth performance at high speeds.
