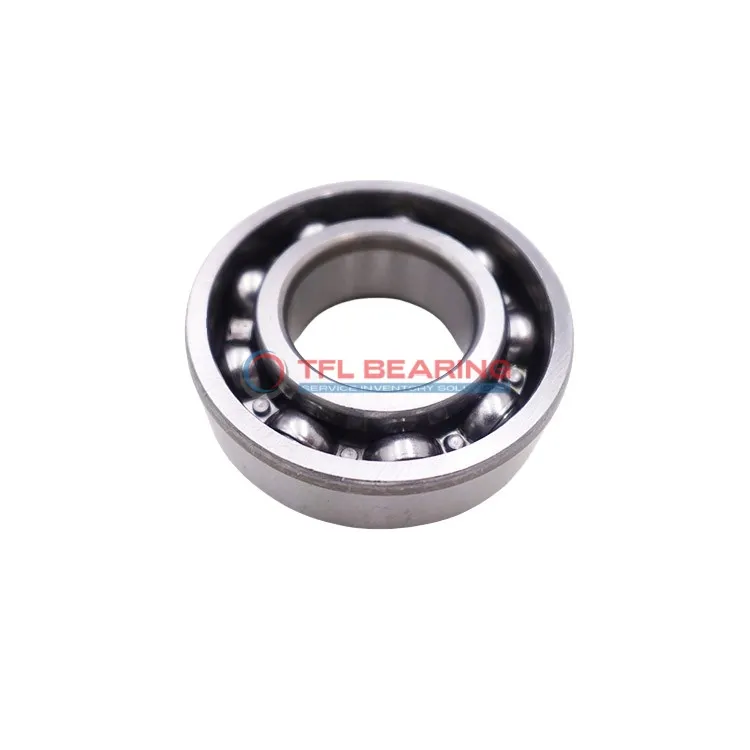

Single Row Deep Groove Ball Bearings RLS 16

Single Row Deep Groove Ball Bearings RLS 16

The RLS 16 is a single-row deep groove ball bearing with a 2-inch bore and 4-inch outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 10386 lbf and operates smoothly at speeds up to 9000 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 0.7kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RLS 16
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 2"
  • Bore Dia Tolerance -0.00031" to 0.00019"
  • Outer Dia 4"
  • Outer Dia Tolerance -0.00129" to -0.00078"
  • Width 0.81252"
  • Width Tolerance -0.005" to 0"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 10386 lbf
  • Static Radial Load 6519 lbf
  • Max Speed 9000 rpm
  • Weight 0.7 kg
Single Row Deep Groove Ball Bearings RLS 16 dimension drawing
Download DWG Download PDF

Features

Why Choose RLS 16 Bearing for Precision Tasks?

RLS 16 Bearing features a single-row deep groove design, ideal for handling radial loads with precision.
Its chrome steel rings and balls ensure durability, while the stainless steel cage maintains alignment for smooth operation.

With a dynamic radial load capacity of 10,386 lbf, RLS 16 Bearing performs reliably in demanding conditions.
The P6 tolerance class guarantees high precision, making it suitable for applications requiring tight tolerances.

RLS 16 Bearing operates efficiently within a temperature range of -30° to 120°C, ensuring consistent performance.
Its open design simplifies maintenance, reducing downtime and operational costs.

Application

Industrial Uses of RLS 16 Bearing
RLS 16 Bearing is commonly used in conveyor systems, where its deep groove design handles radial loads efficiently. The inch sizing makes it a good fit for machinery in regions where imperial measurements are standard.

In automotive applications, RLS 16 Bearing works well in electric motors and pumps, providing smooth rotation under moderate loads. Its chrome steel construction ensures durability in these high-use environments.

For home appliances like washing machines, RLS 16 Bearing offers reliable performance with minimal maintenance. The open seal design allows for easy lubrication, extending its lifespan in everyday use.
