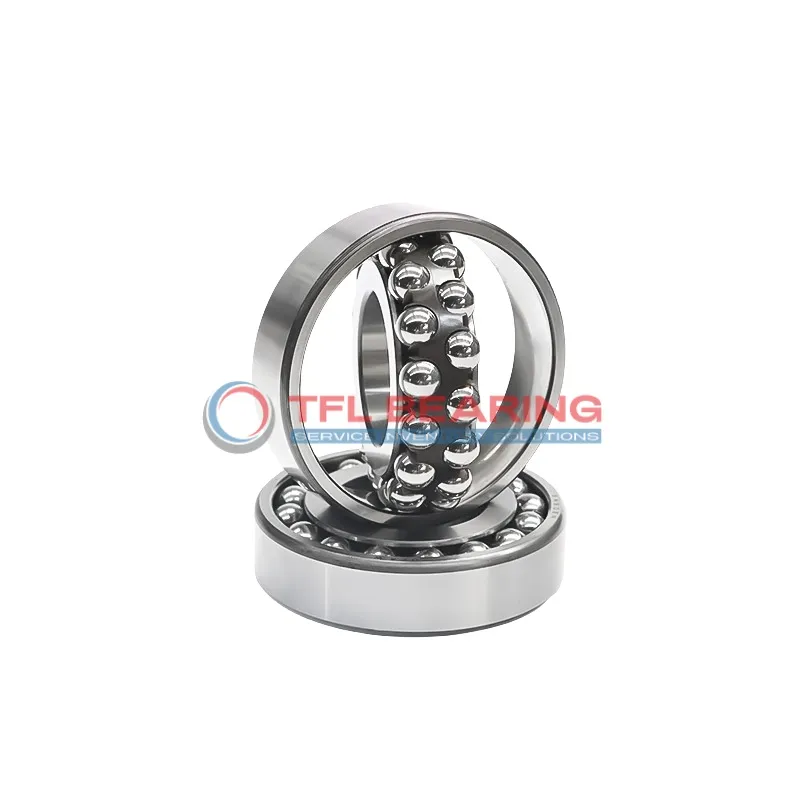

Self Aligning Ball Bearings 1209 ETN9/W64

Self Aligning Ball Bearings 1209 ETN9/W64

The 1209 ETN9/W64 is a self-aligning ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5152 lbf and operates smoothly at speeds up to 11000 RPM.

Its double-row design helps compensate for misalignment, while the nylon cage reduces friction and noise. The bearing comes pre-lubricated and works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Suitable for applications like conveyor systems or agricultural machinery where slight shaft misalignment may occur.

Weighing 0.47kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1209 ETN9/W64
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 57.51 mm
  • Internal Diameter On Outer Ring 72.5 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5152 lbf
  • Static Radial Load 1755 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 11000 rpm
  • Weight 0.47 kg
  • Price（$） 28.27
Self Aligning Ball Bearings 1209 ETN9/W64 dimension drawing
Download DWG Download PDF

Features

Why Choose 1209 ETN9/W64 Bearing for Precision Tasks?

1209 ETN9/W64 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load handling.
Its dynamic radial load capacity of 5152 lbf makes it suitable for high-performance applications.

The nylon cage in 1209 ETN9/W64 Bearing helps reduce friction and noise during operation.
With a maximum speed of 11,000 rpm, it offers both durability and efficiency.

1209 ETN9/W64 Bearing operates effectively in temperatures ranging from -30° to 110°C.
Its open seal type allows for easy lubrication, enhancing long-term reliability.

The precise tolerances of 1209 ETN9/W64 Bearing ensure consistent performance in demanding conditions.
Weighing just 0.47 kg, it combines strength with a lightweight design.

Application

Industrial Uses of 1209 ETN9/W64 Bearing
1209 ETN9/W64 Bearing is commonly used in conveyor systems, where its self-aligning feature helps handle minor misalignments smoothly. The double-row design ensures reliable performance even under heavy radial loads.

Where Is 1209 ETN9/W64 Bearing Used?
You’ll often find 1209 ETN9/W64 Bearing in agricultural machinery, supporting equipment like grain augers and harvesters. Its nylon cage reduces friction, making it suitable for high-speed operations.

Built for Heavy-Duty Use: 1209 ETN9/W64 Bearing
1209 ETN9/W64 Bearing excels in industrial fans, where its chrome steel construction withstands continuous operation. The lubricated design ensures long service life with minimal maintenance.

Automotive vs Aerospace: Applications of 1209 ETN9/W64 Bearing
In automotive applications, 1209 ETN9/W64 Bearing is used in wheel hubs, offering durability and smooth rotation. For aerospace, its precision makes it suitable for auxiliary equipment requiring consistent performance.

Perfect Fit for Automation: 1209 ETN9/W64 Bearing
1209 ETN9/W64 Bearing is ideal for robotic arms, where its self-aligning capability compensates for movement inaccuracies. The metric sizing ensures compatibility with various automation systems.
