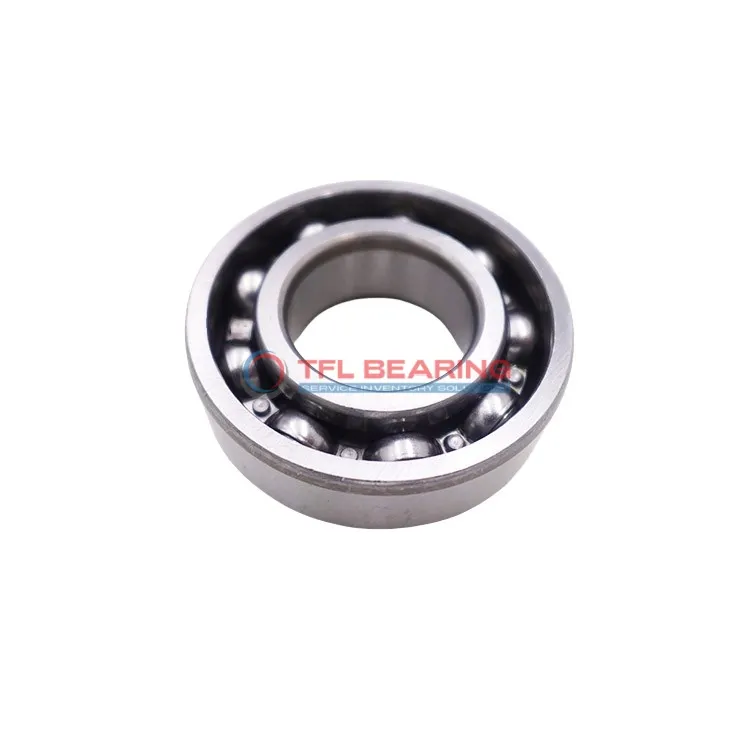

Single Row Deep Groove Ball Bearings RLS 13

Single Row Deep Groove Ball Bearings RLS 13

The RLS 13 is a single-row deep groove ball bearing with a 1.625-inch bore and 3.5-inch outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7464 lbf and operates smoothly at speeds up to 11000 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 0.53kg, it offers a good balance of strength and lightness. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RLS 13
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 1.625"
  • Bore Dia Tolerance -0.00031" to 0.00019"
  • Outer Dia 3.5"
  • Outer Dia Tolerance -0.00129" to -0.00078"
  • Width 0.75"
  • Width Tolerance -0.005" to 0"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 7464 lbf
  • Static Radial Load 4856 lbf
  • Max Speed 11000 rpm
  • Weight 0.53 kg
Single Row Deep Groove Ball Bearings RLS 13 dimension drawing
Download DWG Download PDF

Features

Performance Features of RLS 13 Bearing

RLS 13 Bearing is crafted with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 7464 lbf, making it suitable for demanding applications.

The stainless steel cage ensures smooth operation, reducing friction and wear.
With a maximum speed of 11,000 rpm, it balances performance and durability.

RLS 13 Bearing operates efficiently in temperatures ranging from -30° to 120 °C.
Its open design simplifies maintenance, ensuring long-term reliability.

Application

Industrial Uses of RLS 13 Bearing
RLS 13 Bearing is commonly used in industrial machinery, especially in applications requiring smooth radial load handling, such as conveyor systems and pumps. Its open design and chrome steel construction make it durable for continuous operation.

In automotive applications, RLS 13 Bearing fits well in components like alternators and water pumps, where its inch sizing is compatible with many American-made vehicles. The P6 tolerance ensures reliable performance under varying loads.

For automation equipment, RLS 13 Bearing’s stainless steel cage helps reduce wear in high-speed scenarios, such as robotic arms. Its temperature range also makes it suitable for environments with moderate heat fluctuations.

In household appliances like washing machines, RLS 13 Bearing provides quiet and efficient operation. The deep groove design helps distribute loads evenly, extending the bearing’s lifespan.
