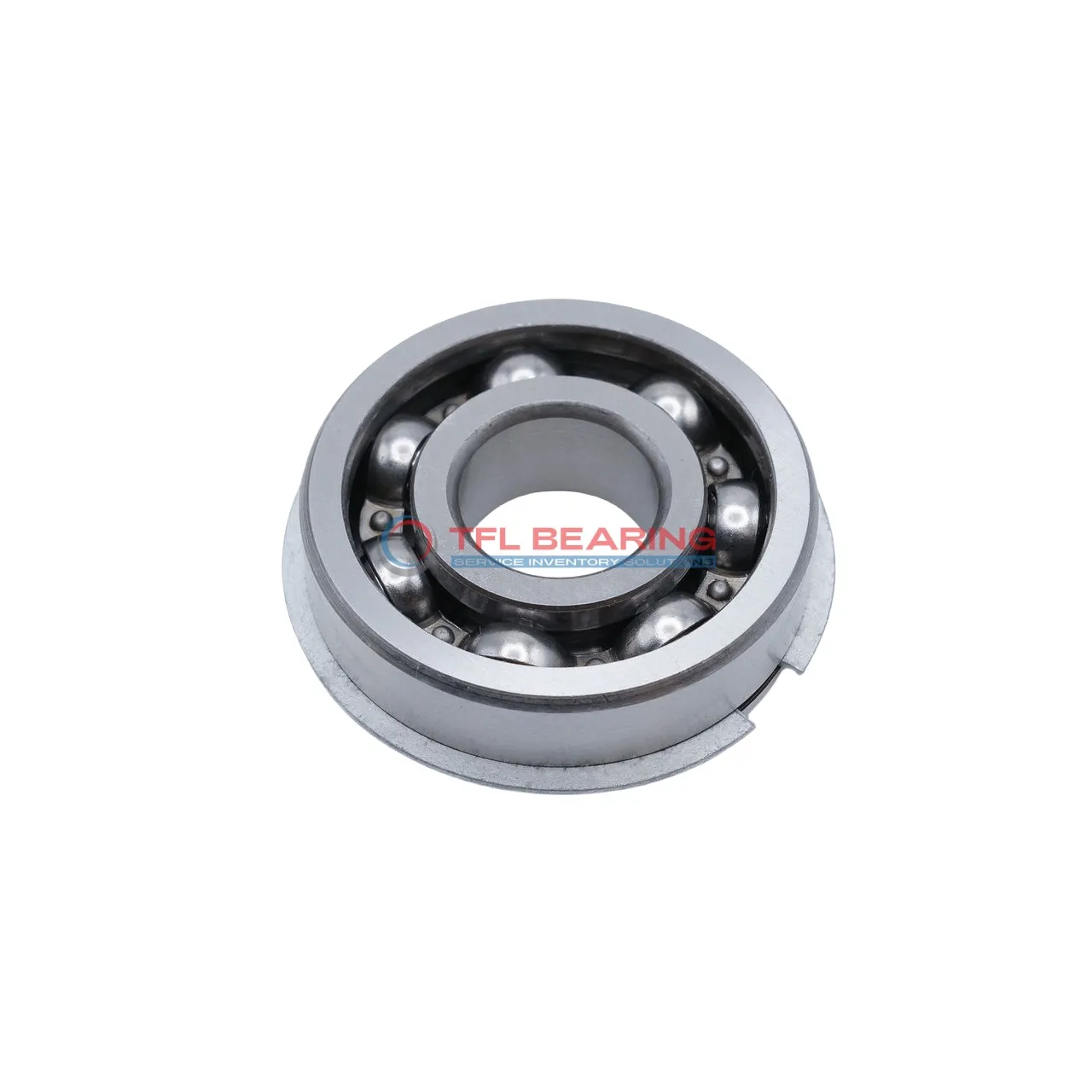

Snap Ring Groove Ball Bearings 213NR/C3

Snap Ring Groove Ball Bearings 213NR/C3

The 213NR/C3 is a snap ring groove ball bearing with a 65mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 13601 lbf and operates smoothly at speeds up to 6000 RPM.

Its open design and snap ring feature on the outer ring ensure secure fitting, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for machinery where radial loads and secure mounting are key, such as pumps or conveyors.

Weighing 1.05kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 213NR/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.15mm to 0
  • Outside Diameter Of Snap Ring 129.7 mm
  • Width Of Snap Ring 2.82 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 13601 lbf
  • Static Radial Load 13151 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 6000 rpm
  • Weight 1.05 kg
  • Price（$） 29.2
Snap Ring Groove Ball Bearings 213NR/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 213NR/C3 Bearing

213NR/C3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 13601 lbf, ensuring reliable performance in various applications.

The snap ring groove on the outer ring provides secure mounting, simplifying installation.
With a maximum speed of 6,000 rpm, it balances durability and efficiency for industrial use.

213NR/C3 Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its open design allows for easy lubrication, reducing maintenance needs over time.

Application

Industrial Uses of 213NR/C3 Bearing
213NR/C3 Bearing is commonly used in industrial machinery, especially where radial load support is needed, such as in conveyor systems and pumps.
Its snap ring feature ensures secure mounting, making it a reliable choice for equipment requiring easy installation and maintenance.

What Makes 213NR/C3 Bearing a Preferred Choice?
In automotive applications, 213NR/C3 Bearing fits well in gearboxes and wheel hubs due to its robust chrome steel construction.
The C3 radial clearance allows for thermal expansion, ensuring smooth performance even under varying temperatures.

Built for Heavy-Duty Use: 213NR/C3 Bearing
For automation systems, 213NR/C3 Bearing provides stable operation in robotic arms and assembly lines.
The open design and high dynamic load capacity make it suitable for continuous, high-speed operations.

Medical vs Industrial: Where 213NR/C3 Bearing Excels
In medical devices like centrifuges, 213NR/C3 Bearing offers precision and durability.
Its chrome steel cage enhances longevity, while the snap ring simplifies maintenance in tight spaces.

Where to Use 213NR/C3 Bearing
For consumer electronics such as high-performance fans, 213NR/C3 Bearing ensures quiet and efficient operation.
The metric dimensions and ABEC 1 tolerance make it compatible with a wide range of household and industrial appliances.
