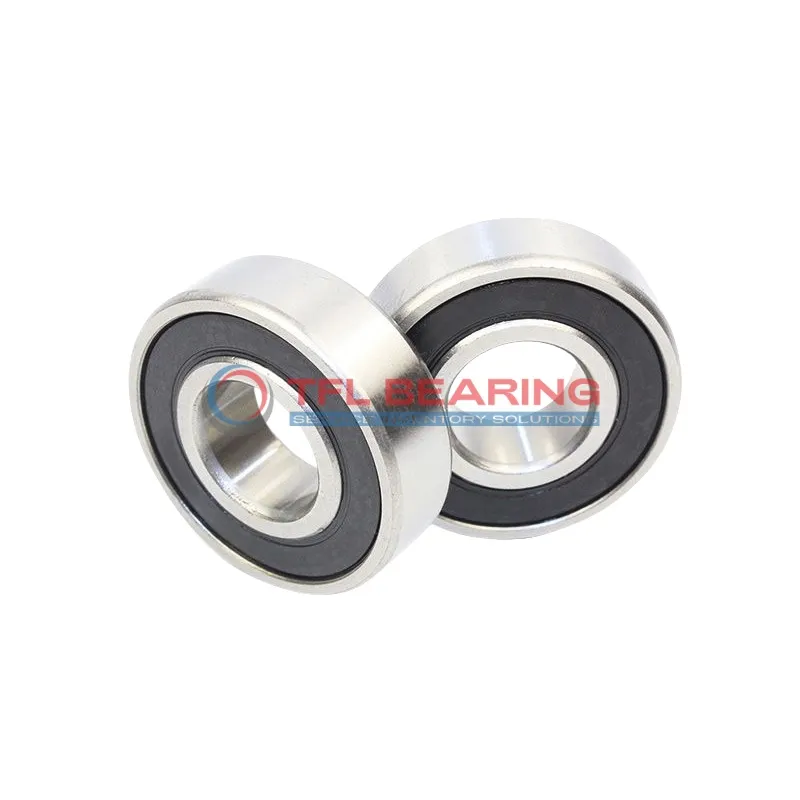

Single Row Deep Groove Ball Bearings R8-2RS1/W64F

Single Row Deep Groove Ball Bearings R8-2RS1/W64F

The R8-2RS1/W64F is a compact single-row deep groove ball bearing with a 0.5″ bore and 1.125″ outer diameter, made from sturdy chrome steel. It supports radial loads up to 1149 lbf and can spin at speeds up to 27,000 RPM.

Its sealed design keeps lubrication in and dirt out, while the solid oil ensures smooth operation over time. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for small machinery or tools where space is limited but performance is key.

Weighing just 11.6g, it’s lightweight yet durable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number R8-2RS1/W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 0.5"
  • Bore Dia Tolerance -0.0003" to 0"
  • Outer Dia 1.125"
  • Outer Dia Tolerance -0.0004" to 0"
  • Width 0.25"
  • Width Tolerance -0.005" to 0"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1149 lbf
  • Static Radial Load 511 lbf
  • Max Speed 27000 rpm
  • Weight 11.6 g
Single Row Deep Groove Ball Bearings R8-2RS1/W64F dimension drawing
Download DWG Download PDF

Features

How Does R8-2RS1/W64F Bearing Reduce Friction?

R8-2RS1/W64F Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and reduced friction.
The chrome steel construction provides durability and resistance to wear, even under radial loads.

Its ABEC 1 tolerance class ensures reliable performance in various applications.
With a maximum speed of 27,000 rpm, it offers efficient operation for high-speed needs.

The sealed design keeps contaminants out, extending the bearing’s service life.
R8-2RS1/W64F Bearing operates in temperatures from -30°C to 120°C, making it versatile for different environments.

Application

Common Applications of R8-2RS1/W64F Bearing
R8-2RS1/W64F Bearing works well in small electric motors, often found in household appliances like fans or power tools. Its sealed design keeps dust out, making it reliable for everyday use.

In industrial settings, R8-2RS1/W64F Bearing handles radial loads in conveyor rollers or light machinery. The solid oil lubrication ensures smooth operation without frequent maintenance.

For automation projects, R8-2RS1/W64F Bearing fits neatly into compact robotic arms or 3D printers. The chrome steel construction provides durability while keeping the weight low for precision movements.

Medical devices like small pumps or lab equipment benefit from R8-2RS1/W64F Bearing’s consistent performance. The temperature range suits both indoor and outdoor applications without compromising reliability.
