Flanged Deep Groove Ball Bearings W 626 R-2RS1

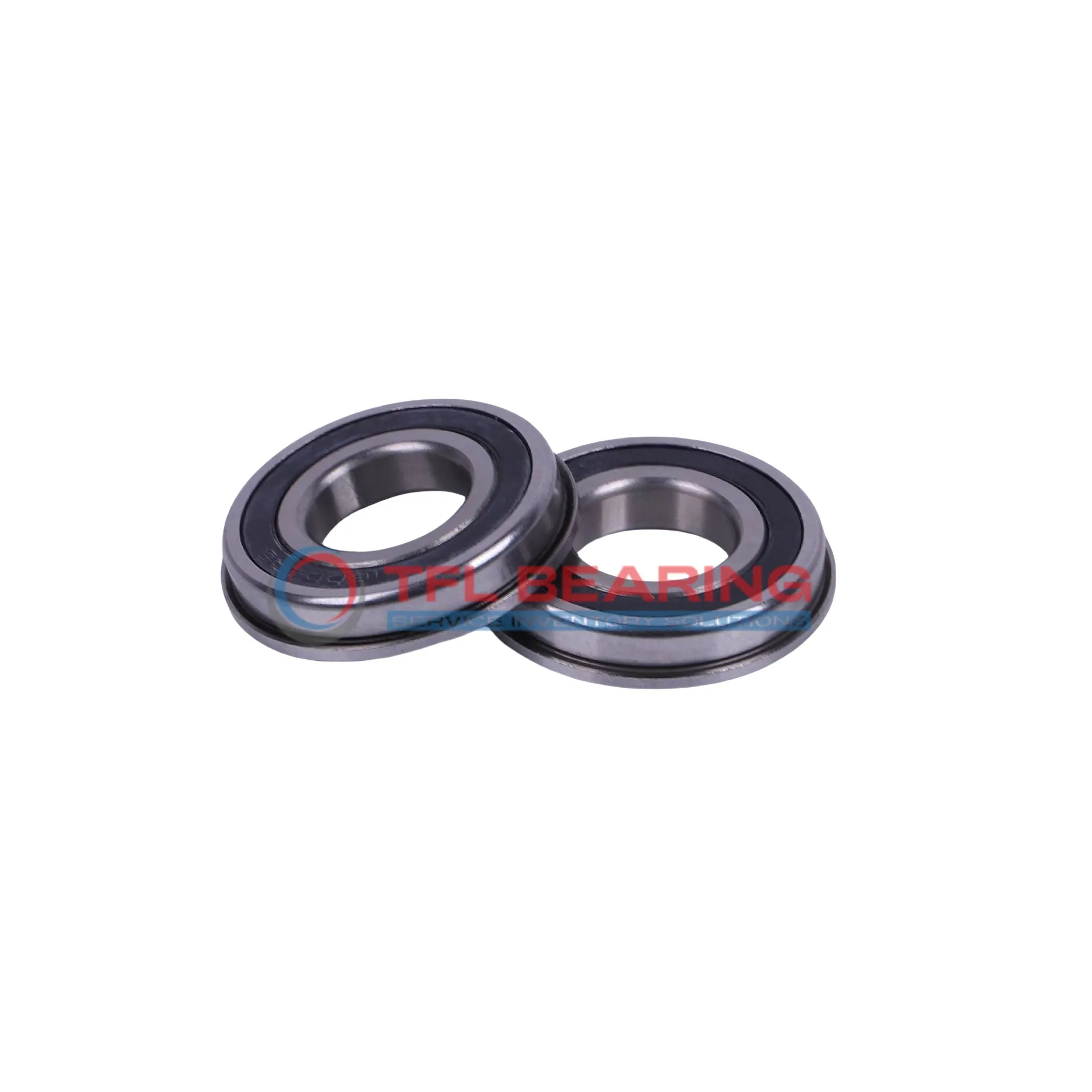

Flanged Deep Groove Ball Bearings W 626 R-2RS1

The W 626 R-2RS1 is a compact flanged deep groove ball bearing, measuring 6mm by 19mm with a 6mm width. Made entirely from stainless steel, it offers good resistance to corrosion and wear.

This sealed bearing handles radial loads up to 344 lbf and can spin at speeds up to 24,000 RPM. Its grease lubrication ensures smooth operation with minimal maintenance.

The built-in flange provides secure mounting, while the double seals protect against dust and moisture. It operates reliably in temperatures from -30°C to 120°C.

Ideal for small machinery, electric motors, or appliances where space is limited. Weighing just 8.8 grams, it’s lightweight yet durable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 626 R-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 22 mm
  • Flange Thickness 1.5 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 344 lbf
  • Static Radial Load 132 lbf
  • Max Speed 24000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0088 kg
  • Price（$） 2
Flanged Deep Groove Ball Bearings W 626 R-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does W 626 R-2RS1 Bearing Reduce Friction?

W 626 R-2RS1 Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its sealed design retains lubrication, reducing wear and maintenance needs over time.
The single-row construction and precision tolerance class P0 enhance its efficiency in radial load applications.
With a maximum speed of 24,000 rpm, it delivers reliable performance in various conditions.

Application

Common Applications of W 626 R-2RS1 Bearing
W 626 R-2RS1 Bearing is widely used in small electric motors, such as those found in household appliances like blenders and fans. Its sealed design keeps out dust and moisture, ensuring long-lasting performance in everyday use.

In automation systems, W 626 R-2RS1 Bearing fits neatly into compact robotic arms and conveyor guides, thanks to its flanged outer ring for easy mounting. The stainless steel construction also resists corrosion in humid environments.

For medical devices like dental tools or lab equipment, W 626 R-2RS1 Bearing offers smooth, quiet operation. The grease lubrication reduces maintenance needs, making it ideal for precision instruments.

You’ll often spot W 626 R-2RS1 Bearing in office printers, where its small size and radial load capacity keep paper feeds running smoothly. The flange adds stability, preventing misalignment during high-speed operation.

In DIY power tools, W 626 R-2RS1 Bearing handles the radial loads in compact drills and sanders. Its sealed design means less worry about sawdust or debris affecting performance over time.
