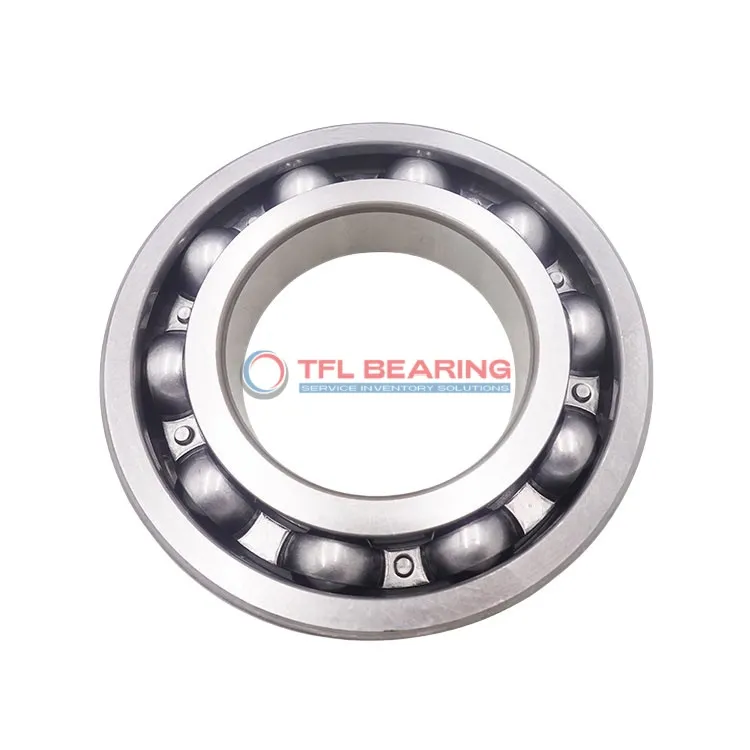

Single Row Deep Groove Ball Bearings R24F

Single Row Deep Groove Ball Bearings R24F

The R24F is a single-row deep groove ball bearing with a 1.5-inch bore and 2.625-inch outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4426 lbf and operates smoothly at speeds up to 5000 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or small machinery where radial loads are common.

Weighing just 140g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe and reliable option for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number R24F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 1.5"
  • Bore Dia Tolerance -0.0005" to 0"
  • Outer Dia 2.625"
  • Outer Dia Tolerance -0.0005" to 0"
  • Width 0.4375"
  • Width Tolerance -0.005" to 0"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4426 lbf
  • Static Radial Load 2446 lbf
  • Max Speed 5000 rpm
  • Weight 140 g
  • price（$） 9.639
Single Row Deep Groove Ball Bearings R24F dimension drawing
Download DWG Download PDF

Features

Why Choose R24F Bearing for Precision Tasks?

R24F Bearing features a single row deep groove design, ideal for handling radial loads with precision.
Its chrome steel construction ensures durability and smooth operation in various applications.

The bearing’s ABEC 1 tolerance class provides reliable performance for general industrial use.
With a dynamic radial load capacity of 4426 lbf, it handles demanding conditions effectively.

R24F Bearing operates within a temperature range of -30°C to 120°C, suitable for diverse environments.
Its open design simplifies maintenance, making it a practical choice for many users.

Application

Industrial Uses of R24F Bearing
R24F Bearing is commonly used in conveyor systems and industrial fans, where its radial load capacity ensures smooth operation. The open design allows for easy lubrication, making it suitable for dusty environments.

What Makes R24F Bearing a Preferred Choice?
In automotive applications like alternators and water pumps, R24F Bearing offers reliable performance due to its chrome steel construction. Its inch sizing makes it a good fit for many American-made vehicles.

Perfect Fit for Automation: R24F Bearing
R24F Bearing works well in robotic arms and assembly line equipment, where precision and durability are key. The ABEC 1 tolerance ensures consistent performance without unnecessary complexity.

Medical vs Industrial: Where R24F Bearing Excels
While R24F Bearing can handle medical devices like centrifuges, it truly shines in industrial settings like gearboxes. The wide temperature range makes it adaptable to various working conditions.

Essential Roles of R24F Bearing
In household appliances like washing machines, R24F Bearing provides quiet and efficient operation. The static radial load capacity ensures longevity even with frequent use.
