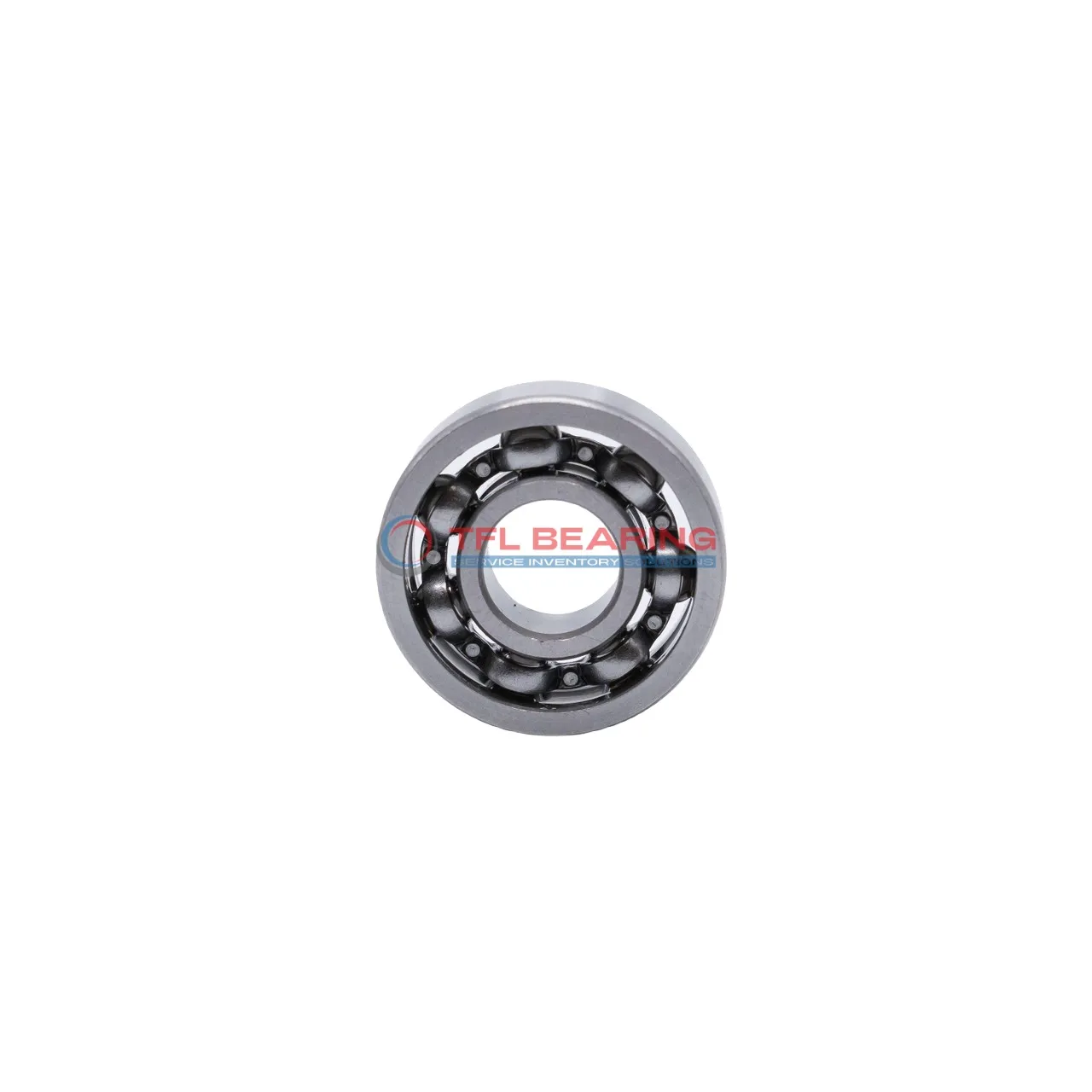

Single Row Deep Groove Ball Bearings ICOS-D1B02 TN9

Single Row Deep Groove Ball Bearings ICOS-D1B02 TN9

The ICOS-D1B02 TN9 is a compact single-row deep groove ball bearing, measuring 15mm by 35mm by 11mm, crafted from sturdy chrome steel. It handles radial loads up to 1812 lbf and spins smoothly at speeds up to 12,000 RPM.

Its open design allows for easy maintenance, while the nylon cage ensures quiet operation and durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or small machinery where radial loads are common.

Weighing just 0.048kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe and reliable option for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number ICOS-D1B02 TN9
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 11 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 843 lbf
  • Max Speed 12000 rpm
  • Weight 0.048 kg
Single Row Deep Groove Ball Bearings ICOS-D1B02 TN9 dimension drawing
Download DWG Download PDF

Features

Performance Features of ICOS-D1B02 TN9 Bearing

ICOS-D1B02 TN9 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 1812 lbf, ensuring reliable performance in various applications.

The nylon cage keeps the balls aligned, reducing friction and extending service life.
With a maximum speed of 12,000 rpm, it balances efficiency and durability.

ICOS-D1B02 TN9 Bearing operates in temperatures from -30° to 120°C, suitable for diverse environments.
Its precision P6 tolerance class ensures consistent performance in demanding conditions.

Application

Industrial Uses of ICOS-D1B02 TN9 Bearing
ICOS-D1B02 TN9 Bearing works well in machine tools, where its single-row design handles radial loads smoothly. The open seal type makes it easy to clean and maintain in dusty environments.

In automotive applications, ICOS-D1B02 TN9 Bearing fits nicely into electric motors and pumps, thanks to its compact 15 mm bore. The chrome steel construction ensures durability even with frequent use.

For home appliances like washing machines, ICOS-D1B02 TN9 Bearing provides quiet and reliable performance. Its nylon cage reduces friction, making it energy-efficient for everyday use.

Automation vs General Machinery: ICOS-D1B02 TN9 Bearing
In robotic arms, ICOS-D1B02 TN9 Bearing offers precise movement due to its P6 tolerance class. The metric sizing ensures compatibility with most European automation systems.

Compared to general machinery, ICOS-D1B02 TN9 Bearing excels in high-speed applications like small fans, where its 12,000 rpm rating is handy. The lightweight design also helps reduce overall system weight.
