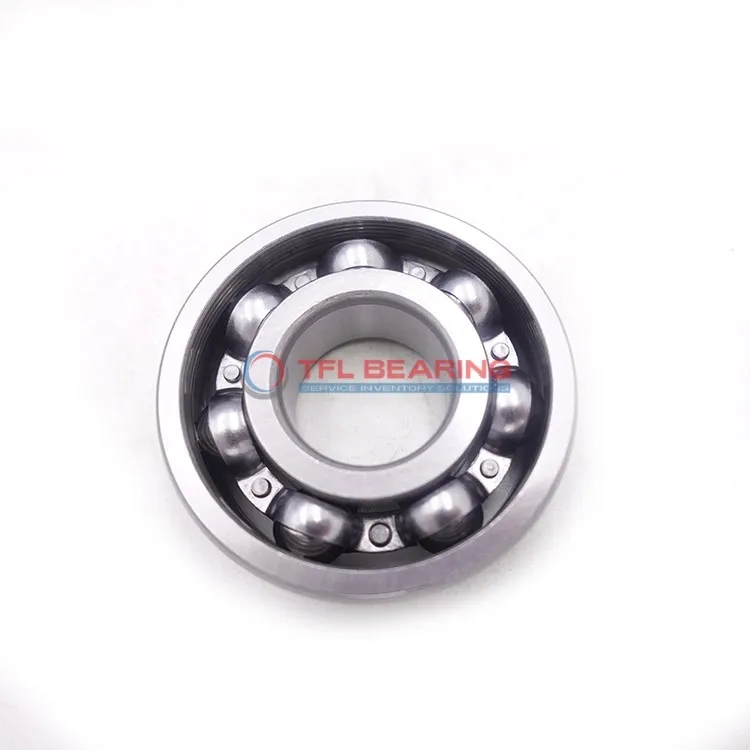

Single Row Deep Groove Ball Bearings 6417

Single Row Deep Groove Ball Bearings 6417

The 6417 is a single-row deep groove ball bearing with an 85mm bore and 210mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 39117 lbf and operates smoothly at speeds up to 3200 RPM.

Its open design simplifies lubrication, while the stainless steel cage ensures durability under demanding conditions. The bearing functions well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for industrial machinery, pumps, or electric motors where radial load support is key.

Weighing 9500g, it’s a robust choice for heavy-duty applications. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6417
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No CN
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 210 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 52 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Required
  • REACH Compliant
  • Temperature Range -30° to 110 °C
  • Dynamic Radial Load 39117 lbf
  • Static Radial Load 30799 lbf
  • Max Speed 3200 rpm
  • Weight 9500 g
  • price（$） 161.64
Single Row Deep Groove Ball Bearings 6417 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6417 Bearing

6417 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 39117 lbf, ensuring reliable performance in various applications.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 3,200 rpm, it balances durability and efficiency for industrial use.

6417 Bearing operates effectively in temperatures from -30° to 110°C, suitable for diverse environments.
Its open design simplifies lubrication, helping to maintain smooth operation over time.

The ABEC-1 tolerance class ensures consistent performance, while the CN radial clearance provides optimal fit.
This makes 6417 Bearing a practical choice for machinery requiring dependable radial load support.

Application

Industrial Uses of 6417 Bearing
The 6417 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its deep groove design handles radial loads efficiently. Its open seal type simplifies lubrication, making maintenance straightforward in demanding environments.

In automotive applications, 6417 Bearing fits well in wheel hubs and transmission systems, thanks to its durable chrome steel construction. The ABEC-1 tolerance ensures reliable performance without unnecessary complexity for most vehicle needs.

For automation equipment, 6417 Bearing provides smooth operation in robotic arms and assembly line mechanisms. The stainless steel cage adds longevity, even with frequent use in high-speed settings.

Medical imaging devices benefit from 6417 Bearing’s consistent performance under moderate loads. Its temperature range suits both diagnostic machines and laboratory equipment, ensuring stability during prolonged use.

In household appliances like washing machines, 6417 Bearing offers quiet and reliable rotation. The metric sizing makes it a versatile choice for manufacturers across different regions.
