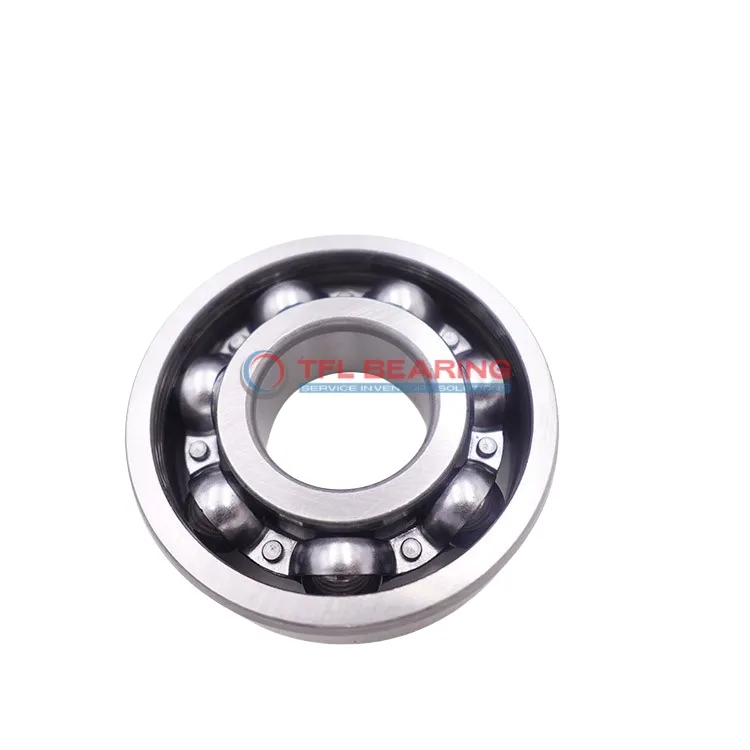

Single Row Deep Groove Ball Bearings 6416

Single Row Deep Groove Ball Bearings 6416

The 6416 is a single-row deep groove ball bearing with an 80mm bore and 200mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 36644 lbf and operates smoothly at speeds up to 3400 RPM.

Its open design simplifies lubrication, while the stainless steel cage enhances durability. The bearing functions well in temperatures ranging from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for industrial machinery or heavy equipment where radial load support is essential.

Weighing 8000g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6416
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No CN
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 48 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Required
  • REACH Compliant
  • Temperature Range -30° to 110 °C
  • Dynamic Radial Load 36644 lbf
  • Static Radial Load 28101 lbf
  • Max Speed 3400 rpm
  • Weight 8000 g
  • price（$） 138.06
Single Row Deep Groove Ball Bearings 6416 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6416 Bearing

6416 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 36,644 lbf, ensuring reliable performance in various applications.

The stainless steel cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 3,400 rpm, it balances durability and efficiency for smooth operation.

Designed for radial loads, 6416 Bearing operates effectively in temperatures from -30° to 110°C.
Its open seal type allows for easy lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 6416 Bearing
6416 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its robust design handles radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

Where Is 6416 Bearing Used?
In automotive applications, 6416 Bearing fits well in wheel hubs and transmission systems, providing reliable performance under continuous radial stress. Its metric dimensions make it a versatile choice for various vehicle models.

Perfect Fit for Automation: 6416 Bearing
For automated production lines, 6416 Bearing ensures smooth operation in robotic arms and assembly machines. The chrome steel construction offers durability, while the stainless steel cage reduces friction during high-speed movements.

Medical vs Industrial: Where 6416 Bearing Excels
In medical devices like MRI machines, 6416 Bearing’s precision and low noise are crucial for accurate imaging. Meanwhile, in industrial settings, it excels in pumps and compressors due to its high load capacity.

Light-Duty vs Heavy-Duty: Best Uses for 6416 Bearing
For light-duty tasks like office printers, 6416 Bearing provides quiet and efficient performance. In heavy-duty scenarios such as construction equipment, it handles substantial radial loads without compromising stability.
