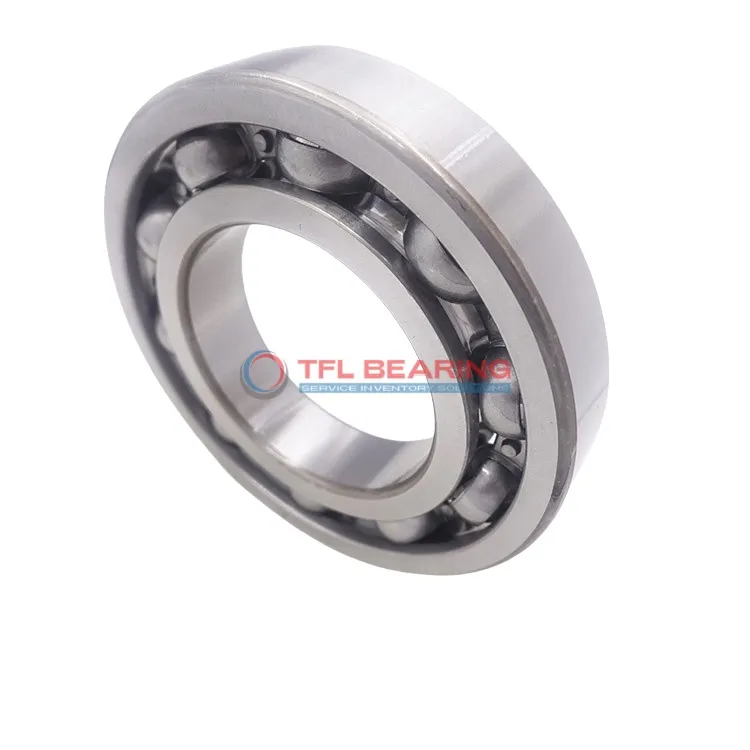

Single Row Deep Groove Ball Bearings 6330

Single Row Deep Groove Ball Bearings 6330

The 6330 is a single-row deep groove ball bearing with a 150mm bore and 320mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 62047 lbf and operates smoothly at speeds up to 2800 RPM.

Its open design simplifies maintenance, while the precision P6 tolerance ensures reliable performance. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty machinery and industrial equipment where radial load support is essential.

Weighing 22.9kg, it’s built for durability in demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6330
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 320 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 65 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 62047 lbf
  • Static Radial Load 64071 lbf
  • Max Speed 2800 rpm
  • Weight 22900 g
  • price（$） 607.995
Single Row Deep Groove Ball Bearings 6330 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6330 Bearing

6330 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 62047 lbf.
Its single-row deep groove design ensures smooth operation and efficient load distribution.

The P6 tolerance class provides precise performance, suitable for demanding applications.
With a maximum speed of 2,800 rpm, it balances durability and operational efficiency.

6330 Bearing operates in temperatures from -30° to 120°C, making it versatile for various environments.
Its open design simplifies maintenance and allows for easy lubrication when needed.

The 6330 Bearing’s dimensions (150 mm×320 mm×65 mm) make it ideal for industrial machinery.
Its static radial load capacity of 64071 lbf ensures reliability under heavy loads.

Application

Industrial Uses of 6330 Bearing
6330 Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its deep groove design handles radial loads efficiently. The chrome steel construction ensures durability in demanding environments.

Where Is 6330 Bearing Used?
You’ll find 6330 Bearing in conveyor systems and large fans, thanks to its high load capacity and smooth operation. Its open design simplifies maintenance, making it a reliable choice for continuous use.

Built for Heavy-Duty Use: 6330 Bearing
6330 Bearing excels in applications like agricultural equipment and mining machinery, where robustness is key. The P6 tolerance class ensures precision even under heavy radial loads.

Automotive vs Industrial: Applications of 6330 Bearing
In automotive settings, 6330 Bearing supports large components like wheel hubs, while in industry, it’s ideal for gearboxes. Its wide temperature range makes it versatile for various conditions.

Perfect Fit for Automation: 6330 Bearing
6330 Bearing works well in automated production lines, offering reliable performance in robotic arms and assembly systems. The metric sizing ensures compatibility with standard industrial equipment.
