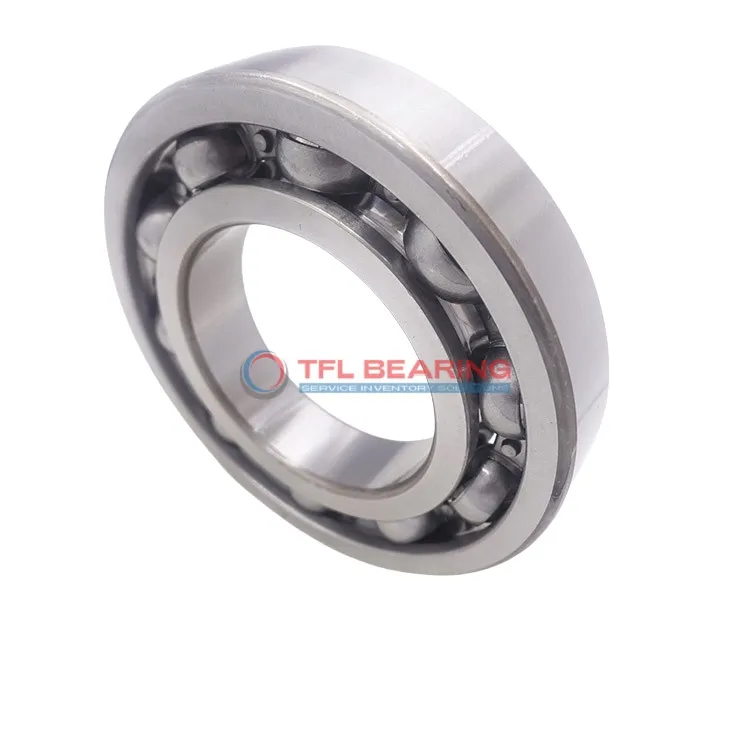

Single Row Deep Groove Ball Bearings 6330 M

Single Row Deep Groove Ball Bearings 6330 M

The 6330 M is a single-row deep groove ball bearing with a 150mm bore and 320mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 62047 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is compatible with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial motors or pumps where radial loads are predominant.

Weighing 25.5kg, it’s built to handle demanding conditions. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6330 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 320 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 65 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 62047 lbf
  • Static Radial Load 64071 lbf
  • Max Speed 4000 rpm
  • Weight 25.5 kg
  • price（$） 573.741
Single Row Deep Groove Ball Bearings 6330 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6330 M Bearing

6330 M Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 62047 lbf, making it suitable for heavy-duty applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 4,000 rpm, it delivers reliable performance in various conditions.

6330 M Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its open design allows for easy inspection and maintenance, saving time and effort.

Application

Industrial Uses of 6330 M Bearing
6330 M Bearing is commonly used in heavy machinery like industrial pumps and gearboxes, where its deep groove design handles radial loads efficiently. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6330 M Bearing supports components such as wheel hubs and transmissions, providing reliable performance under high stress. Its metric sizing makes it a versatile choice for various vehicle models.

For automation systems, 6330 M Bearing’s open design allows for easy integration into robotic arms and conveyor belts. The stainless steel cage adds longevity, even in continuous operation scenarios.

Where Is 6330 M Bearing Used?
You’ll find 6330 M Bearing in wind turbines, where its ability to handle radial loads and high speeds is crucial. The P6 tolerance class ensures precision in these critical applications.

The bearing also works well in agricultural equipment like harvesters, thanks to its robust construction. Its wide temperature range makes it suitable for outdoor use in varying climates.

Built for Heavy-Duty Use: 6330 M Bearing
6330 M Bearing excels in mining equipment, where its static radial load capacity withstands extreme conditions. The open seal type simplifies maintenance in dusty environments.

In construction machinery, this bearing supports heavy loads in cranes and excavators. Its 65 mm width provides stability, even under uneven stress distribution.

Light-Duty vs Heavy-Duty: Best Uses for 6330 M Bearing
For light-duty applications, 6330 M Bearing fits well in industrial fans, offering smooth rotation with minimal noise. The CN radial clearance ensures consistent performance over time.

In heavy-duty scenarios, it’s ideal for steel rolling mills, where high dynamic radial loads are common. The 25.5 kg weight reflects its sturdy build for such demanding tasks.
