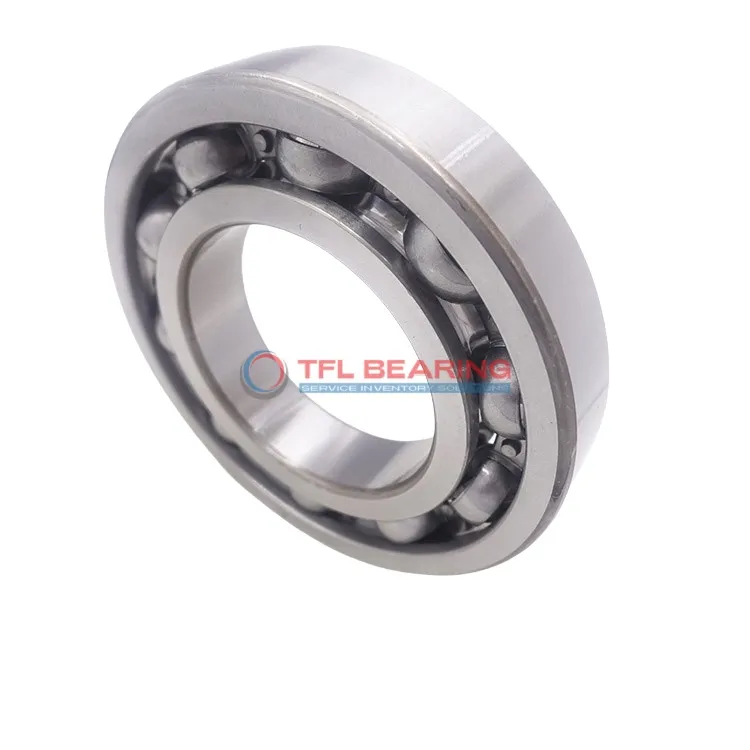

Single Row Deep Groove Ball Bearings 6330 M/C3S0

Single Row Deep Groove Ball Bearings 6330 M/C3S0

The 6330 M/C3S0 is a single-row deep groove ball bearing with a 150mm bore and 320mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 62047 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design simplifies maintenance, while the machined metal cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 150°C.

This model is compatible with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial motors or pumps where radial loads are predominant.

Weighing 25.5kg, it’s built to handle demanding conditions. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6330 M/C3S0
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 320 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 65 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 150 °C
  • Dynamic Radial Load 62047 lbf
  • Static Radial Load 64071 lbf
  • Max Speed 4000 rpm
  • Weight 25.5 kg
Single Row Deep Groove Ball Bearings 6330 M/C3S0 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6330 M/C3S0 Bearing

6330 M/C3S0 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 62047 lbf, ensuring reliable performance in heavy-duty applications.

The machined metal cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 4,000 rpm, it balances durability and efficiency in various conditions.

6330 M/C3S0 Bearing operates in temperatures from -30°C to 150°C, suitable for diverse environments.
Its C3 radial clearance provides optimal performance under varying thermal conditions.

The open design simplifies maintenance, making it a practical choice for industrial use.
Precision engineering ensures smooth operation, even under substantial radial loads.

Application

Industrial Uses of 6330 M/C3S0 Bearing
6330 M/C3S0 Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

In automotive applications, 6330 M/C3S0 Bearing fits well in wheel hubs and transmissions, providing reliable performance under high radial forces. Its C3 clearance ensures smooth operation even with thermal expansion.

For automation systems, 6330 M/C3S0 Bearing’s machined metal cage offers stability in robotic arms and conveyor belts. The chrome steel construction ensures durability in continuous operation.

Where Is 6330 M/C3S0 Bearing Used?
You’ll often find 6330 M/C3S0 Bearing in wind turbines, where its ability to handle radial loads and moderate speeds makes it a solid choice. The wide temperature range also suits outdoor environments.

In agricultural equipment, 6330 M/C3S0 Bearing supports components like harvesters and tractors, thanks to its robust design. The metric sizing ensures compatibility with various machinery brands.

Built for Heavy-Duty Use: 6330 M/C3S0 Bearing
6330 M/C3S0 Bearing excels in mining equipment, where its high static radial load capacity withstands harsh conditions. The ABEC 1 tolerance balances precision and cost-effectiveness.

For construction machinery, 6330 M/C3S0 Bearing’s durability makes it ideal for cranes and excavators. The chrome steel rings resist wear even under constant heavy loads.

Light-Duty vs Heavy-Duty: Best Uses for 6330 M/C3S0 Bearing
In light-duty applications like electric motors, 6330 M/C3S0 Bearing offers quiet operation and long life. The C3 clearance accommodates slight misalignments without compromising performance.

For heavy-duty industrial gearboxes, 6330 M/C3S0 Bearing’s high dynamic load rating ensures reliability. Its machined metal cage provides added strength in high-vibration environments.
