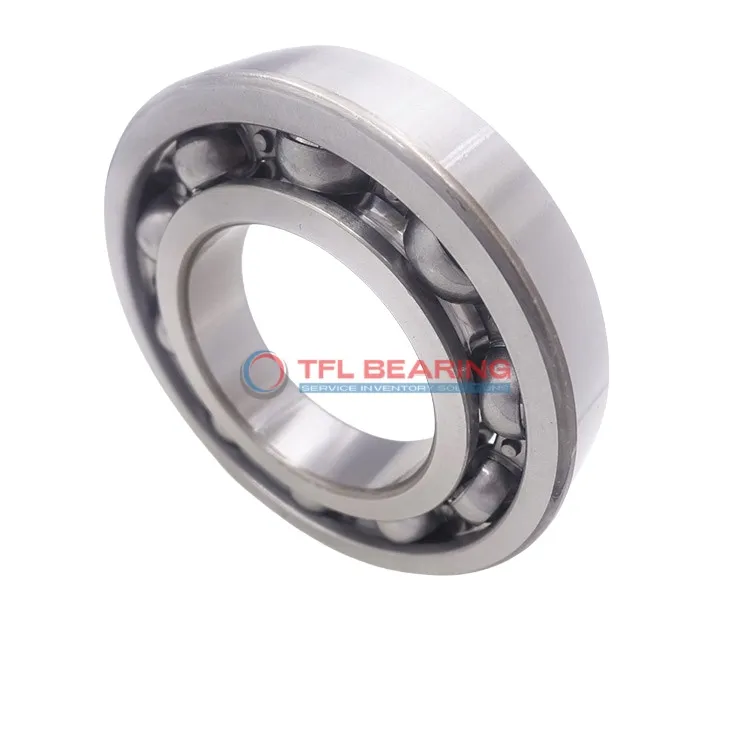

Single Row Deep Groove Ball Bearings 6330/C4HVL2071

Single Row Deep Groove Ball Bearings 6330/C4HVL2071

The 6330/C4HVL2071 is a single-row deep groove ball bearing with a 150mm bore and 320mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 62047 lbf and operates smoothly at speeds up to 2800 RPM.

Its open design simplifies maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial machinery or pumps where radial loads are prevalent.

Weighing 22.9kg, it’s built to handle demanding conditions. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6330/C4HVL2071
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 320 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 65 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 62047 lbf
  • Static Radial Load 64071 lbf
  • Max Speed 2800 rpm
  • Weight 22900 g
  • price（$） 503.028
Single Row Deep Groove Ball Bearings 6330/C4HVL2071 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6330/C4HVL2071 Bearing

6330/C4HVL2071 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 62047 lbf, making it suitable for heavy-duty applications.

The single-row deep groove design ensures smooth operation and efficient load distribution.
With a maximum speed of 2,800 rpm, it balances performance and durability.

6330/C4HVL2071 Bearing operates in temperatures from -30°C to 120°C, adapting to various environments.
Its open design simplifies maintenance, reducing long-term costs.

The C4 radial clearance provides flexibility in different operating conditions.
This makes 6330/C4HVL2071 Bearing a reliable choice for industrial applications.

Application

Industrial Uses of 6330/C4HVL2071 Bearing
The 6330/C4HVL2071 Bearing is commonly used in heavy machinery like industrial fans and pumps, where its deep groove design handles radial loads efficiently.
Its open seal type allows for easy lubrication, making it suitable for high-temperature environments up to 120°C.

Key Fields for 6330/C4HVL2071 Bearing
In automotive applications, 6330/C4HVL2071 Bearing supports components such as wheel hubs and transmissions, thanks to its robust chrome steel construction.
The C4 radial clearance ensures smooth operation even under varying load conditions.

Where to Use 6330/C4HVL2071 Bearing
For automation systems, 6330/C4HVL2071 Bearing is a reliable choice in conveyor belts and robotic arms, where precision and durability are key.
Its metric sizing makes it interchangeable with major brands like SKF, simplifying maintenance and replacements.

Practical Applications of 6330/C4HVL2071 Bearing
In consumer electronics, 6330/C4HVL2071 Bearing can be found in large appliances like washing machines, where its static radial load capacity ensures long-term performance.
The ISO P0 tolerance class guarantees consistent quality across various applications.
