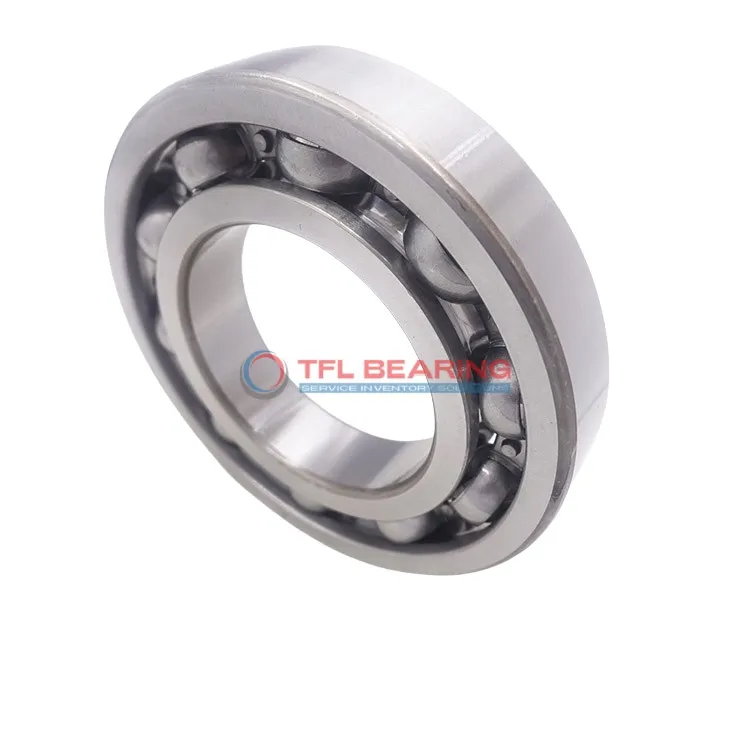

Single Row Deep Groove Ball Bearings 6330/C4

Single Row Deep Groove Ball Bearings 6330/C4

The 6330/C4 is a single-row deep groove ball bearing with a 150mm bore and 320mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 62047 lbf and operates smoothly at speeds up to 2800 RPM.

Its open design simplifies maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial machinery or pumps where radial loads are prevalent.

Weighing 22.9kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6330/C4
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 320 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 65 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 62047 lbf
  • Static Radial Load 64071 lbf
  • Max Speed 2800 rpm
  • Weight 22900 g
  • price（$） 526.365
Single Row Deep Groove Ball Bearings 6330/C4 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6330/C4 Bearing

6330/C4 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 62047 lbf.
Its single-row deep groove design ensures smooth operation, even at speeds of 2,800 rpm.

The C4 radial clearance provides flexibility in various applications, maintaining performance under different conditions.
With a temperature range of -30°C to 120°C, it suits diverse industrial environments.

6330/C4 Bearing’s open design simplifies maintenance, reducing downtime and operational costs.
Its durable construction ensures long service life, making it a reliable choice for heavy-duty use.

Application

Industrial Uses of 6330/C4 Bearing
6330/C4 Bearing is commonly used in heavy machinery like industrial pumps and large fans, where its deep groove design handles radial loads efficiently. The open seal allows for easy lubrication, extending its lifespan in demanding conditions.

Where Is 6330/C4 Bearing Used?
In automotive applications, 6330/C4 Bearing fits well in wheel hubs and transmissions, thanks to its robust chrome steel construction. Its C4 clearance ensures smooth performance even under varying temperatures.

Built for Heavy-Duty Use: 6330/C4 Bearing
For automation systems, 6330/C4 Bearing supports robotic arms and conveyor belts, where precision and durability are key. The metric sizing makes it versatile for global equipment standards.

Light-Duty vs Heavy-Duty: Best Uses for 6330/C4 Bearing
In consumer electronics, 6330/C4 Bearing can be found in large appliances like washing machines, providing quiet and reliable operation. Its chrome steel cage ensures minimal wear over time.
