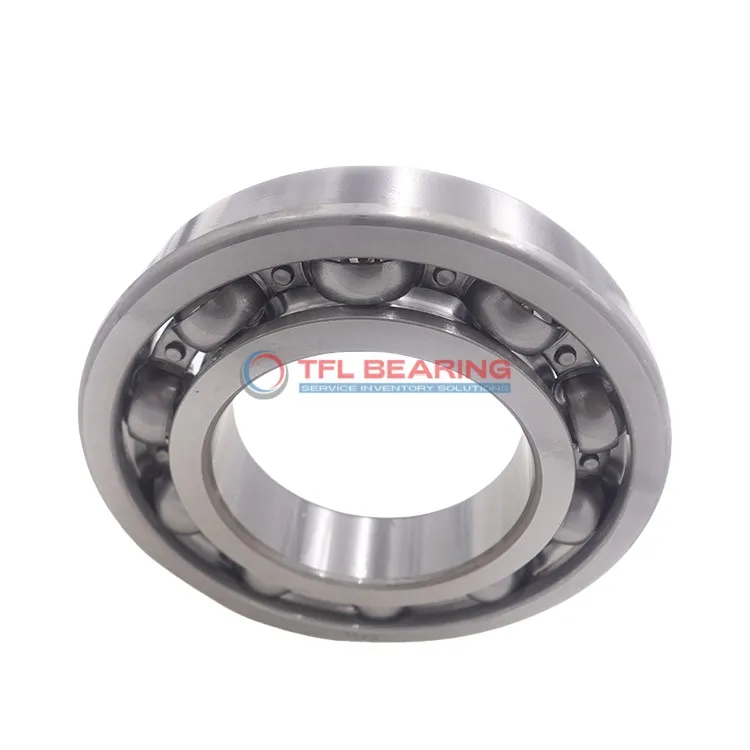

Single Row Deep Groove Ball Bearings 6328 M/C4VL2076

Single Row Deep Groove Ball Bearings 6328 M/C4VL2076

The 6328 M/C4VL2076 is a single-row deep groove ball bearing with a 140mm bore and 300mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 56427 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design and machined metal cage ensure durability, while the C4 radial clearance allows for thermal expansion in demanding conditions. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial machinery or pumps where radial load capacity is key.

Weighing 21.1kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6328 M/C4VL2076
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 300 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 62 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 56427 lbf
  • Static Radial Load 55078 lbf
  • Max Speed 4300 rpm
  • Weight 21.1 kg
  • price（$） 592.119
Single Row Deep Groove Ball Bearings 6328 M/C4VL2076 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6328 M/C4VL2076 Bearing

6328 M/C4VL2076 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 56427 lbf, making it suitable for heavy-duty applications.

The machined metal cage ensures precise ball alignment, enhancing durability and reducing friction.
With a maximum speed of 4,300 rpm, it balances performance and longevity.

6328 M/C4VL2076 Bearing operates in temperatures from -30° to 120°C, adapting to various environments.
Its open design simplifies maintenance while maintaining reliable operation.

The C4 radial clearance provides flexibility, ensuring smooth performance under different conditions.
This bearing is ideal for applications requiring consistent radial load support.

Application

Common Applications of 6328 M/C4VL2076 Bearing
In industrial settings, 6328 M/C4VL2076 Bearing is widely used in heavy machinery like pumps and compressors, thanks to its robust radial load capacity. The open design and C4 clearance make it suitable for high-temperature environments.

Where Is 6328 M/C4VL2076 Bearing Used?
You’ll often find 6328 M/C4VL2076 Bearing in conveyor systems and agricultural equipment, where its durability handles continuous operation. The chrome steel construction ensures long service life even under demanding conditions.

Built for Heavy-Duty Use: 6328 M/C4VL2076 Bearing
This bearing excels in construction equipment like cranes and excavators, where its high static radial load rating provides stability. The machined metal cage adds extra strength for rough applications.

Automotive vs Industrial: Applications of 6328 M/C4VL2076 Bearing
In automotive wheel hubs, 6328 M/C4VL2076 Bearing offers smooth rotation, while in industrial gearboxes, it handles high radial loads effortlessly. Its versatility makes it a go-to choice across sectors.

Perfect Fit for Automation: 6328 M/C4VL2076 Bearing
For robotic arms and automated assembly lines, 6328 M/C4VL2076 Bearing ensures precise movement with minimal friction. The ABEC 1 tolerance balances performance and cost for these applications.
