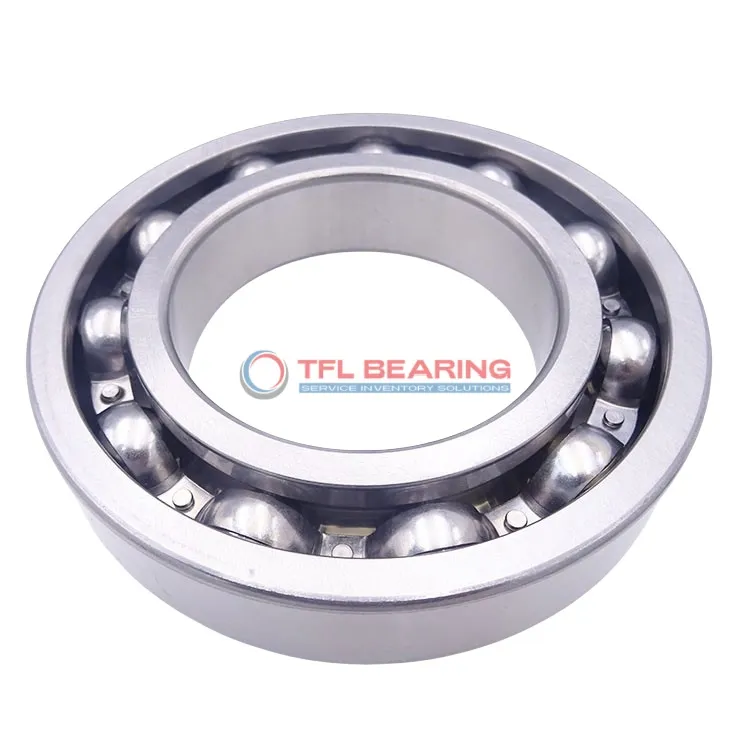

Single Row Deep Groove Ball Bearings 6324

Single Row Deep Groove Ball Bearings 6324

The 6324 is a single-row deep groove ball bearing with a 120mm bore and 260mm outer diameter, crafted from sturdy chrome steel for lasting performance. It manages radial loads up to 4676 lbf and operates smoothly at speeds reaching 3400 RPM.

Its open design simplifies maintenance, while the P6 tolerance ensures precise fit and reliable operation. The bearing performs well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for industrial machinery or heavy equipment where radial load support is key.

Weighing 12.7kg, it’s built for durability in demanding environments. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6324
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 260 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 55 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 4676 lbf
  • Static Radial Load 41814 lbf
  • Max Speed 3400 rpm
  • Weight 12700 g
  • price（$） 203.94
Single Row Deep Groove Ball Bearings 6324 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6324 Bearing

6324 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 4676 lbf, making it suitable for demanding applications.

The single row deep groove design ensures smooth operation and reduces friction.
With a maximum speed of 3,400 rpm, it balances performance and durability.

6324 Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its open seal type allows for easy maintenance and inspection.

The P6 tolerance class ensures high precision and reliability.
This makes 6324 Bearing a dependable choice for various industrial uses.

Application

Industrial Uses of 6324 Bearing
The 6324 Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its single-row design handles radial loads efficiently. Its chrome steel construction ensures durability in demanding environments.

Where Is 6324 Bearing Used?
You’ll often find the 6324 Bearing in conveyor systems and gearboxes, thanks to its high static radial load capacity. The open seal design makes it easy to maintain in dusty or humid conditions.

Built for Heavy-Duty Use: 6324 Bearing
This bearing excels in applications like agricultural equipment, where its 260 mm outer diameter provides stability under heavy loads. The P6 tolerance class ensures precise performance in critical machinery.

Automotive vs Industrial: Applications of 6324 Bearing
In automotive settings, the 6324 Bearing supports components like wheel hubs, while in industrial use, it’s ideal for large electric motors. Its wide temperature range (-30° to 120°C) suits varied operating conditions.
