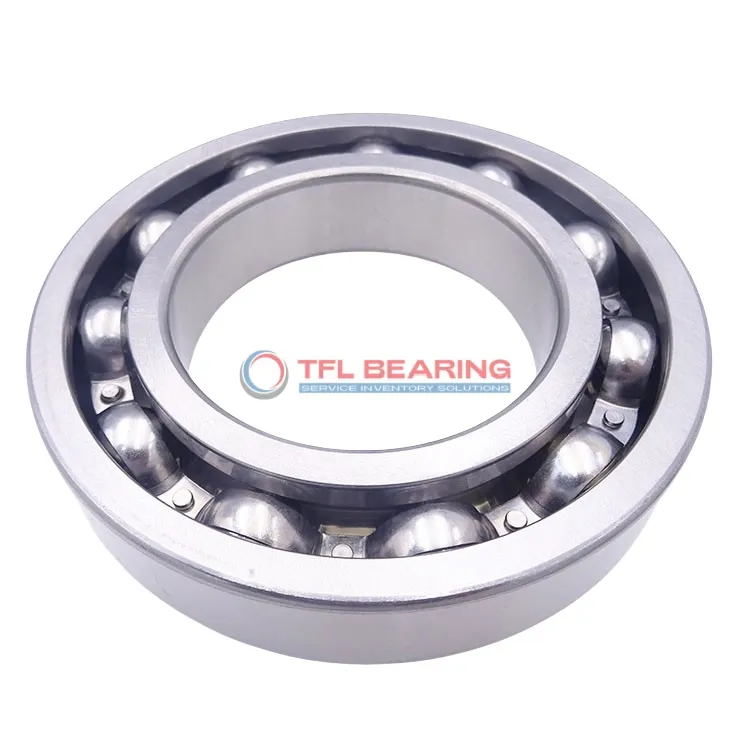

Single Row Deep Groove Ball Bearings 6324/C4VK174

Single Row Deep Groove Ball Bearings 6324/C4VK174

The 6324/C4VK174 is a single-row deep groove ball bearing with a 120mm bore and 260mm outer diameter, crafted from sturdy chrome steel for durability. It manages radial loads up to 4676 lbf and operates smoothly at speeds up to 3400 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures reliable performance under stress. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is compatible with SKF bearings, making it a practical choice for replacements. Suitable for industrial machinery or heavy equipment where radial loads are prevalent.

Weighing 12.7kg, it’s built to handle demanding conditions. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6324/C4VK174
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 260 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 55 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4676 lbf
  • Static Radial Load 41814 lbf
  • Max Speed 3400 rpm
  • Weight 12700 g
  • price（$） 266.742
Single Row Deep Groove Ball Bearings 6324/C4VK174 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6324/C4VK174 Bearing

6324/C4VK174 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 4676 lbf, making it suitable for various industrial applications.

The open design of 6324/C4VK174 Bearing allows for easy lubrication and maintenance.
With a maximum speed of 3,400 rpm, it provides reliable performance in demanding conditions.

6324/C4VK174 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its chrome steel cage ensures proper ball alignment, reducing wear and extending service life.

The C4 radial clearance in 6324/C4VK174 Bearing accommodates thermal expansion during operation.
This feature enhances its durability and performance under varying thermal conditions.

Application

Industrial Uses of 6324/C4VK174 Bearing
The 6324/C4VK174 Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its radial load capacity ensures reliable performance. Its open design and C4 clearance make it suitable for applications with thermal expansion needs.

In automotive applications, 6324/C4VK174 Bearing fits well in wheel hubs and transmission systems, offering durability under high radial loads. The chrome steel construction provides long-lasting wear resistance, even in demanding conditions.

For automation equipment, 6324/C4VK174 Bearing supports smooth operation in robotic arms and conveyor belts. Its metric sizing and ABEC 1 tolerance make it a versatile choice for precision engineering.

In wind turbines, 6324/C4VK174 Bearing handles variable loads and speeds, thanks to its robust design. The wide temperature range ensures performance in both hot and cold environments.
