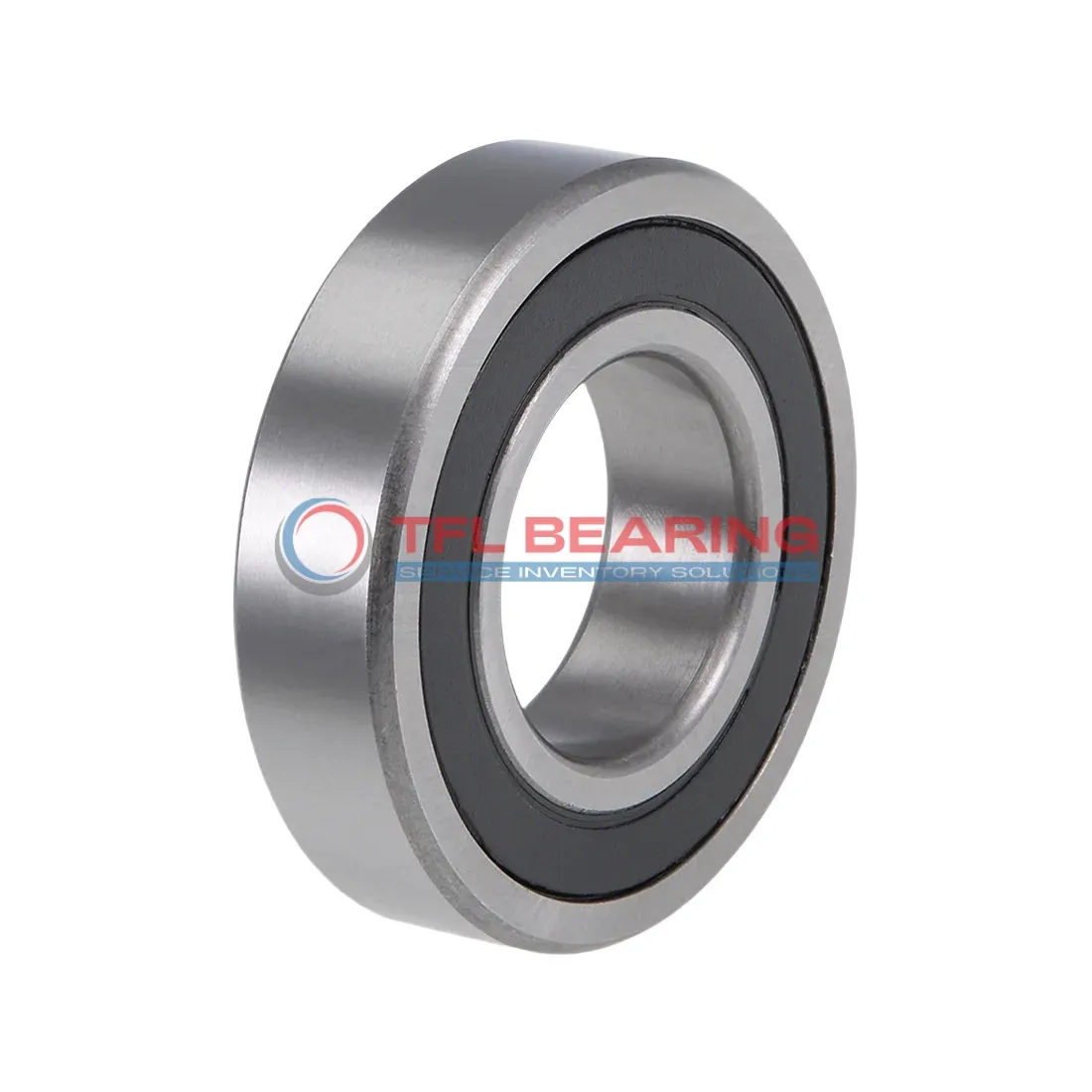

Single Row Deep Groove Ball Bearings 6324-2RS1

Single Row Deep Groove Ball Bearings 6324-2RS1

The 6324-2RS1 is a sealed single-row deep groove ball bearing with a 120mm bore and 260mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 46760 lbf and operates smoothly at speeds up to 1700 RPM.

Its sealed design keeps grease in and dirt out, extending its lifespan, while the stainless steel cage adds durability. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for heavy-duty machinery like pumps or electric motors where radial loads are common.

Weighing 12.7kg, it’s built to handle tough conditions while complying with RoHS and REACH standards for safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6324-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 260 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 55 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 46760 lbf
  • Static Radial Load 41814 lbf
  • Max Speed 1700 rpm
  • Weight 12.7 kg
Single Row Deep Groove Ball Bearings 6324-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does 6324-2RS1 Bearing Reduce Friction?

6324-2RS1 Bearing features a sealed design with grease lubrication, ensuring smooth operation and reduced friction.
Its chrome steel rings and balls provide durability, while the stainless steel cage maintains proper ball alignment.

The deep groove design of 6324-2RS1 Bearing enhances load distribution, minimising wear over time.
With a dynamic radial load capacity of 46760 lbf, it handles heavy radial loads efficiently.

6324-2RS1 Bearing operates within a temperature range of -30° to 120°C, suitable for various environments.
Its P6 tolerance class ensures precision, making it reliable for industrial applications.

The sealed construction of 6324-2RS1 Bearing protects against contaminants, extending its service life.
Weighing 12.7 kg, it balances robust construction with practical handling.

Application

Common Applications of 6324-2RS1 Bearing
In industrial settings, 6324-2RS1 Bearing is widely used in heavy machinery like pumps and compressors, where its sealed design protects against contaminants. The chrome steel construction ensures durability even in demanding environments.

Where Is 6324-2RS1 Bearing Used?
You’ll often find 6324-2RS1 Bearing in automotive applications such as wheel hubs and transmissions, thanks to its ability to handle high radial loads. Its grease lubrication also reduces maintenance needs for long-term use.

Built for Heavy-Duty Use: 6324-2RS1 Bearing
This bearing excels in conveyor systems and agricultural equipment, where its robust design and P6 tolerance class provide reliable performance. The stainless steel cage adds extra resistance to wear and corrosion.

Automotive vs Industrial: Applications of 6324-2RS1 Bearing
In cars, 6324-2RS1 Bearing supports smooth rotation in drivetrains, while in factories, it’s a go-to for gearboxes and motors. Its metric sizing makes it versatile across different machinery types.

Perfect Fit for Automation: 6324-2RS1 Bearing
For robotic arms and automated assembly lines, 6324-2RS1 Bearing offers precise movement with minimal friction. The sealed design keeps out dust, ensuring consistent operation in clean environments.
