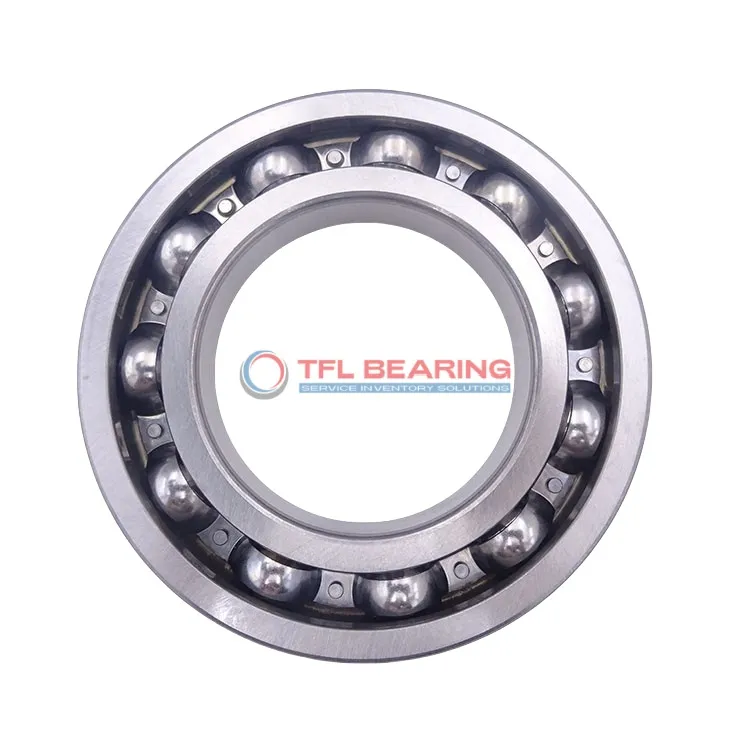

Single Row Deep Groove Ball Bearings 6322/W64F

Single Row Deep Groove Ball Bearings 6322/W64F

The 6322/W64F is a single-row deep groove ball bearing with a 110mm bore and 240mm outer diameter, crafted from durable chrome steel. It supports radial loads up to 45636 lbf and operates smoothly at speeds up to 3800 RPM.

Its solid oil lubrication ensures long service life with minimal maintenance, while the open design allows for easy inspection. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial motors or pumps where radial loads are predominant.

Weighing 9660g, it’s built to handle demanding conditions. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6322/W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 240 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 50 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 45636 lbf
  • Static Radial Load 40466 lbf
  • Max Speed 3800 rpm
  • Weight 9660 g
  • price（$） 199.197
Single Row Deep Groove Ball Bearings 6322/W64F dimension drawing
Download DWG Download PDF

Features

Performance Features of 6322/W64F Bearing

6322/W64F Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 45,636 lbf, ensuring reliable performance in various applications.

The solid oil lubrication reduces friction, enhancing smooth operation and longevity.
With a maximum speed of 3,800 rpm, it balances durability and efficiency.

6322/W64F Bearing operates in temperatures from -30°C to 120°C, suitable for diverse environments.
Its open design simplifies maintenance, making it a practical choice for industrial use.

Application

Industrial Uses of 6322/W64F Bearing
This bearing is commonly used in heavy machinery like pumps and compressors, where its deep groove design handles radial loads efficiently. The solid oil lubrication ensures long service life even in demanding conditions.

In automotive applications, 6322/W64F Bearing fits well in wheel hubs and transmissions, providing smooth rotation under high loads. Its chrome steel construction offers durability against wear and tear.

For automation systems, 6322/W64F Bearing supports robotic arms and conveyor belts, ensuring reliable performance. The open seal design allows for easy maintenance in dusty environments.

Where Is 6322/W64F Bearing Used?
You’ll find this bearing in agricultural equipment like harvesters, where its robust design withstands rough conditions. The metric sizing makes it compatible with various European machinery standards.

In industrial fans, 6322/W64F Bearing reduces friction and noise, enhancing operational efficiency. Its temperature range suits both indoor and outdoor applications.

Built for Heavy-Duty Use: 6322/W64F Bearing
This bearing excels in construction equipment, handling heavy radial loads without compromising performance. The ABEC 1 tolerance ensures consistent operation in less precision-critical applications.

For food processing machinery, 6322/W64F Bearing’s solid oil lubrication prevents contamination. Its chrome steel balls provide reliable rotation even in wet environments.

Light-Duty vs Heavy-Duty: Best Uses for 6322/W64F Bearing
In light-duty scenarios like office printers, this bearing offers quiet operation and longevity. The open design simplifies lubrication for maintenance staff.

For heavy-duty uses such as mining equipment, 6322/W64F Bearing’s high dynamic load capacity ensures durability. Its wide temperature range adapts to extreme working conditions.
