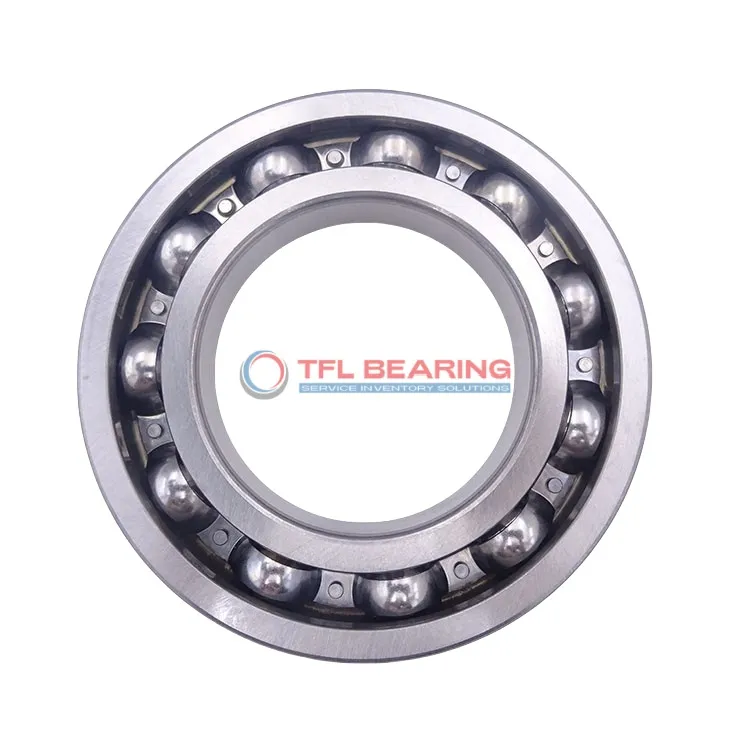

Single Row Deep Groove Ball Bearings 6322 MA/C3B20

Single Row Deep Groove Ball Bearings 6322 MA/C3B20

The 6322 MA/C3B20 is a single-row deep groove ball bearing with a 110mm bore and 240mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 45636 lbf and operates smoothly at speeds up to 5300 RPM.

Its open design and machined metal cage ensure durability and easy maintenance. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for industrial machinery or heavy equipment where radial loads are common.

Weighing 11.1kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6322 MA/C3B20
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 240 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 50 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 45636 lbf
  • Static Radial Load 40466 lbf
  • Max Speed 5300 rpm
  • Weight 11.1 kg
Single Row Deep Groove Ball Bearings 6322 MA/C3B20 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6322 MA/C3B20 Bearing

6322 MA/C3B20 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 45636 lbf.
Its machined metal cage ensures precise ball alignment, enhancing durability and reducing friction.
The C3 radial clearance allows for thermal expansion, making it suitable for varied operating conditions.
With a maximum speed of 5,300 rpm, it delivers reliable performance in industrial applications.

Application

Industrial Uses of 6322 MA/C3B20 Bearing
The 6322 MA/C3B20 Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its radial load capacity ensures reliable performance.
Its open design and C3 clearance make it suitable for applications with thermal expansion or high-speed variations.

Where Is 6322 MA/C3B20 Bearing Used?
In automotive applications, 6322 MA/C3B20 Bearing supports components like wheel hubs and transmissions, thanks to its robust chrome steel construction.
The machined metal cage adds durability, making it a dependable choice for long-term use.

Built for Heavy-Duty Use: 6322 MA/C3B20 Bearing
For automation systems, 6322 MA/C3B20 Bearing works well in robotic arms and conveyor belts, handling moderate to high radial loads with ease.
Its ISO P0 tolerance ensures consistent performance in precision-driven environments.

Automotive vs Aerospace: Applications of 6322 MA/C3B20 Bearing
In automotive settings, 6322 MA/C3B20 Bearing excels in drivetrain components, while its aerospace uses include auxiliary machinery due to its temperature resilience.
The bearing’s metric sizing allows for seamless integration across various equipment types.

Key Fields for 6322 MA/C3B20 Bearing
The 6322 MA/C3B20 Bearing is ideal for agricultural machinery, such as tractors and harvesters, where its static radial load capacity is crucial.
Its wide temperature range also makes it adaptable to outdoor and harsh working conditions.
