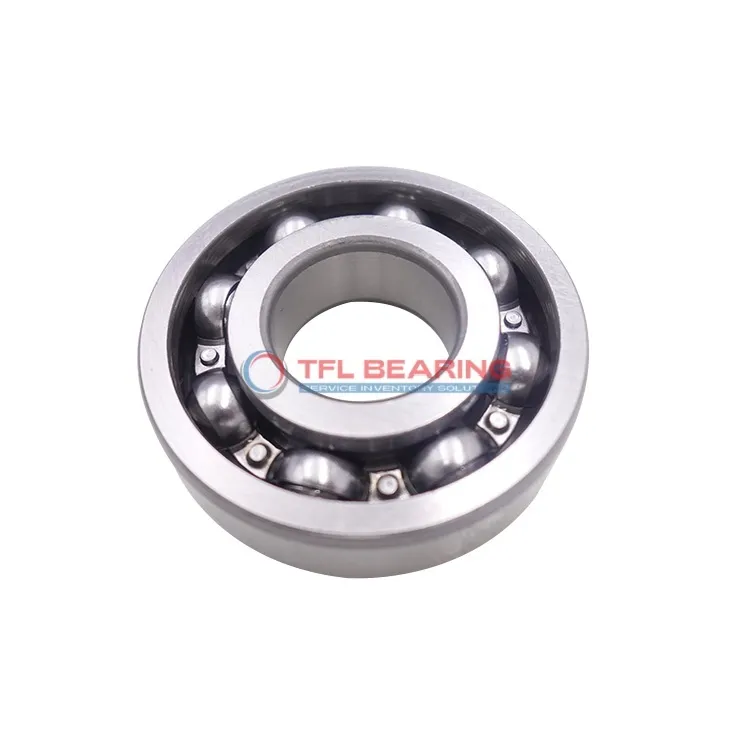

Single Row Deep Groove Ball Bearings 6320

Single Row Deep Groove Ball Bearings 6320

The 6320 is a single-row deep groove ball bearing with a 100mm bore and 215mm outer diameter, crafted from sturdy chrome steel for lasting performance. It handles radial loads up to 38892 lbf and operates smoothly at speeds up to 2800 RPM.

Its open design simplifies lubrication, while the stainless steel cage ensures durability under stress. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical alternative for replacements. Suitable for machinery like pumps or electric motors where radial load support is key.

Weighing 7040g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6320
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 47 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Required
  • REACH Compliant
  • Temperature Range -30° to 110 °C
  • Dynamic Radial Load 38892 lbf
  • Static Radial Load 31698 lbf
  • Max Speed 2800 rpm
  • Weight 7040 g
  • price（$） 84.6
Single Row Deep Groove Ball Bearings 6320 dimension drawing
Download DWG Download PDF

Features

Core Advantages of 6320 Bearing

6320 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 38,892 lbf, ensuring reliable performance in various applications.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 2,800 rpm, it provides a balance of durability and efficiency.

6320 Bearing operates smoothly in temperatures from -30° to 110°C.
Its open design allows for easy lubrication, enhancing long-term performance.

Application

Industrial Uses of 6320 Bearing
6320 Bearing is commonly used in heavy machinery like industrial pumps and electric motors, where its deep groove design handles radial loads efficiently. The open seal type simplifies lubrication, ideal for high-duty cycles in manufacturing plants.

What Makes 6320 Bearing a Preferred Choice?
In automotive applications, 6320 Bearing fits well in wheel hubs and transmission systems due to its balanced load capacity. The chrome steel construction ensures longevity even under constant vibration and stress.

Perfect Fit for Automation: 6320 Bearing
For robotic arms and conveyor systems, 6320 Bearing offers smooth rotation with minimal maintenance. Its ABEC-1 tolerance provides reliable precision for repetitive tasks in automated production lines.

Medical vs Industrial: Where 6320 Bearing Excels
While 6320 Bearing suits industrial gearboxes, its clean operation also makes it viable for medical centrifuges. The stainless steel cage prevents contamination in sensitive environments.

Essential Roles of 6320 Bearing
In household appliances like washing machines, 6320 Bearing reduces noise during spin cycles. The metric dimensions ensure easy replacement in European and Asian appliance models.
