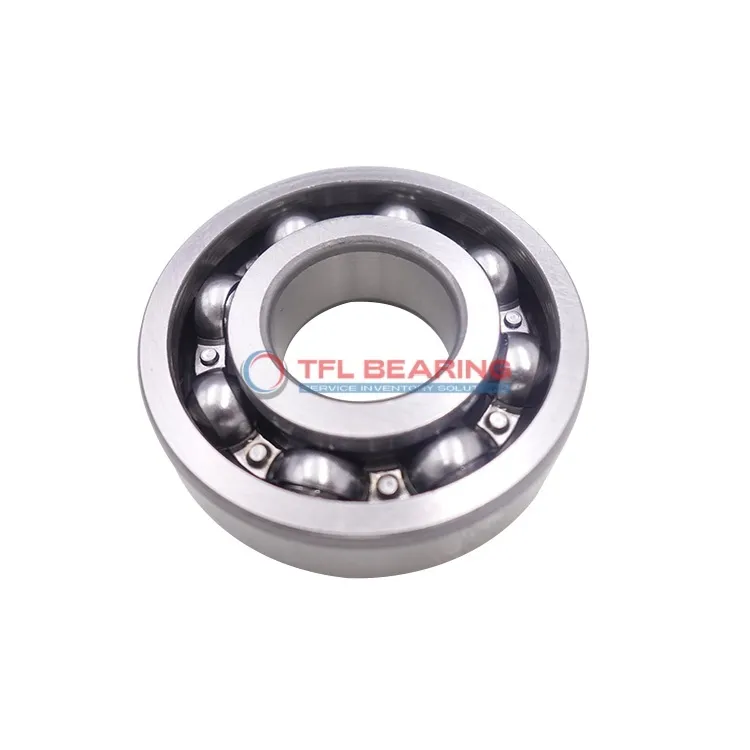

Single Row Deep Groove Ball Bearings 6320 JEM

Single Row Deep Groove Ball Bearings 6320 JEM

The 6320 JEM is a single-row deep groove ball bearing with a 100mm bore and 215mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 38892 lbf and operates smoothly at speeds up to 2800 RPM.

Its open design simplifies maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 7040g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6320 JEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 47 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 38892 lbf
  • Static Radial Load 31698 lbf
  • Max Speed 2800 rpm
  • Weight 7040 g
  • price（$） 92.385
Single Row Deep Groove Ball Bearings 6320 JEM dimension drawing
Download DWG Download PDF

Features

Performance Features of 6320 JEM Bearing

6320 JEM Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 38,892 lbf, ensuring reliable performance in various applications.

The single-row deep groove design enhances load distribution, reducing stress on the bearing components.
With a maximum speed of 2,800 rpm, it balances durability and efficiency for industrial use.

6320 JEM Bearing operates smoothly in temperatures ranging from -30°C to 120°C, making it versatile.
Its open design simplifies maintenance, while the chrome steel cage ensures long-lasting alignment.

Application

Common Applications of 6320 JEM Bearing
In industrial settings, 6320 JEM Bearing is widely used in heavy machinery like pumps and compressors, thanks to its robust radial load capacity. The open design simplifies lubrication, ensuring long service life in demanding conditions.

Where Is 6320 JEM Bearing Used?
You’ll often find 6320 JEM Bearing in automotive applications such as wheel hubs and transmissions, where its durability handles high radial loads effortlessly. Its metric sizing makes it a versatile fit for various vehicle designs.

Ideal for Precision: 6320 JEM Bearing
For medical imaging devices, 6320 JEM Bearing’s chrome steel construction ensures smooth, reliable operation. The consistent performance is key in equipment where precision is non-negotiable.

Automotive vs Industrial: Applications of 6320 JEM Bearing
In automotive systems, 6320 JEM Bearing supports wheel hubs, while in industrial gearboxes, it manages radial loads with ease. Its adaptability makes it a go-to for diverse mechanical needs.

Practical Applications of 6320 JEM Bearing
In home appliances like washing machines, 6320 JEM Bearing provides quiet and efficient operation. The chrome steel build ensures it stands up to daily wear and tear.
