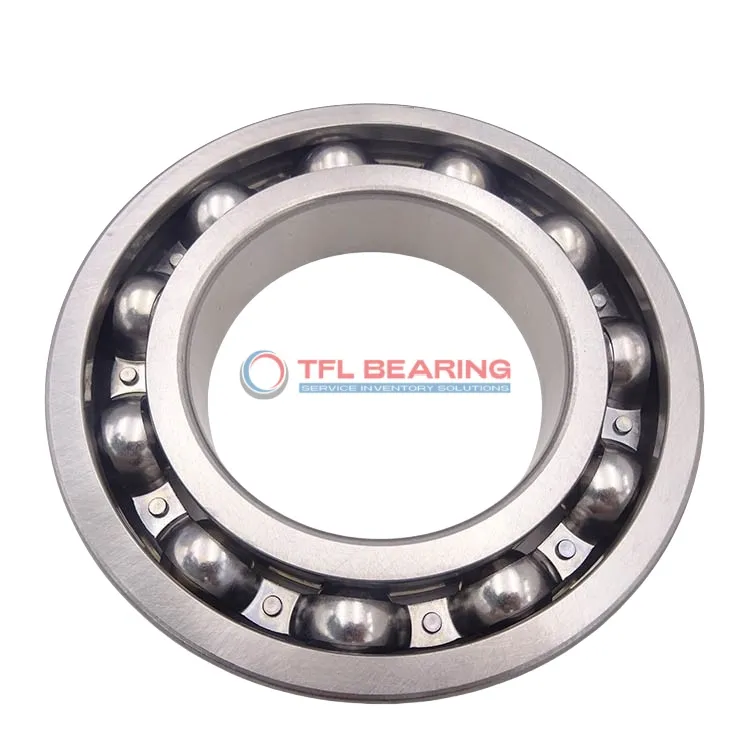

Single Row Deep Groove Ball Bearings 6320/C5VL0241

Single Row Deep Groove Ball Bearings 6320/C5VL0241

The 6320/C5VL0241 is a single-row deep groove ball bearing with a 100mm bore and 215mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 38892 lbf and operates smoothly at speeds up to 2800 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 7040g, it’s a robust option for heavy-duty use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6320/C5VL0241
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C5
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 47 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 38892 lbf
  • Static Radial Load 31698 lbf
  • Max Speed 2800 rpm
  • Weight 7040 g
  • price（$） 257.094
Single Row Deep Groove Ball Bearings 6320/C5VL0241 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6320/C5VL0241 Bearing

6320/C5VL0241 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 38892 lbf.
Its C5 radial clearance ensures smooth operation, making it suitable for various industrial applications.

The single-row deep groove design provides reliable performance under radial loads.
With a maximum speed of 2,800 rpm, it balances durability and efficiency in demanding conditions.

6320/C5VL0241 Bearing operates in temperatures ranging from -30°C to 120°C, ensuring versatility.
Its open seal type allows for easy maintenance and inspection, reducing downtime.

Application

Industrial Uses of 6320/C5VL0241 Bearing
The 6320/C5VL0241 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its deep groove design handles radial loads efficiently.
Its open seal and C5 clearance make it suitable for applications with moderate speed and temperature variations.

Where Is 6320/C5VL0241 Bearing Used?
In automotive applications, 6320/C5VL0241 Bearing supports components like alternators and water pumps, ensuring reliable performance under continuous use.
The chrome steel construction provides durability, while the metric sizing fits standard European and Asian vehicle designs.

Perfect Fit for Automation: 6320/C5VL0241 Bearing
This bearing works well in robotic arms and automated production lines, where smooth rotation and low maintenance are key.
The ABEC 1 tolerance ensures consistent performance without requiring frequent adjustments.

Light-Duty vs Heavy-Duty: Best Uses for 6320/C5VL0241 Bearing
For light-duty applications like electric motors, 6320/C5VL0241 Bearing offers a balance of load capacity and speed.
In heavier settings like agricultural equipment, its robust construction handles demanding conditions with ease.

Medical vs Industrial: Where 6320/C5VL0241 Bearing Excels
While not typically used in medical devices, 6320/C5VL0241 Bearing is ideal for industrial pumps and compressors.
Its temperature range and load capacity make it a dependable choice for harsh environments.
