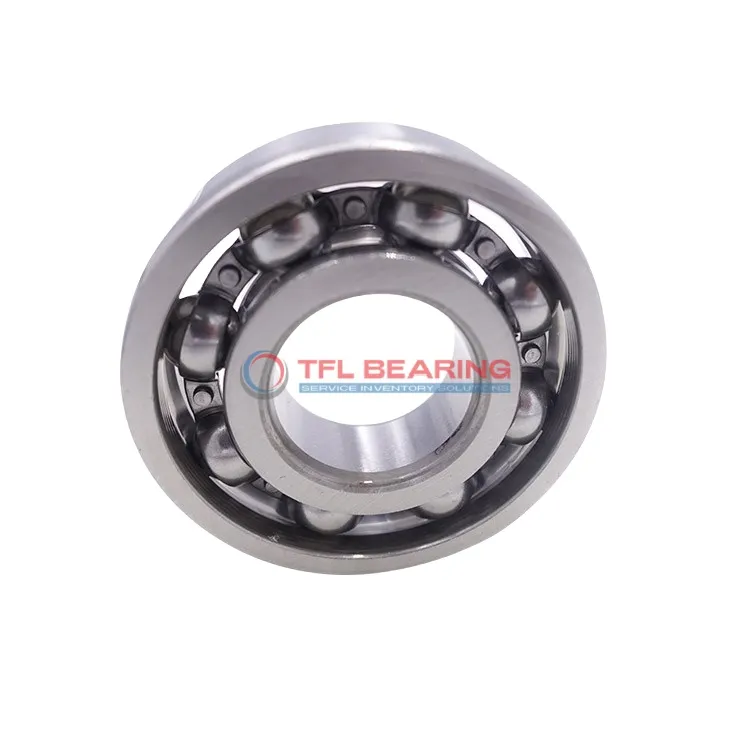

Single Row Deep Groove Ball Bearings 6319 JEM

Single Row Deep Groove Ball Bearings 6319 JEM

The 6319 JEM is a single-row deep groove ball bearing with a 95mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 34396 lbf and operates smoothly at speeds up to 3000 RPM.

Its open design simplifies maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for machinery like pumps or electric motors where radial loads are prevalent.

Weighing 5760g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6319 JEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 45 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 34396 lbf
  • Static Radial Load 26752 lbf
  • Max Speed 3000 rpm
  • Weight 5760 g
  • price（$） 97.56
Single Row Deep Groove Ball Bearings 6319 JEM dimension drawing
Download DWG Download PDF

Features

Performance Features of 6319 JEM Bearing

6319 JEM Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 34396 lbf, ensuring reliable performance in various applications.

The single-row deep groove design of 6319 JEM Bearing allows for smooth operation under radial forces.
With a maximum speed of 3,000 rpm, it balances durability and efficiency in demanding conditions.

6319 JEM Bearing operates effectively in temperatures ranging from -30°C to 120°C.
Its open seal design simplifies maintenance while providing consistent performance.

The chrome steel cage in 6319 JEM Bearing ensures proper ball alignment, reducing wear.
This design extends the bearing’s service life, making it a cost-effective choice.

Application

Industrial Uses of 6319 JEM Bearing
6319 JEM Bearing is commonly used in heavy machinery like pumps and compressors, where its radial load capacity ensures stable operation. The open design allows for easy lubrication, extending service life in demanding conditions.

Where Is 6319 JEM Bearing Used?
In automotive applications, 6319 JEM Bearing fits well in wheel hubs and transmissions, thanks to its durable chrome steel construction. Its metric dimensions make it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: 6319 JEM Bearing
For industrial fans and blowers, 6319 JEM Bearing handles high speeds and radial loads with ease. The ABEC 1 tolerance ensures reliable performance without unnecessary precision costs.

Automotive vs Industrial: Applications of 6319 JEM Bearing
In automotive systems, 6319 JEM Bearing supports wheel assemblies, while in industrial settings, it excels in conveyor systems. Its wide temperature range makes it adaptable to different environments.

Perfect Fit for Automation: 6319 JEM Bearing
6319 JEM Bearing works smoothly in robotic arms and assembly lines, where consistent performance is key. The chrome steel cage adds durability, reducing maintenance needs over time.
