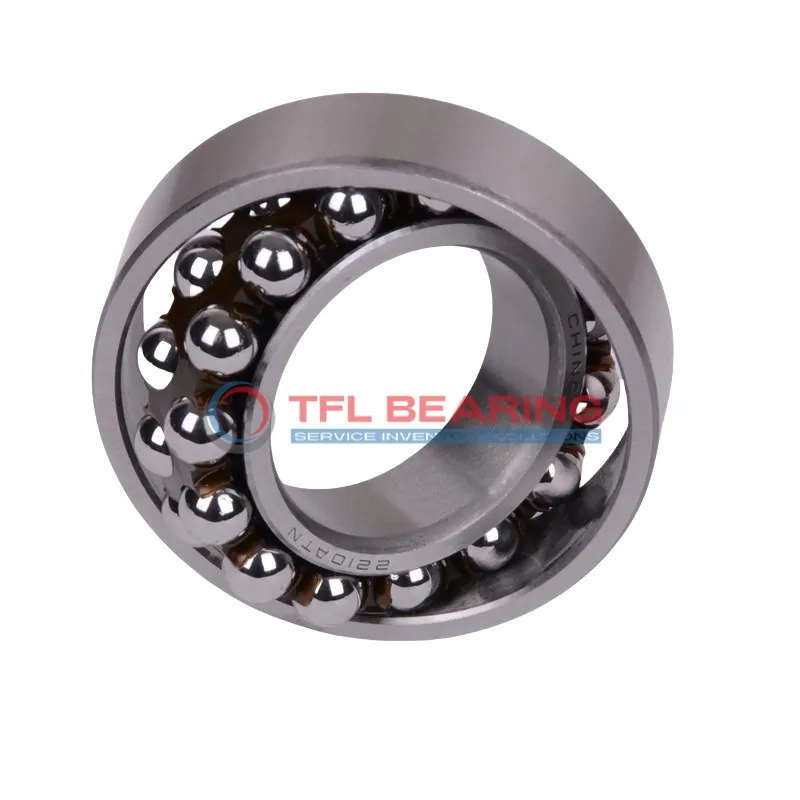

Self Aligning Ball Bearings 2206ETN

Self Aligning Ball Bearings 2206ETN

The 2206ETN is a self-aligning ball bearing with a 30mm bore and 62mm outer diameter, designed for radial loads. It handles dynamic loads up to 3510 lbf and operates smoothly at speeds up to 7500 RPM.

Made from chrome steel with a nylon cage, it offers durability and quiet performance. The sealed design keeps lubrication in and contaminants out, reducing maintenance needs.

Its double-row construction allows for slight misalignment, making it ideal for applications like conveyor systems or electric motors. The bearing works in temperatures from -30°C to 110°C.

Weighing 0.26kg, it’s a compact yet robust choice. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2206ETN
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 36.7 mm
  • Internal Diameter On Outer Ring 54.06 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3510 lbf
  • Static Radial Load 1046 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7500 rpm
  • Weight 0.26 kg
  • Price（$） 38.16
Self Aligning Ball Bearings 2206ETN dimension drawing
Download DWG Download PDF

Features

Engineered for Precision: 2206ETN Bearing

2206ETN Bearing features a double-row design with chrome steel rings and balls, ensuring reliable radial load handling.
Its dynamic radial load capacity of 3510 lbf makes it suitable for demanding applications.

The sealed construction and nylon cage help maintain smooth operation while reducing wear.
With a maximum speed of 7,500 rpm, it balances performance and durability.

2206ETN Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its lubricated design ensures consistent performance with minimal maintenance.

The precise chamfer dimension of 1 mm allows for easy installation.
This design reduces friction and extends the bearing’s service life.

Application

Industrial Uses of 2206ETN Bearing
2206ETN Bearing is commonly used in industrial machinery like conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending its lifespan in dusty environments.

Where Is 2206ETN Bearing Used?
In automotive applications, 2206ETN Bearing fits well in gearboxes and wheel hubs, thanks to its radial load capacity. The nylon cage reduces friction, making it suitable for high-speed rotations.

Perfect Fit for Automation: 2206ETN Bearing
For robotic arms and automated production lines, 2206ETN Bearing offers smooth movement with minimal maintenance. Its double-row construction ensures stability even under varying loads.

Light-Duty vs Heavy-Duty: Best Uses for 2206ETN Bearing
In light-duty scenarios like office printers, 2206ETN Bearing provides quiet operation. For heavier tasks such as agricultural equipment, its chrome steel rings handle stress effectively.

Medical vs Industrial: Where 2206ETN Bearing Excels
While 2206ETN Bearing isn’t typically used in medical devices, it shines in industrial settings like packaging machines. The lubricated design ensures consistent performance over long periods.
