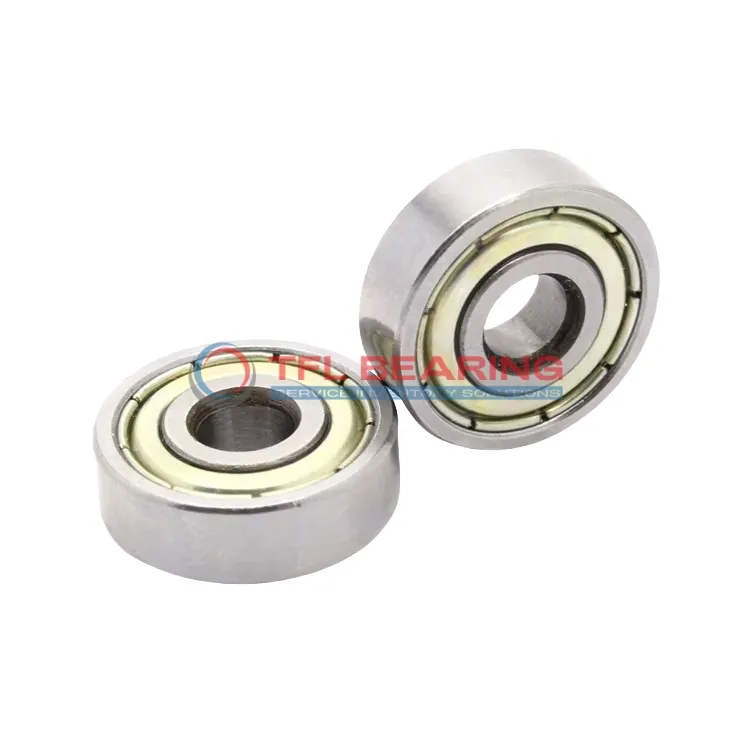

Single Row Deep Groove Ball Bearings 6319-2ZJEM

Single Row Deep Groove Ball Bearings 6319-2ZJEM

The 6319-2ZJEM is a single-row deep groove ball bearing with a 95mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 34396 lbf and operates smoothly at speeds up to 3000 RPM.

Its shielded design keeps dirt out while maintaining easy access for lubrication. The chrome steel cage enhances durability, making it suitable for heavy-duty use.

This bearing works well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Ideal for industrial machinery or automotive applications where reliability is key.

Weighing 5760g, it’s built to handle tough conditions while complying with RoHS and REACH standards. A practical choice for engineers needing robust performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6319-2ZJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 45 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 34396 lbf
  • Static Radial Load 26752 lbf
  • Max Speed 3000 rpm
  • Weight 5760 g
  • price（$） 80.217
Single Row Deep Groove Ball Bearings 6319-2ZJEM dimension drawing
Download DWG Download PDF

Features

Performance Features of 6319-2ZJEM Bearing

6319-2ZJEM Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 34396 lbf, ensuring reliable performance in various applications.

The shielded design of 6319-2ZJEM Bearing protects against contaminants, extending its service life.
With a maximum speed of 3,000 rpm, it balances durability and efficiency for industrial use.

6319-2ZJEM Bearing operates smoothly in temperatures ranging from -30° to 120°C.
Its ABEC 1 tolerance class ensures consistent performance for general applications.

Application

Common Applications of 6319-2ZJEM Bearing
6319-2ZJEM Bearing is widely used in industrial machinery, such as pumps and electric motors, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 6319-2ZJEM Bearing is often found in wheel hubs and transmissions, providing reliable radial load support. Its ABEC 1 tolerance makes it suitable for standard precision requirements.

For automation systems, 6319-2ZJEM Bearing works well in robotic arms and conveyor belts, thanks to its smooth operation. The metric sizing ensures compatibility with a variety of equipment.

In household appliances like washing machines, 6319-2ZJEM Bearing offers quiet and efficient performance. The shielded seals help extend its lifespan by reducing dust and moisture ingress.
