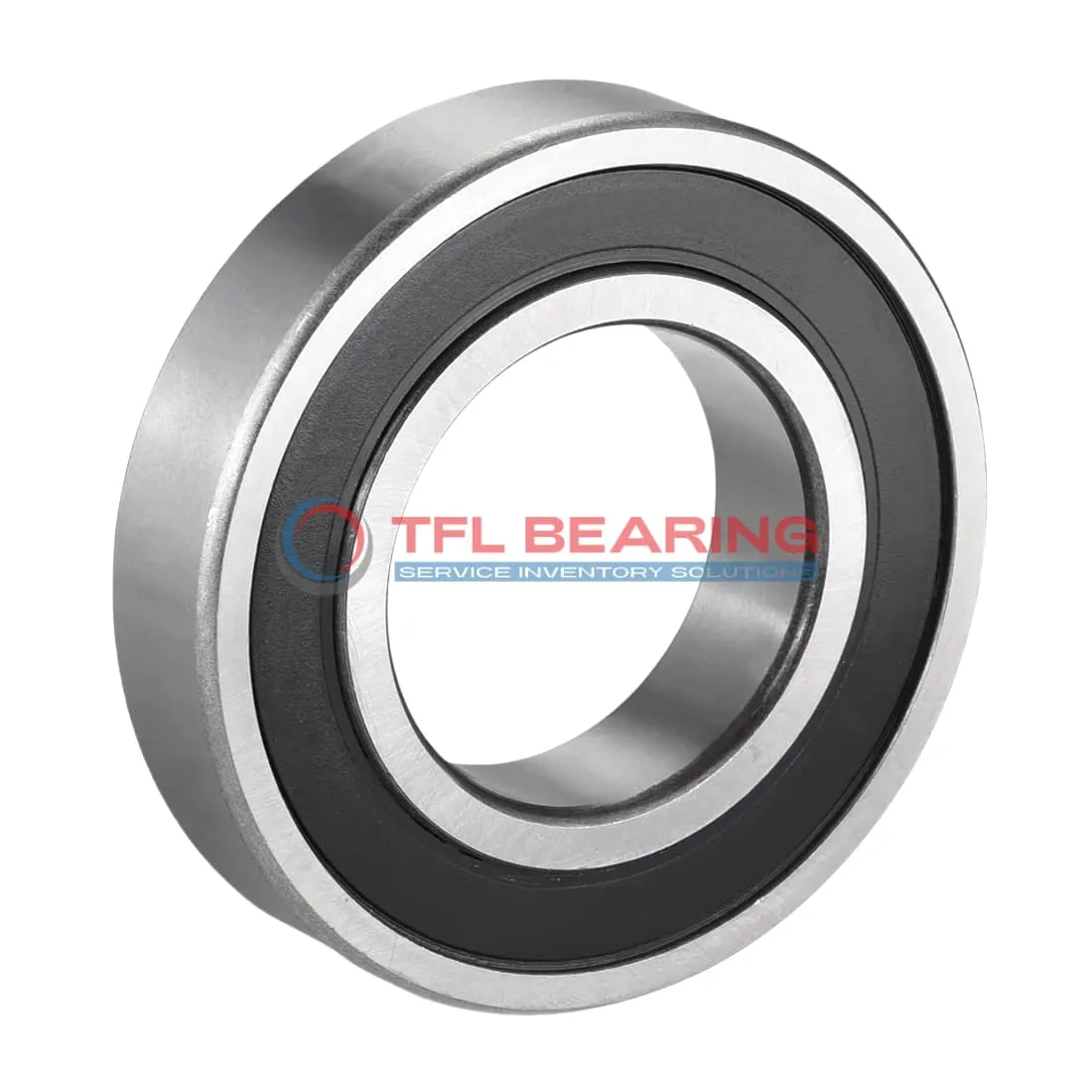

Single Row Deep Groove Ball Bearings 6319-2RS1

Single Row Deep Groove Ball Bearings 6319-2RS1

The 6319-2RS1 is a sealed single-row deep groove ball bearing with a 95mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 35745 lbf and operates smoothly at speeds up to 2200 RPM.

Its sealed design keeps grease in and dirt out, reducing maintenance needs, while the stainless steel cage ensures durability. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Perfect for industrial machinery or pumps where radial loads and contamination resistance are key.

Weighing 5.85kg, it’s a robust choice for heavy-duty applications. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6319-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 45 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 35745 lbf
  • Static Radial Load 26527 lbf
  • Max Speed 2200 rpm
  • Weight 5.85 kg
  • price（$） 81.612
Single Row Deep Groove Ball Bearings 6319-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose 6319-2RS1 Bearing for Precision Tasks?

6319-2RS1 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

The grease lubrication reduces friction, allowing smooth operation even at high speeds.
With a dynamic radial load capacity of 35,745 lbf, it handles demanding industrial tasks with ease.

6319-2RS1 Bearing operates within a temperature range of -30° to 120°C, suitable for varied environments.
Its P6 tolerance class guarantees precision, making it ideal for applications requiring tight tolerances.

The stainless steel cage maintains ball alignment, extending the bearing’s service life.
At 2,200 rpm maximum speed, it balances performance and longevity in heavy-duty machinery.

Application

Industrial Uses of 6319-2RS1 Bearing
6319-2RS1 Bearing is commonly used in heavy machinery like industrial pumps and electric motors, where its sealed design keeps contaminants out. The chrome steel construction ensures it handles radial loads efficiently, even in demanding environments.

Where Is 6319-2RS1 Bearing Used?
You’ll often find 6319-2RS1 Bearing in conveyor systems and agricultural equipment, thanks to its robust build and grease lubrication. Its P6 tolerance class makes it suitable for applications requiring precise alignment and smooth operation.

Built for Heavy-Duty Use: 6319-2RS1 Bearing
6319-2RS1 Bearing excels in construction equipment, where its high dynamic radial load capacity supports heavy loads. The stainless steel cage adds durability, making it a reliable choice for long-term use.

Automotive vs Industrial: Applications of 6319-2RS1 Bearing
In automotive applications, 6319-2RS1 Bearing is used in wheel hubs and transmissions, offering reliable performance. For industrial settings, it’s ideal for gearboxes and fans, where its sealed design reduces maintenance needs.

Practical Applications of 6319-2RS1 Bearing
6319-2RS1 Bearing works well in HVAC systems, providing quiet and efficient operation. Its wide temperature range makes it adaptable to both hot and cold environments, ensuring consistent performance.
