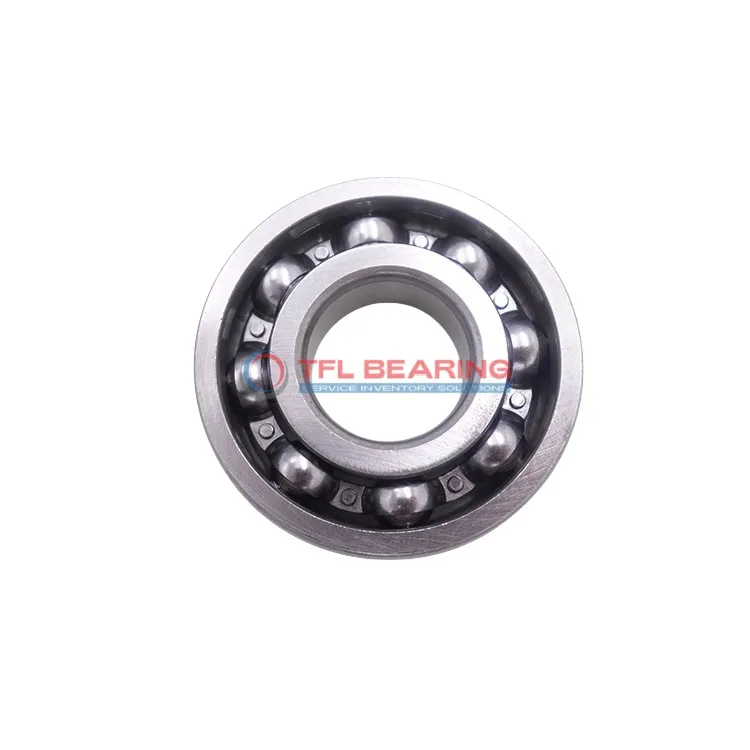

Single Row Deep Groove Ball Bearings 6318 M

Single Row Deep Groove Ball Bearings 6318 M

The 6318 M is a single-row deep groove ball bearing with a 90mm bore and 190mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 33946 lbf and operates smoothly at speeds reaching 7000 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for radial load applications like electric motors or pumps.

Weighing 6.08kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe usage.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6318 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 190 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 43 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 33946 lbf
  • Static Radial Load 24279 lbf
  • Max Speed 7000 rpm
  • Weight 6.08 kg
Single Row Deep Groove Ball Bearings 6318 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6318 M Bearing

6318 M Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 33946 lbf, making it suitable for heavy-duty applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 7,000 rpm, it delivers reliable performance in various conditions.

6318 M Bearing operates efficiently within a temperature range of -30° to 120°C.
Its open design allows for easy maintenance and lubrication, extending its service life.

The precision P6 tolerance class ensures consistent performance in demanding environments.
This makes 6318 M Bearing a dependable choice for industrial applications.

Application

Industrial Uses of 6318 M Bearing
The 6318 M Bearing is commonly used in heavy machinery like industrial pumps and electric motors, where its deep groove design handles radial loads efficiently. Its chrome steel construction ensures durability in demanding environments.

How Does 6318 M Bearing Improve Performance?
In automotive applications, 6318 M Bearing supports components like wheel hubs and transmissions, providing smooth rotation under high loads. The P6 tolerance class offers precision for reliable performance.

Built for Heavy-Duty Use: 6318 M Bearing
For automation systems, 6318 M Bearing is ideal for robotic arms and conveyor belts, thanks to its robust stainless steel cage. The open seal design allows for easy lubrication and maintenance.

Medical vs Industrial: Where 6318 M Bearing Excels
While 6318 M Bearing is versatile in industrial settings, it also finds use in medical imaging devices where consistent performance is key. Its temperature range makes it suitable for various operating conditions.

Practical Applications of 6318 M Bearing
In consumer electronics like large fans or printers, 6318 M Bearing ensures quiet and efficient operation. The metric sizing makes it compatible with a wide range of equipment.
