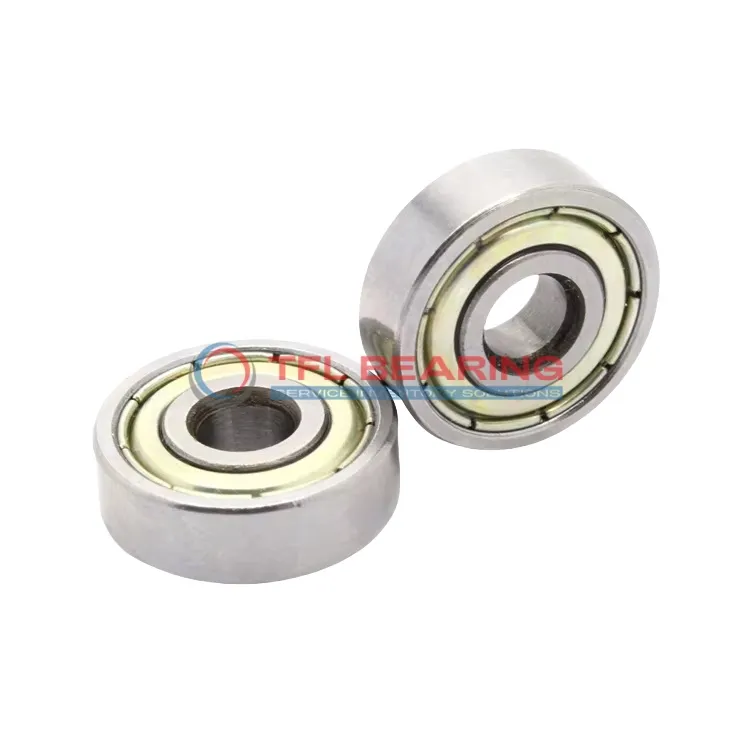

Single Row Deep Groove Ball Bearings 6318-2Z/C3GJN

Single Row Deep Groove Ball Bearings 6318-2Z/C3GJN

The 6318-2Z/C3GJN is a single-row deep groove ball bearing with a 90mm bore and 190mm outer diameter, built from sturdy chrome steel. It manages radial loads up to 32148 lbf and operates smoothly at speeds up to 3600 RPM.

Its shielded design keeps dirt out while maintaining easy access for lubrication. The chrome steel cage adds durability, and the C3 radial clearance allows for thermal expansion in demanding conditions.

This bearing works well in temperatures from -30°C to 120°C, making it suitable for industrial machinery or heavy-duty equipment. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 4.92kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6318-2Z/C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 190 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 43 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 32148 lbf
  • Static Radial Load 24055 lbf
  • Max Speed 3600 rpm
  • Weight 4920 g
  • price（$） 73.908
Single Row Deep Groove Ball Bearings 6318-2Z/C3GJN dimension drawing
Download DWG Download PDF

Features

How Does 6318-2Z/C3GJN Bearing Reduce Friction?

6318-2Z/C3GJN Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The shielded construction helps keep contaminants out while maintaining low friction during operation.

With chrome steel rings and balls, 6318-2Z/C3GJN Bearing offers reliable performance under dynamic loads up to 32,148 lbf.
Its C3 radial clearance ensures consistent operation even with thermal expansion in varying temperatures.

6318-2Z/C3GJN Bearing works efficiently in temperatures ranging from -30°C to 120°C.
The balanced design allows speeds up to 3,600 rpm while maintaining stability.

Engineered for durability, 6318-2Z/C3GJN Bearing requires minimal maintenance over its long service life.
The standardised metric dimensions make replacement straightforward when needed.

Application

Industrial Uses of 6318-2Z/C3GJN Bearing
6318-2Z/C3GJN Bearing is commonly used in heavy machinery like pumps and compressors, where its shielded design helps keep contaminants out. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

Where Is 6318-2Z/C3GJN Bearing Used?
You’ll often find 6318-2Z/C3GJN Bearing in agricultural equipment, such as tractors and harvesters, thanks to its robust chrome steel construction. Its ability to handle high radial loads makes it reliable for demanding field conditions.

Built for Heavy-Duty Use: 6318-2Z/C3GJN Bearing
6318-2Z/C3GJN Bearing works well in conveyor systems, where its single-row design simplifies maintenance. The metric sizing ensures compatibility with a wide range of industrial equipment across different regions.

Automotive vs Industrial: Applications of 6318-2Z/C3GJN Bearing
In automotive applications, 6318-2Z/C3GJN Bearing supports components like wheel hubs, offering durability under radial loads. Industrial uses include gearboxes, where its temperature range suits varied operating environments.

Essential Roles of 6318-2Z/C3GJN Bearing
6318-2Z/C3GJN Bearing is a go-to for electric motors, providing stable performance with its shielded protection. The chrome steel cage enhances longevity, making it a cost-effective choice for continuous operation.
